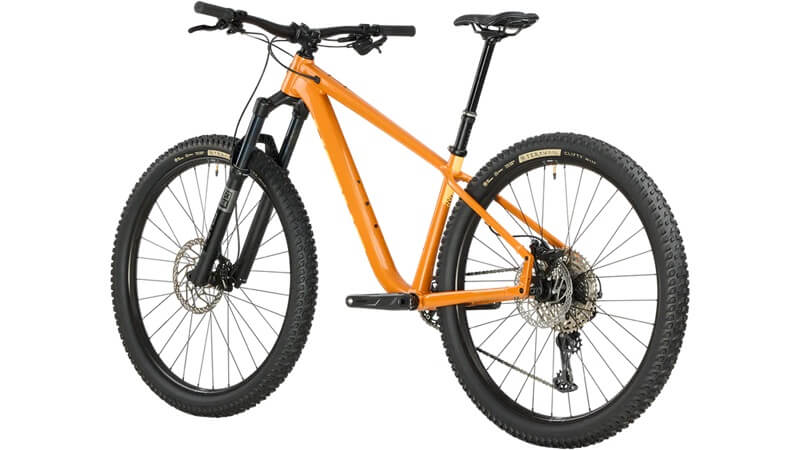

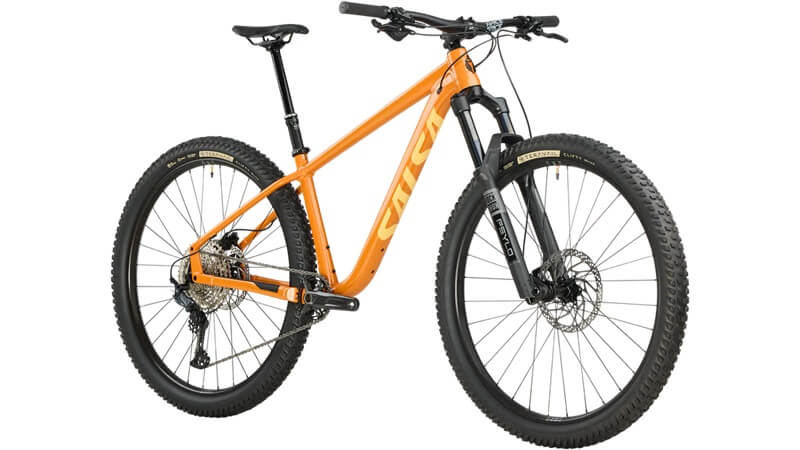

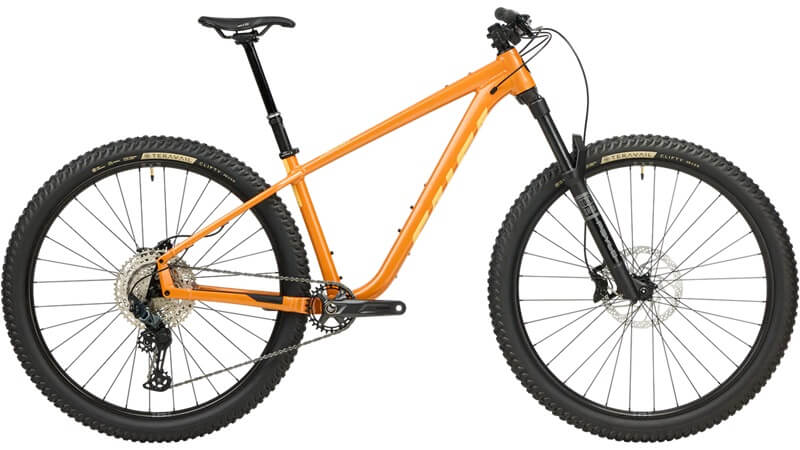

TIMBERJACK SLX 29
- 商品名
- TIMBERJACK SLX 29
- 価格
- 税込￥308,000
- サイズ
- S,M,L
- カラー
- Terracotta Orange
- カテゴリー
- 完成車
Build Kit
Frame Timberjack Alloy V2
Color Terracotta Orange
Fork RockShox Psylo Silver RC, 140mm, 44mm offset
Components
Headset FSA Orbit 1.5E ACB
Seatpost TranzX YSI05 RAD+, Shimano MT500 lever, 30 mm travel adj
Stem Salsa Guide Trail
Grips/Bar Tape Salsa File Tread
Saddle WTB Solano Medium
Handlebar Race Face Chester 35
Drivetrain
Rear Derailleur Shimano SLX M7100 SGS
Cassette Shimano Deore M6100-12, 10–51t, 12-speed
Chain Shimano Deore M6100
Crankset Shimano MT510, 30t
Shifter Shimano Deore M6100 I-SPEC EV
Brake Levers Shimano MT420 4-piston brakes
Rotors Shimano RT30 rotors (Center Lock, 203mm front, 180 mm rear)
Wheels
Front Wheel Shimano MT400-B 15 x 110 mm hub, WTB ST i30 32h 29″ rim
Rear Wheel Shimano MT410-B Micro Spline 12 x 148 mm hub, WTB ST i30 32h 29″ rim
Front Tire
Teravail Clifty 29 x 2.5″, Durable casing. Tubeless accessorites: WTB TCS Rim Strip, tubeless tape, valves, and 8oz tire sealant included
Rear Tire
Teravail Clifty 29 x 2.5″, Durable casing. Tubeless accessorites: WTB TCS Rim Strip, tubeless tape, valves, and 8oz tire sealant included
Weight
Complete Bike
32 lbs 14 oz (size Medium)
Frame Specs
- Design Wheel/Tire Sizes Tire Size Range for 622/29″ Wheels: 53–66 mm (2.1–2.6″)
- Alternate Wheel/Tire Sizes Tire Size Range for 584/27.5″ Wheels: 71 mm (2.8″)
- Max Tire Outer Diameter 760.5 mm (29.95″)
- Suspension Fork Length (Travel)511–563 mm (100–150 mm travel)
- Rigid Fork Length 483–501 mm
- Fork Offset 42–51 mm
- Rear Spacing 148 mm
- Rear Axle Size M12 x 180L, TP = 1.5, TL = 20
- Rear Brake (Rotor)IS mount (180 mm max)
- Headset – UpperZS44
- Headset – LowerZS56
- Seatpost 30.9 mm
- Dropper Post CompatibleYes (internal)
- Seatpost Clamp 35 mm
- Front Derailleur ClampNOT COMPATIBLE
- Derailluer HangerAlternator 2.0 Swing Plate
- Bottom Bracket 73 mm BSA
- Crankset (Max Ring) 52 mm Boost chainline 1x only (34t)
- Accessory MountsAccessory Mounts: Yes, one pair; Downtube Accessory Mounts: Yes, one pair; Rack Mounts: Yes, uses Alternator 2.0 plates, requires Salsa Rack-Lock; TopTube Mounts: Yes, compatible with Salsa EXP Series Direct Mount Top Tube Bag
- Bottle Mounts XS = 1, SM–XL = 2
- Front Fender MountsNOT COMPATIBLE
- Rear Fender MountsNOT COMPATIBLE

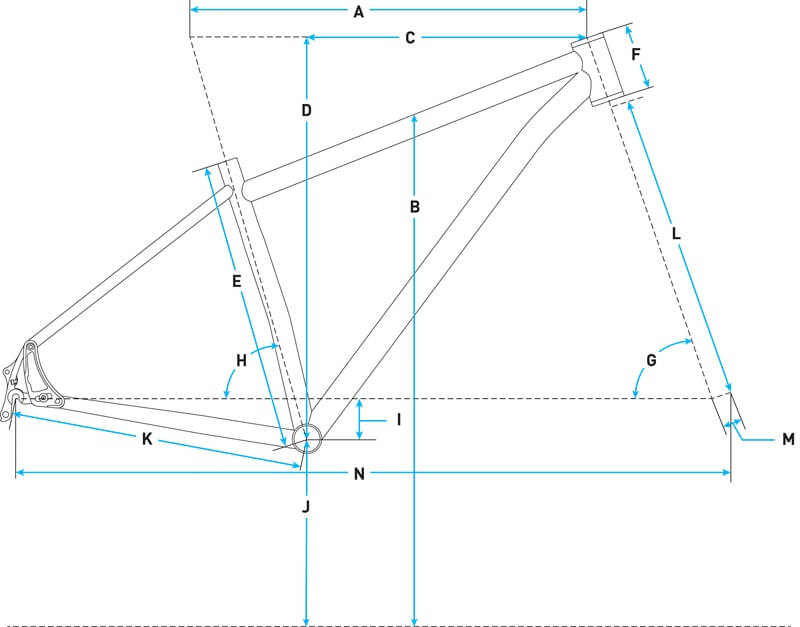

| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| A. Effective Top Tube | 570.0 | 594.1 | 615.3 | 639.0 | 659.3 |
| B. Stand Over | 702.9 | 722.6 | 742.1 | 772.1 | 792.9 |
| C. Reach | 410.7 | 433.6 | 453.6 | 475.5 | 492.6 |
| D. Stack | 599.0 | 599.0 | 607.4 | 613.5 | 625.5 |
| E. Total Seat Tube Length | 342.9 | 370.0 | 395.0 | 432.0 | 457.2 |
| F. Headtube Length | 100.0 | 100.0 | 105.0 | 115.0 | 125.0 |
| G. Headtube Angle | 66.4 | 66.4 | 66.4 | 66.4 | 66.4 |
| H. Seat Tube Angle | 75.1 | 75.1 | 75.1 | 75.1 | 75.1 |
| I. BB Drop | 56.6 | 56.6 | 56.6 | 56.6 | 56.6 |
| K. Chainstay Length | 420.0 | 420.0 | 420.0 | 420.0 | 420.0 |
| L. Fork Length Axle to Crown | 543.0 | 543.0 | 543.0 | 543.0 | 543.0 |
| M. Fork Offset | 44.0 | 44.0 | 44.0 | 44.0 | 44.0 |
| N. Wheelbase | 1120.0 | 1142.5 | 1164.5 | 1180.5 | 1211.7 |
| Crank Arm Length | 165.0 | 165.0 | 170.0 | 170.0 | 180.0 |
| Handlebar Width | 780.0 | 780.0 | 780.0 | 780.0 | 780.0 |
| Recommended Rider Height | 157 – 163cm | 160– 175cm | 173 – 183cm | 180 – 191cm | 188cm |
| Stem Length | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 |
