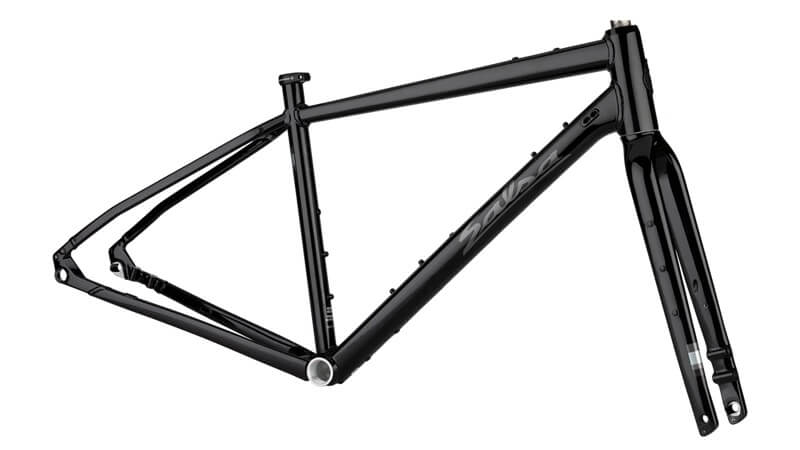

JOURNEYER FRAME SET

SPEC

Frame　Journeyer Drop-Bar Thru-Axle

Color　Black

Fork　Waxwing

Headset　FSA NO.42 ACB IS-2

Seatpost Clamp　Salsa Lip-Lock Seatpost Collar, 32.0 mm

Rear Derailleur　SRAM UDH derailleur hanger

Front Axle

Salsa Deadbolt UL thru-axle 12 x 120 mm, TP = 1.5, TL = 12 mm

Rear Axle

Salsa Deadbolt UL thru-axle 12 x 169 mm, TP= 1.0, TL = 20 mm

Frame

5 lb (56 cm frame w/headset, UDH dropout, and axles)

Design Wheel/Tire Sizes　700c x 38 mm
Alternate Wheel/Tire Sizes　700c x 32–50 mm; 650b x 47–50 mm
Rigid Fork Length　405 mm axle-to-crown
Fork Offset　50 mm

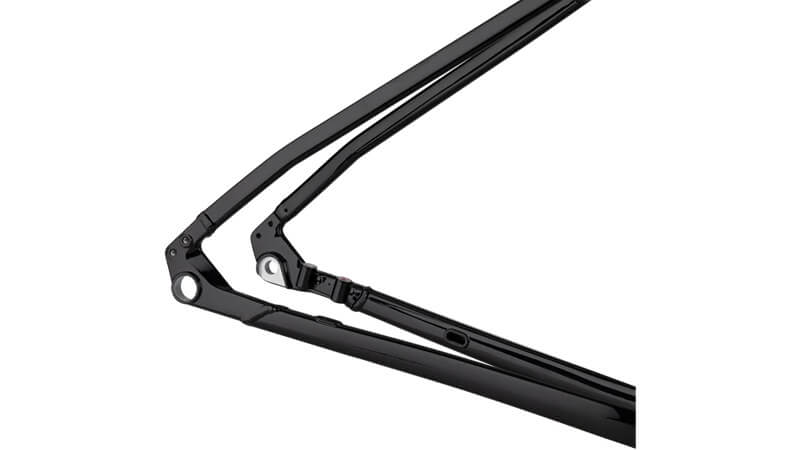

Rear Spacing　142 mm
Rear Axle Size　M12 x 169 TP = 1.0, TL = 14 mm thru-axle
Rear Brake (Rotor)Flat mount 140 frame standard (160 mm max.), 20 mm thickness, 27 mm bolt length
Front Brake (Rotor)Flat mount 160 frame standard (180 mm max.), 35 mm thickness, 42 mm bolt length
Headset – UpperIS41
Headset – LowerIS52
Front Spacing　100 mm
Front Axle Size　M12 x 120 TP = 1.5, TL = 12 mm thru-axle
Crown Race　40 mm
Stem Clamp　28.6 mm / 1 1/8″
Seatpost 27.2 mm
Dropper Post CompatibleYes, internal

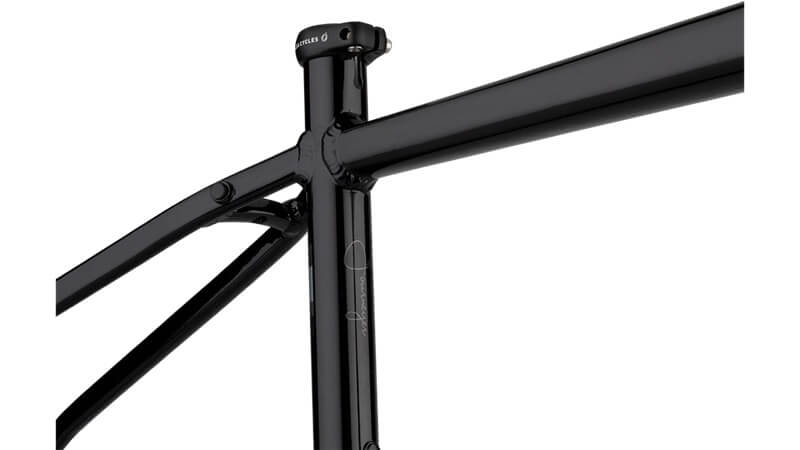

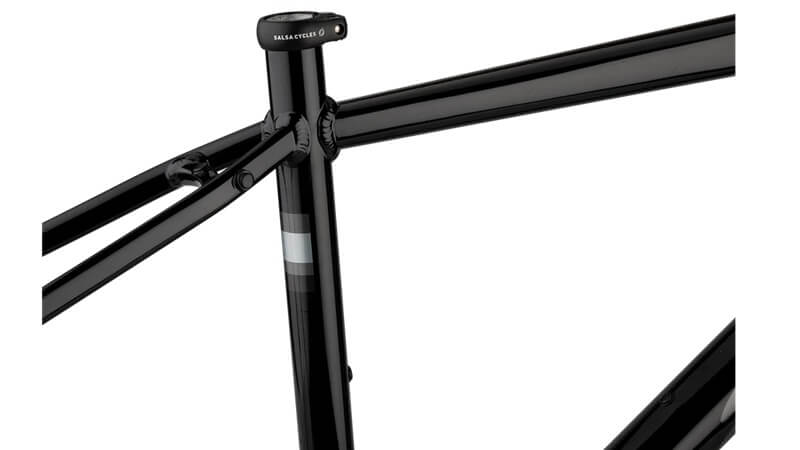

Seatpost Clamp　32.0 mm
Front Derailleur Clamp　31.8 mm OD, bottom pull
Front Derailleur Type2x, bottom swing
Derailluer HangerSRAM UDH

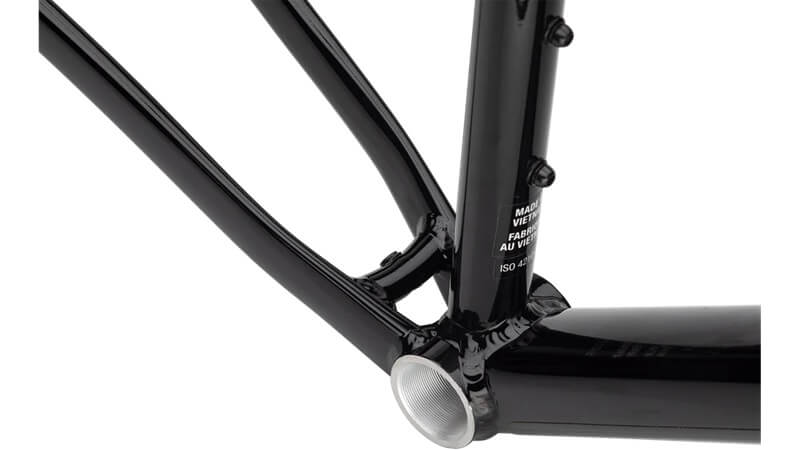

Bottom Bracket　68 mm BSA
Crankset (Max Ring)1x crankset: 42t max.; 2x crankset: 48/33t max.

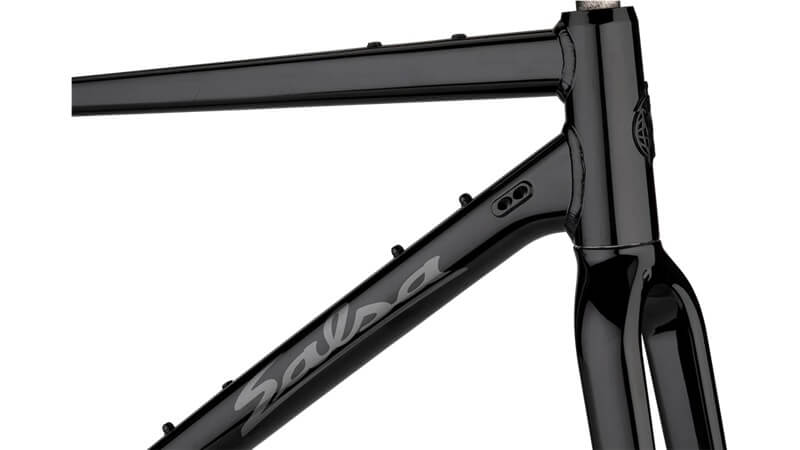

Accessory MountsDowntube Accessory Mounts Yes, 1; TopTube Mounts: Yes; Rack Mounts: Rear: yes / Front: yes, low rider; Three-Pack Mounts: 47–53 cm frames: 1 on down tube; 55–60 cm frames: 1 on down tube + 1 on seat tube; All sizes: one per fork leg
Bottle Mounts49 cm frame: 1 in main triangle; 51–56 cm frames: 2 in main triangle; 57–60 cm frames: 3 in main triangle
Front Fender MountsYes
Rear Fender MountsYes
