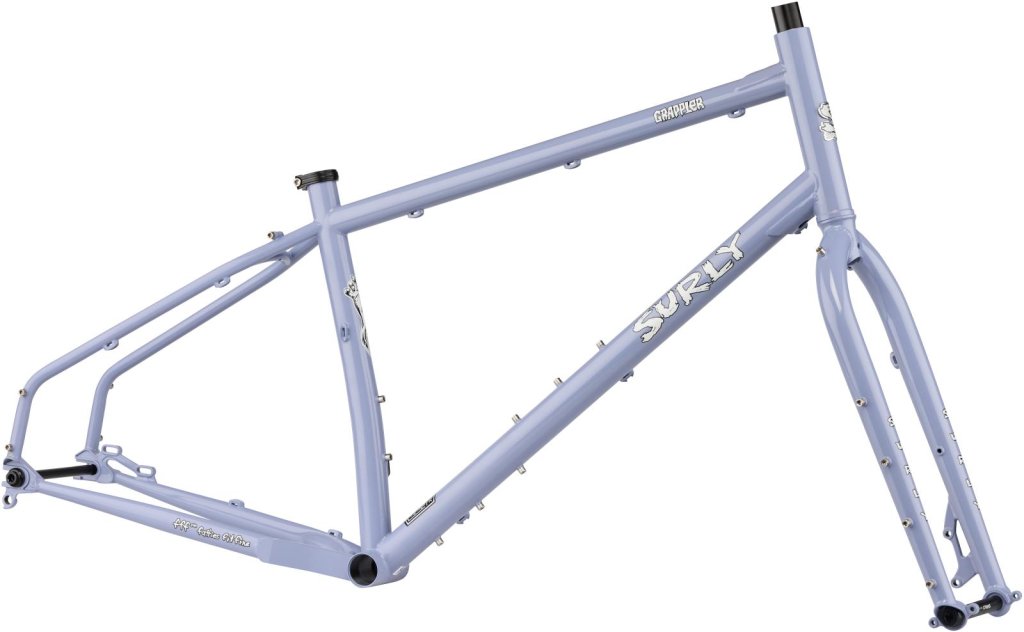

Grappler Frameset – Purple Dust Bunny
- 商品名
- Grappler Frameset – Purple Dust Bunny
- 価格
- 税込¥140,800 (フレームセット)
- サイズ
- XS,S,M,(L,XL)
- カラー
- Purple Dust Bunny
- カテゴリー
- フレーム
ドロップバーのために仕立てたトレイルバイク
長年、オフロード好きたちはトレイルバイクにドロップバーを“魔改造”的に取り付けてきました。
その欲求を、より確かなかたちで満たすために私たちは Grappler を設計しました。
安定して快適なドロップバーポジションを最優先に考え、トレイル対応のジオメトリーによって、舗装路と未舗装路が混ざる路面でも生き生きとした走りを実現しています。
太めのタイヤに対応し、日常の荷物から一泊装備まで積める多数のマウントを装備。
Grappler は、あなたとその一式を、草に覆われた林道の奥へと連れ出し、五感を刺激する体験へ導きます。
怖がることはありません。たぶん。
長年、オフロード好きたちはトレイルバイクにドロップバーを“魔改造”的に取り付けてきました。
その欲求を、より確かなかたちで満たすために私たちは Grappler を設計しました。
安定して快適なドロップバーポジションを最優先に考え、トレイル対応のジオメトリーによって、舗装路と未舗装路が混ざる路面でも生き生きとした走りを実現しています。
太めのタイヤに対応し、日常の荷物から一泊装備まで積める多数のマウントを装備。
Grappler は、あなたとその一式を、草に覆われた林道の奥へと連れ出し、五感を刺激する体験へ導きます。
怖がることはありません。たぶん。
SPEC
Build Kit
Frameset
Frame

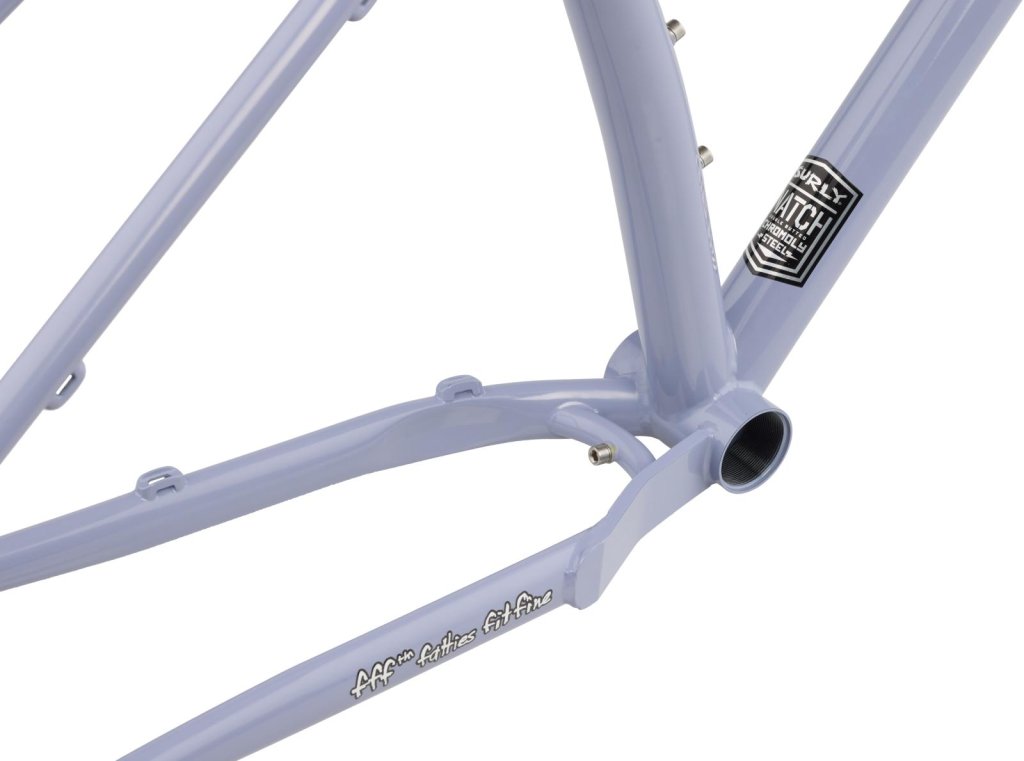

Surly Grappler – 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Color
Purple Dust Bunny
Fork
Surly Dinner Fork – 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Components
Seatpost Clamp
Surly Stainless 33.1
Frame Specs
- Design Wheel/Tire Sizes27.5 x 2.5″
- Alternate Wheel/Tire Sizes29 x 2.2″
- Frame Construction100% Surly Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
- Fork Construction100% Surly Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
- Rigid Fork Length420mm
- Fork Offset50mm
- Axle to Crown420mm

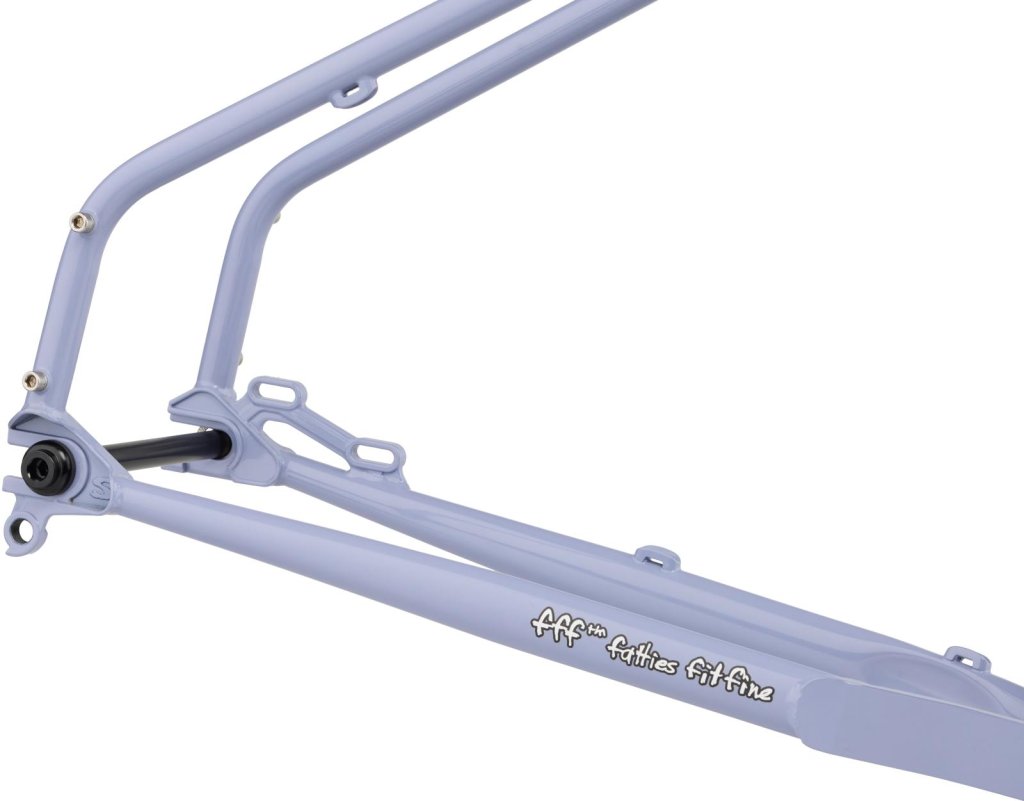

- Rear Spacing“Gnot-Boost” 145mm
12 x 142mm or 12 x 148mm (Surly axle included)
10 x 135mm with Surly 10/12 Adapter Washers (not included) - Rear Axle Size12 x 148mm (Surly axle included)
- Rear Brake (Rotor)Disc – 51mm I.S. (203mm max rotor)
- Front Brake (Rotor)Disc – 51mm I.S. (203mm max rotor)
- Headset – UpperEC34/28.6
- Headset – LowerEC34/30
- Front Axle Size15 x 110mm (Surly axle included)
- Steerer TubeØ28.6mm
- Crown RaceØ30mm (1-1/8″)
- Stem ClampØ28.6mm
- SeatpostØ30.9mm
- Dropper Post CompatibleYes
- Seatpost Clamp33.1mm
- Front Derailleur ClampØ34.9mm
- Front Derailleur TypeHigh direct mount top-pull (Ø34.9mm) 26mm offset adapter (not included) for 142 or 135mm rear hub spacing 29mm offset adapter (not included) for 148mm rear hub spacing
- Bottom Bracket73mm BSA, threaded
- Crankset (Max Ring)1x (mtn): 36T / 2x (mtn): 36/26T / 1x (Boost): 38T / 2x (Boost): 39/32T
- Bottle Mounts3-pack mounts on upper and lower downtube; seat tube bottle mounts on frame sizes S–XL
- Fork Mounts3-pack mounts on each fork blade, upper and lower threaded rack mounts
- Front Fender MountsYes
- Rear Fender MountsYes
※製品仕様は予告なく変更される場合があります。

| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| A. Effective Top Tube | 560.0 | 590.0 | 610.0 | 640.0 | 660.0 |
| B. Stand Over | 719.0 | 762.0 | 795.0 | 829.0 | 862.0 |
| C. Reach | 381.0 | 405.0 | 420.0 | 444.0 | 458.0 |
| D. Stack | 585.0 | 604.0 | 623.0 | 641.0 | 660.0 |
| E. Total Seat Tube Length | 316.0 | 386.0 | 437.2 | 488.0 | 539.0 |
| F. Headtube Length | 160.0 | 180.0 | 200.0 | 220.0 | 240.0 |
| G. Headtube Angle | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 |
| H. Seat Tube Angle | 73.0 | 73.0 | 73.0 | 73.0 | 73.0 |
| I. BB Drop | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 |
| K. Chainstay Length | 425.0 | 425.0 | 425.0 | 425.0 | 425.0 |
| L. Fork Length Axle to Crown | 420.0 | 420.0 | 420.0 | 420.0 | 420.0 |
| M. Fork Offset | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 |
| N. Wheelbase | 1057.0 | 1088.0 | 1109.0 | 1140.0 | 1162.0 |
| Crank Arm Length | |||||
| Handlebar Width | |||||
| Recommended Rider Height | 142.0 – 151.0 | 152.0 – 164.0 | 165.0 – 174.0 | 175.0 – 184.0 | 185.0 |
