BIKES

MTB

CASSIDY CARBON SLX

QUICK VIEW

CASSIDY CARBON SLX

税込￥764,500

BUILD KIT
FRAMESET
Frame	Cassidy Carbon V1
Fork	RockShox ZEB Select+ RC, 180 mm, 44 mm offset
Color	Orange
Rear Shock	RockShox Super Deluxe Select+
DRIVETRAIN
Front Derailleur	N/A
Rear Derailleur	Shimano SLX M8100 SGS
Cassette	Shimano SLX M7130, 30t
Chain	Shimano Deore M6100
Crankset	Shimano SLX M7130, 30t
Shifter	Shimano SLX M7100
Brakes and Rotors	Shimano Deore M6120 four-piston, Shimano RT64, Center Lock (203 mm)
COMPONENTS
Headset	Cane Creek 40 Series, ZS44/ZS56
Stem	Salsa Guide Trail 50 mm
Handlebar	Race Face Aeffect R 35
Grips/Bar Tape	Salsa File Tread Lock-on
Seatpost	TranzX YSI05, Shimano MT500 lever, 30 mm travel adjust (SM 125 x 409 mm, MD 150 x 459 mm, LG 170 x 499 mm, XL 200 x 559 mm)
Saddle	WTB Volt 250 Steel, 250 x 135
WHEELS
Front Wheel	Shimano SLX M7110 15 x 110 mm hub, WTB KOM Trail i30 29″ rim
Rear Wheel	Shimano SLX M7130 12 x 157 mm hub, WTB KOM Trail i30 29″ rim
Tires	Maxxis Assegai 29 x 2.5″ front, Maxxis Dissector 29 x 2.4″ rear, Maxx Grip, DD, TR
WEIGHT
Complete Bike Weight	34 lbs 11 oz for Medium

*Specification and pricing subject to change without notice.

FRAME SPECS
Design Wheel/Tire Sizes	29 x 1.9–2.6
Alternate Wheel/Tire Sizes	27.5 x 2.8–3.0″
Suspension Fork Length (Travel)	170–180 mm
Fork Offset	42–51 mm
Rear Shock Size	230 x 62.5 mm
Shock Mount, Fore	Ø8 x 30mm
Shock Mount, Aft	No Bushing, Ø15
Pivot Kit(s)	1215, 1585, 1587, 1589, 1590, 1592, 1594
Bearings	17287 (Qty 4), 6801 (Qty 6)
Headset, Upper	ZS44
Headset, Lower	ZS56
Seatpost	30.9 mm
Max Post Insertion	SM = 195 mm, MD = 220 mm, LG = 245 mm, XL = 270 mm
Seatpost Collar	35.4 mm
Dropper Compatible (Routing)	Yes (internal)
Front Derailleur Clamp	N/A
Front Derailleur Type	N/A
Bottom Bracket	73 mm BSA, threaded
Crankset (Max Ring)	Super Boost 157, 55–57 mm chainline (34t)
Rear Brake (Rotor)	74 mm post mount (180–203 mm)
Rear Spacing	157 x 12 mm TA
Rear Axle Size	12 x 197 mm, TP = 1.75, TL = 20 mm
Derailleur Hanger	FS2322
Front Triangle Bottle Mounts	1
Top Tube Mounts	Yes, compatible with Salsa EXP Series Direct Mount Top Tube Bag.

BLACKTHORN CARBON SLX

QUICK VIEW

BLACKTHORN CARBON SLX

税込￥767,800

BUILD KIT
FRAMESET
Frame	Blackthorn Carbon V1
Fork	RockShox Lyrik Select+ RC, 160 mm, 42 mm offset
Color	Red
Rear Shock	Fox Float X Performance
DRIVETRAIN
Front Derailleur	N/A
Rear Derailleur	Shimano SLX M7100 SGS
Cassette	Shimano Deore M6100, 10–51t, 12-speed
Chain	Shimano Deore M6100
Crankset	Shimano SLX M7130, 30t
Shifter	Shimano SLX M7100
Brakes and Rotors	Shimano Deore M6120 four-piston, Shimano RT64, Center Lock (203 mm front, 180 mm rear)
COMPONENTS
Headset	Cane Creek 40 Series, ZS44/ZS56
Stem	Salsa Guide Trail 50 mm
Handlebar	Race Face Aeffect R 35, 780 mm width
Grips/Bar Tape	Salsa File Tread Lock-on
Seatpost	TranzX YSI05, Shimano MT500 lever, 30 mm travel adjust (SM 125 x 409 mm, MD 150 x 459 mm, LG 170 x 499 mm, XL 200 x 559 mm)
Saddle	WTB Volt 250 Steel, 250 x 135
WHEELS
Front Wheel	Shimano SLX M7110 15 x 110 hub, WTB KOM Trail i30 29″ rim
Rear Wheel	Shimano SLX M7130 12 x 157 hub, WTB KOM Trail i30 29″ rim
Tires	Maxxis Assegai 29 x 2.5″ front, Maxxis Dissector 29 x 2.4″ rear, Maxx Grip/Maxx Terra, EXO+, TR
WEIGHT
Complete Bike Weight	33 lbs 9 oz for Medium

*Specification and pricing subject to change without notice.

FRAME SPECS
Design Wheel/Tire Sizes	29 x 1.9–2.6
Alternate Wheel/Tire Sizes	27.5 x 2.8–3.0″
Suspension Fork Length (Travel)	140–160 mm
Fork Offset	42–51 mm
Rear Shock Size	210 x 52.5 mm
Shock Mount, Fore	Ø8 x 30mm
Shock Mount, Aft	No Bushing, Ø15
Pivot Kit(s)	1215, 1585, 1587, 1589, 1590, 1592, 1594
Bearings	17287 (Qty 4), 6801 (Qty 6)
Headset, Upper	ZS44
Headset, Lower	ZS56
Seatpost	30.9 mm
Max Post Insertion	SM = 195 mm, MD = 220 mm, LG = 245 mm, XL = 270 mm
Seatpost Collar	35.4 mm
Dropper Compatible (Routing)	Yes (internal)
Front Derailleur Clamp	N/A
Front Derailleur Type	N/A
Bottom Bracket	73 mm BSA, threaded
Crankset (Max Ring)	Super Boost 157, 55–57 mm chainline (34t)
Rear Brake (Rotor)	74 mm post mount (180–203 mm)
Rear Spacing	157 x 12 mm TA
Rear Axle Size	12 x 197 mm, TP = 1.75, TL = 20 mm
Derailleur Hanger	FS2322
Front Triangle Bottle Mounts	1
Top Tube Mounts	Yes, compatible with Salsa EXP Series Direct Mount Top Tube Bag.

BLACKTHORN ALLOY SLX

QUICK VIEW

BLACKTHORN ALLOY SLX

税込￥687,500

BUILD KIT
FRAMESET
Frame	Blackthorn Alloy V1
Fork	RockShox Yari RC, 160 mm, 42 mm offset
Color	Mustard
Rear Shock	RockShox Super Deluxe Select+
DRIVETRAIN
Front Derailleur	N/A
Rear Derailleur	Shimano SLX M7100 SGS
Cassette	Shimano Deore M6100, 10–51t, 12-speed
Chain	Shimano Deore M6100
Crankset	Shimano Deore M6130, 30t
Shifter	Shimano Deore M6100
Brakes and Rotors	Shimano Deore M6120 four-piston,
COMPONENTS
Headset	FSA Orbit 1.5E NO.57E ACB, ZS44/ZS56
Stem	Salsa Guide Trail 50 mm
Handlebar	Race Face Chester 35, 780 mm width
Grips/Bar Tape	Salsa File Tread Lock-on
Seatpost	TranzX YSI05, Shimano MT500 lever, 30 mm travel adjust (SM 125 x 409 mm, MD 150 x 459 mm, LG 170 x 499 mm, XL 200 x 559 mm)
Saddle	WTB Volt 250 Steel, 250 x 135
WHEELS
Front Wheel	Shimano MT400-B 15 x 110 mm hub, WTB ST i30 29″ rim
Rear Wheel	Shimano SLX M7130 12 x 157 mm hub, WTB ST i30 29″ rim
Tires	Maxxis Assegai 29 x 2.5″ front, Maxxis Dissector 29 x 2.4″ rear, Maxx Grip/Maxx Terra, EXO+, TR
WEIGHT
Complete Bike Weight	35 lbs 5 oz for Medium

*Specification and pricing subject to change without notice.

FRAME SPECS
Design Wheel/Tire Sizes	29 x 1.9–2.6
Alternate Wheel/Tire Sizes	27.5 x 2.8–3.0″
Suspension Fork Length (Travel)	140–160 mm
Fork Offset	42–51 mm
Rear Shock Size	210 x 52.5 mm
Shock Mount, Fore	Ø8 x 30mm
Shock Mount, Aft	No Bushing, Ø15
Pivot Kit(s)	1215, 1585, 1587, 1589, 1590, 1592, 1594
Bearings	17287 (Qty 4), 6801 (Qty 6)
Headset, Upper	ZS44
Headset, Lower	ZS56
Seatpost	30.9 mm
Max Post Insertion	SM = 195 mm, MD = 220 mm, LG = 245 mm, XL = 270 mm
Seatpost Collar	35.4 mm
Dropper Compatible (Routing)	Yes (internal)
Front Derailleur Clamp	N/A
Front Derailleur Type	N/A
Bottom Bracket	73 mm BSA, threaded
Crankset (Max Ring)	Super Boost 157, 55–57 mm chainline (34t)
Rear Brake (Rotor)	74 mm post mount (180–203 mm)
Rear Spacing	157 x 12 mm TA
Rear Axle Size	12 x 197 mm, TP = 1.75, TL = 20 mm
Derailleur Hanger	FS2322
Front Triangle Bottle Mounts	1
Top Tube Mounts	Yes, compatible with Salsa EXP Series Direct Mount Top Tube Bag.

HORSETHIEF SLX

QUICK VIEW

HORSETHIEF SLX

税込￥580,800

FRAMESET
Frame	Horsethief Alloy V3
Fork	RockShox Revelation RC, 140 mm, 42 mm offset
Color	Blue
Rear Shock	Fox Float DPS Performance
DRIVETRAIN
Front Derailleur	N/A
Rear Derailleur	Shimano SLX M7100 SGS
Cassette	Shimano Deore M6100, 10–51t, 12-speed -OR- Ruby, 11–50t, HG, steel spider
Chain	Shimano Deore M6100
Crankset	Shimano Deore M6130, 30t -OR- FSA Comet MegaExo, 30t
Shifter	Shimano Deore M6100
Brakes and Rotors	Shimano Deore M6120 four-piston -OR- Tektro HD-M745 four-piston, Shimano RT64 (Center Lock, 180 mm)
COMPONENTS
Headset	FSA Orbit IS-2 ACB IS41/IS52
Stem	Salsa Guide Trail 50 mm
Handlebar	Race Face Chester 35
Grips/Bar Tape	Salsa File Tread Lock-on
Seatpost	TranzX YSI05, Shimano MT500 lever, 30 mm travel adj, SM: 125 x 409 mm, MD: 150 x 459 mm, LG: 170 x 499 mm, XL: 200 x 559 mm
Saddle	WTB Volt 250 Steel SL, 250 x 135
WHEELS
Front Wheel	Shimano MT400-B 15 x 110 mm hub, WTB ST i30 29″ rim
Rear Wheel	Shimano SLX M7130 12 x 157 mm hub, WTB ST i30 29″ rim -OR- WTB Frequency Comp 157 x 12 mm Center Lock HG hub, WTB ST i30 29″ rim
Tires	Maxxis DHF 29 x 2.5″ front, Maxxis DHR II 29 x 2.4″ rear; EXO, TR
WEIGHT
Complete Bike Weight	33 lb 12 oz for Medium

FRAME SPECS

Tire Size Range* for 622/29″ Wheels	56–66mm (2.2–2.6″)
Tire Size Range* 584/27.5″ Wheels	70–76mm (2.8–3.0″)
Tire Size Range* 559/26	Not Compatible
Maximum Wheel/Tire Diameter**	Ø754mm (29.7″)
Minimum Wheel/Tire Diameter***	Ø728mm (28.5″)
Suspension Fork Length (Travel)	531–551mm (120–140mm)
Fork Offset	42–51mm
Rear Shock Size	190 x 45mm
Shock Mount, Fore	Carbon: 08x40mm, Aluminum: 08x30mm
Shock Mount, Aft	Ø8 x 12.5mm (included)
Pivot Kit(s)	Refer to Suspension Frame Service Instructions
Bearings	17287 (qty 4), 6801 (qty 6)
Headset, Upper	IS41
Headset, Lower	IS52
Seatpost	Ø30.9mm
Seat Collar	Carbon: 35.4mm, Aluminum: 35.0mm
Dropper Compatible (Routing)	Yes, internal/stealth
Bottom Bracket	73mm BSA, threaded. Carbon bike requires ISCG cover ring or ISCG mounting bracket in place of 2.5mm DS BB Spacer
Crankset (Max Ring)	Super Boost 157 55–57mm chainline only 1x: 32t max
Rear Brake (Rotor)	74mm post (Ø160–180mm)
Rear Spacing	157 x 12mm thru-axle
Rear Axle Size	Ø12 x 197mm, TP = 1.75, TL = 20
Derailleur Hanger	FS2322
F/T Bottle Mounts	2
Accessory Mounts	Top tube bag mounts

RANGEFINDER DEORE 12 29

QUICK VIEW

RANGEFINDER DEORE 11 29

QUICK VIEW

RANGEFINDER DEORE 11 27.5+

QUICK VIEW

RANGEFINDER DEORE 11 27.5+

税込￥228,800

BUILD KIT
FRAMESET
Frame	Rangefinder Aluminum
Fork	SR Suntour XCR32 Boost, Air, LOR, DS, 120 mm OR RST Aerial 110-15, Air, MLC, 120 mm
Color	Dark Gray
Rear Shock	N/A
DRIVETRAIN
Front Derailleur	N/A
Rear Derailleur	Shimano Deore M5100 SGS
Cassette	Shimano Deore M5100 11–51t, 11-speed
Chain	Shimano HG601
Crankset	FSA Alpha Drive, 30t, FSA 124.5 mm bottom bracket

Shifter	Shimano Deore M5100

Brakes	Shimano MT200 OR Promax DSK-925

Rotors	Shimano RT10 Center Lock rotors (160 mm)
COMPONENTS
Headset	FSA Orbit NO.57B 1.5 ZS
Stem	Salsa Guide 31.8, 60 mm
Handlebar	Salsa Salt Flat 31.8, 750 mm width XS–SM; Salsa Rustler 31.8, 800 mm width M–XL
Grips	Salsa File Tread
Seatpost	TranzX YSP18PLQ 100 x 361 mm XS–SM; 130 x 425 mm MD–XL
Saddle	WTB Volt Medium, Steel, 142 x 265 mm
WHEELS
Front Wheel	Shimano MT400 Center Lock 15 x 110 mm hub, WTB ST i40 32h 27.5″ rim
Rear Wheel	Shimano MT200 Center Lock 10 x 141 mm QR hub, WTB ST i40 32h 27.5″ rim
Tires	Maxxis Rekon 27.5 x 2.8″, EXO Wire Bead (not tubeless compatible)
WEIGHT
Complete Bike Weight	32 lb 11 oz (with tubes, no pedals) for Medium
*Specification and pricing subject to change without notice.

FRAME SPECS
Design Wheel/Tire Sizes	27.5 x 2.8–3.0
Alternate Wheel/Tire Sizes	29 x 1.9–2.6
Suspension Fork Length (Travel)	100–130 mm
Fork Offset	46 mm
Headset, Upper	ZS44
Headset, Lower	ZS56
Seatpost	30.9 mm
Seatpost Collar	35.0 mm
Dropper Compatible (Routing)	Yes (internal)
Front Derailleur Clamp	N/A
Front Derailleur Type	N/A
Bottom Bracket	73 mm BSA, threaded
Crankset (Max Ring)	Boost 148 52 mm chainline only (32t max)
Rear Brake (Rotor)	74 mm post mount (160–180 mm rotor)
Rear Spacing	141 x 10 mm QR
Derailleur Hanger	FS2361
Rear Rack Mounts	Yes. Salsa Post-Lock seatpost collar required.
Fender Mounts	No
Water Bottle Mounts	2
Downtube Accessory Mounts	1
Top Tube Mounts	Yes, compatible with Salsa EXP Series Top Tube bag.

RANGEFINDER ADVENT X 29

QUICK VIEW

RANGEFINDER ADVENT X 27.5+

QUICK VIEW

TIMBERJACK XT Z2 27.5+

QUICK VIEW

TIMBERJACK XT Z2 27.5+

税込￥459,800

BUILD KIT
FRAMESET
Frame	Timberjack Alloy V2
Fork	Marzocchi Z2, Air, Rail, 130 mm, 44 mm offset
Color	Purple
Rear Shock	N/A
DRIVETRAIN
Front Derailleur	N/A
Rear Derailleur	Shimano XT M8100 SGS
Cassette	Shimano XT M8100-12, 10–51t, 12-speed
Chain	Shimano SLX M7100
Crankset	Shimano SLX M7100, 30t
Shifter	Shimano XT M8100 I-SPEC EV
Brakes and Rotors	Shimano SLX M7120 four-piston, Shimano RT64 Center Lock (180 mm)
COMPONENTS
Headset	FSA Orbit 1.5E ACB
Stem	Salsa Guide Trail
Handlebar	Race Face Chester 35
Grips/Bar Tape	Salsa File Tread
Seatpost	TranzX YSI05 RAD+, Shimano MT500 lever, 30 mm travel adj
Saddle	WTB Volt 250 Steel
WHEELS
Front Wheel	Shimano MT400-B 15 x 110 mm hub, WTB ST i40 32h 27.5″ rim
Rear Wheel	Shimano MT410-B Micro Spline 12 x 148 mm hub, WTB ST i40 32h 27.5″ rim
Tires	Maxxis Minion DHF front, Maxxis Rekon rear, 27.5 x 2.8″, EXO, TR
WEIGHT
Complete Bike Weight	31 lbs 7 oz for Medium

FRAME SPECS
Tire Size Range for 622/29″ Wheels	53–66 mm (2.1–2.6″)
Tire Size Range for 584/27.5″ Wheels	71 mm (2.8″)
Maximum Wheel/Tire Diameter	760.5 mm (29.95″)
Minimum Wheel/Tire Diameter	728 mm (28.6″)
Suspension Fork Length (Travel)	511–563 mm (100–150 mm travel)
Rigid Fork Length	483–501 mm
Fork Offset	42–51 mm
Headset-Upper	ZS44
Headset-Lower	ZS56
Seatpost	30.9 mm
Seat Collar	35 mm
Dropper Compatible (Routing)	Yes (internal)
Front Derailleur Mount	NOT COMPATIBLE
Bottom Bracket	73 mm BSA
Crankset (Max Ring)	52 mm Boost chainline 1x only (34t)
Rear Brake (Rotor)	IS mount (180 mm max)
Rear Spacing	148 mm
Rear Axle	M12 x 180L, TP = 1.5, TL = 20
Derailleur Hanger	Alternator 2.0 Swing Plate
Water Bottle Mounts	XS = 1, SM–XL = 2
Rack Mounts	Yes, uses Alternator 2.0 plates, requires Salsa Rack-Lock
Fender Mounts	NOT COMPATIBLE
Accessory Mounts	Yes, one pair
TopTube Mounts	Yes, compatible with Salsa EXP Series Direct Mount Top Tube Bag
Downtube Accessory Mounts	Yes, one pair

TIMBERJACK SLX 29

QUICK VIEW

TIMBERJACK SLX 29

税込￥335,500

BUILD KIT
FRAMESET
Frame	Timberjack Alloy V2
Fork	RockShox 35 Silver TK, 130 mm, 44 mm offset
Color	Army Green
Rear Shock	N/A
DRIVETRAIN
Front Derailleur	N/A
Rear Derailleur	Shimano SLX M7100 SGS
Cassette	Shimano Deore M6100-12, 10–51t, 12-speed
Chain	Shimano Deore M6100
Crankset	Shimano MT510, 30t
Shifter	Shimano Deore M6100 I-SPEC EV
Brakes and Rotors	Shimano MT401, Shimano RT10 Center Lock (180 mm front, 160 mm rear)
COMPONENTS
Headset	FSA Orbit 1.5E ACB
Stem	Salsa Guide Trail
Handlebar	Race Face Chester 35
Grips/Bar Tape	Salsa File Tread
Seatpost	TranzX YSI05 RAD+, Shimano MT500 lever, 30 mm travel adj
Saddle	WTB Volt 250 Steel
WHEELS
Front Wheel	Shimano MT400-B 15 x 110 mm hub, WTB ST i30 32h 29″ rim
Rear Wheel	Shimano MT410-B Micro Spline 15 x 110 mm hub, WTB ST i30 32h 29″ rim
Tires	Maxxis Minion DHF front, Maxxis Rekon rear, 29 x 2.6″, EXO, TR
WEIGHT
Complete Bike Weight	33 lbs 0 oz for Medium

*Specification and pricing subject to change without notice.

FRAME SPECS
Tire Size Range for 622/29″ Wheels	53–66 mm (2.1–2.6″)
Tire Size Range for 584/27.5″ Wheels	71 mm (2.8″)
Maximum Wheel/Tire Diameter	760.5 mm (29.95″)
Minimum Wheel/Tire Diameter	728 mm (28.6″)
Suspension Fork Length (Travel)	511–563 mm (100–150 mm travel)
Rigid Fork Length	483–501 mm
Fork Offset	42–51 mm
Headset-Upper	ZS44
Headset-Lower	ZS56
Seatpost	30.9 mm
Seat Collar	35 mm
Dropper Compatible (Routing)	Yes (internal)
Front Derailleur Mount	NOT COMPATIBLE
Bottom Bracket	73 mm BSA
Crankset (Max Ring)	52 mm Boost chainline 1x only (34t)
Rear Brake (Rotor)	IS mount (180 mm max)
Rear Spacing	148 mm
Rear Axle	M12 x 180L, TP = 1.5, TL = 20
Derailleur Hanger	Alternator 2.0 Swing Plate
Water Bottle Mounts	XS = 1, SM–XL = 2
Rack Mounts	Yes, uses Alternator 2.0 plates, requires Salsa Rack-Lock
Fender Mounts	NOT COMPATIBLE
Accessory Mounts	Yes, one pair
TopTube Mounts	Yes, compatible with Salsa EXP Series Direct Mount Top Tube Bag
Downtube Accessory Mounts	Yes, one pair

TIMBERJACK SLX 27.5+

QUICK VIEW

TIMBERJACK SLX 27.5+

税込￥335,500

BUILD KIT
FRAMESET
Frame	Timberjack Alloy V2
Fork	RockShox 35 Silver TK, 130 mm, 44 mm offset
Color	Mint Green
Rear Shock	N/A
DRIVETRAIN
Front Derailleur	N/A
Rear Derailleur	Shimano SLX M7100 SGS
Cassette	Shimano Deore M6100-12, 10–51t, 12-speed
Chain	Shimano Deore M6100
Crankset	Shimano MT510, 30t
Shifter	Shimano Deore M6100 I-SPEC EV
Brakes and Rotors	Shimano MT401, Shimano RT10 Center Lock (180 mm front, 160 mm rear)
COMPONENTS
Headset	FSA Orbit 1.5E ACB
Stem	Salsa Guide Trail
Handlebar	Race Face Chester 35
Grips/Bar Tape	Salsa File Tread
Seatpost	TranzX YSI05 RAD+, Shimano MT500 lever, 30 mm travel adj
Saddle	WTB Volt 250 Steel
WHEELS
Front Wheel	Shimano MT400-B 15 x 110 mm hub, WTB ST i40 32h 27.5″ rim
Rear Wheel	Shimano MT410-B Micro Spline 12 x 148 mm hub, WTB ST i40 32h 27.5″ rim
Tires	Maxxis Minion DHF front, Maxxis Rekon rear, 27.5 x 2.8″, EXO, TR
WEIGHT
Complete Bike Weight	33 lbs 7 oz for Medium

*Specification and pricing subject to change without notice.

FRAME SPECS
Tire Size Range for 622/29″ Wheels	53–66 mm (2.1–2.6″)
Tire Size Range for 584/27.5″ Wheels	71 mm (2.8″)
Maximum Wheel/Tire Diameter	760.5 mm (29.95″)
Minimum Wheel/Tire Diameter	728 mm (28.6″)
Suspension Fork Length (Travel)	511–563 mm (100–150 mm travel)
Rigid Fork Length	483–501 mm
Fork Offset	42–51 mm
Headset-Upper	ZS44
Headset-Lower	ZS56
Seatpost	30.9 mm
Seat Collar	35 mm
Dropper Compatible (Routing)	Yes (internal)
Front Derailleur Mount	NOT COMPATIBLE
Bottom Bracket	73 mm BSA
Crankset (Max Ring)	52 mm Boost chainline 1x only (34t)
Rear Brake (Rotor)	IS mount (180 mm max)
Rear Spacing	148 mm
Rear Axle	M12 x 180L, TP = 1.5, TL = 20
Derailleur Hanger	Alternator 2.0 Swing Plate
Water Bottle Mounts	XS = 1, SM–XL = 2
Rack Mounts	Yes, uses Alternator 2.0 plates, requires Salsa Rack-Lock
Fender Mounts	NOT COMPATIBLE
Accessory Mounts	Yes, one pair
TopTube Mounts	Yes, compatible with Salsa EXP Series Direct Mount Top Tube Bag
Downtube Accessory Mounts	Yes, one pair

ROAD

WARROAD CARBON ULTEGRA

QUICK VIEW

WARROAD CARBON ULTEGRA

税込￥649,000

BUILD KIT
FRAMESET
Frame	Warroad
Fork	Warroad Carbon
Color	Dark Red
Rear Shock	N/A
DRIVETRAIN
Front Derailleur	Shimano Ultegra R8000
Rear Derailleur	Shimano Ultegra R8000
Cassette	Shimano HG700, 11–34t, 11-speed
Chain	Shimano HG601
Crankset	Shimano Ultegra R8000, 50/34t
Shifter	Shimano Ultegra R8020
Brakes and Rotors	Shimano Ultegra 8070 brakes, Shimano RT70 rotors (Center Lock, 160 mm)
COMPONENTS
Headset	Cane Creek 40
Stem	Salsa Guide
Handlebar	Zoom DR-AL-199BTFOV
Grips/Bar Tape	Anti-Slip Silicone Tape
Seatpost	Salsa Guide
Saddle	WTB SL8 Medium Steel SL
WHEELS
Front Wheel	Shimano RS470 12 x 100 mm hub, WTB ST Light i21 TCS 700c rim, 28h
Rear Wheel	Shimano RS470 12 x 142 mm hub, WTB ST Light i21 TCS 700c rim, 28h
Tires	Teravail Rampart 700c x 32 mm, Light & Supple casing, tubeless-ready
WEIGHT
Complete Bike Weight	19 lb 4 oz (56 cm frame)

*Specification and pricing subject to change without notice.

FRAME SPECS
Tire Size Range for 622 / 29″ Wheels	28–35mm (1.1–1.4″)
Tire Size Range for 584 /27.5″ Wheels	47mm (1.85″)
Tire Size Range for 559 / 26″ Wheels	NOT COMPATIBLE
Maximum Wheel/Tire Diameter**	Ø698mm (27.4″) (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
Minimum Wheel/Tire Diameter***	Ø684mm (26.9″)
Rigid Fork Length	390mm
Fork Offset	51mm
Front Brake (Rotor)	160mm, flat mount rear standard, 35mm thickness, 42mm bolt length
Headset-Upper	IS41
Headset-Lower	IS47
Seatpost	27.2mm
Seat Collar	32.0mm
Dropper Compatible (Routing)	Internal, when not running front derailleur
Front Derailleur Mount	06-001369
Bottom Bracket	BB86 Pressfit
Crankset (Max Ring)	1x crankset: 48t max, 2x crankset: 52/36t max
Rear Brake, (Rotor)	140–160mm, flat mount frame standard 20mm thickness, 27mm bolt length
Rear Spacing	142mm

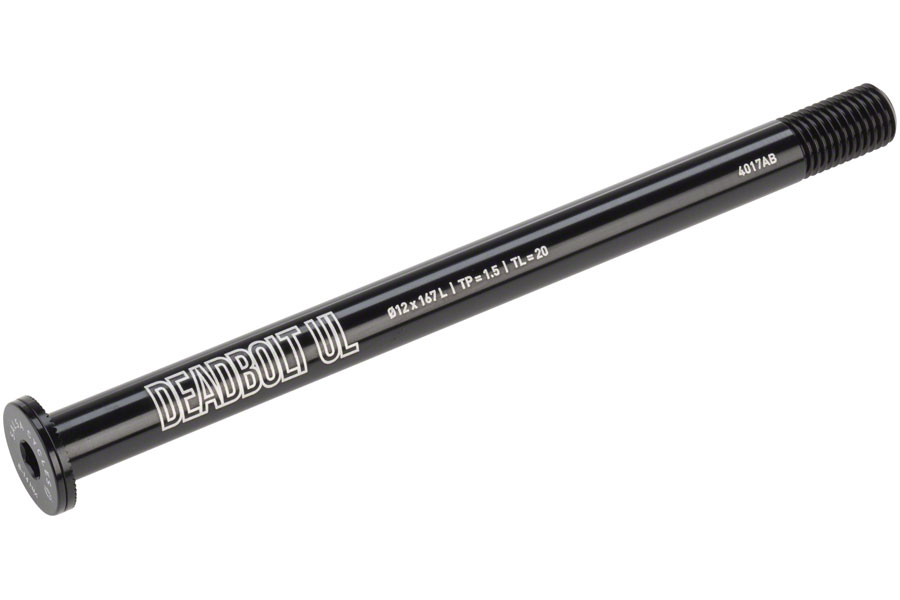

Rear Axle Size	M12 x 167L, TP = 1.5, TL = 20mm
Derailleur Hanger	Hanger 465, QBP# FS2322
Fender Mounts	Yes, required fender hardware included
Frame Rack Mounts	Yes, universal rack rear compatible, Salsa Post-Lock seat collar required, Salsa Wanderlust Rack recommended
Water Bottle Mounts	Frames up to 54.5cm: 2 in main triangle, frames 56cm and larger: 3 in main triangle, 1 under the down tube
Toptube Mounts	Yes, compatible with Salsa Toptube bag
Downtube Accessory Mounts	Yes, one pair
Stem Clamp	Ø28.6mm
Crown Race	Integrated SHIS 33, 45° angle
Front Spacing	100mm
Front Thru-Axle	M12 x 120L, TP = 1.5, TL = 12mm
Three Pack Mounts	One mount per fork leg
Fork Rack Mounts	165mm low-rider compatible, Salsa Down Under Rack recommended

WARROAD CARBON 105

QUICK VIEW

WARROAD CARBON 105

税込￥495,000

BUILD KIT
FRAMESET
Frame	Warroad
Fork	Warroad Carbon
Color	Black
Rear Shock	N/A
DRIVETRAIN
Front Derailleur	Shimano 105 R7000
Rear Derailleur	Shimano 105 R7000
Cassette	Shimano HG700, 11–34t, 11-speed
Chain	Shimano HG601
Crankset	Shimano RS510, 50/34t
Shifter	Shimano 105 R7020
Brakes and Rotors	Shimano 105 7070 brakes, Shimano RT54 rotors -OR- Tektro TR160-35A rotors (Center Lock, 160 mm)
COMPONENTS
Headset	Cane Creek 40
Stem	Salsa Guide
Handlebar	Salsa Cowbell
Grips/Bar Tape	Anti-Slip Silicone handlebar tape
Seatpost	Salsa Guide
Saddle	WTB SL8 Medium Steel SL
WHEELS
Front Wheel	Shimano RS470 -OR- Alex BRD-50312OF0 12 x 100 mm hub, WTB ST i21 TCS 700c rim, 28h
Rear Wheel	Shimano RS470 -OR- Alex BRD-50812M0B 12 x 142 mm hub, WTB ST i21 TCS 700c rim, 28h
Tires	Teravail Rampart 700c x 32 mm, Light & Supple casing, tubeless-ready
WEIGHT
Complete Bike Weight	20 lb 12 oz (56 cm frame)

FRAME SPECS
Tire Size Range for 622 / 29″ Wheels	28–35mm (1.1–1.4″)
Tire Size Range for 584 /27.5″ Wheels	47mm (1.85″)
Tire Size Range for 559 / 26″ Wheels	NOT COMPATIBLE
Maximum Wheel/Tire Diameter**	Ø698mm (27.4″) (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
Minimum Wheel/Tire Diameter***	Ø684mm (26.9″)
Rigid Fork Length	390mm
Fork Offset	51mm
Front Brake (Rotor)	160mm, flat mount rear standard, 35mm thickness, 42mm bolt length
Headset-Upper	IS41
Headset-Lower	IS47
Seatpost	27.2mm
Seat Collar	32.0mm
Dropper Compatible (Routing)	Internal, when not running front derailleur
Front Derailleur Mount	06-001369
Bottom Bracket	BB86 Pressfit
Crankset (Max Ring)	1x crankset: 48t max, 2x crankset: 52/36t max
Rear Brake, (Rotor)	140–160mm, flat mount frame standard 20mm thickness, 27mm bolt length
Rear Spacing	142mm
Rear Axle Size	M12 x 167L, TP = 1.5, TL = 20mm
Derailleur Hanger	Hanger 465, QBP# FS2322
Fender Mounts	Yes, required fender hardware included
Frame Rack Mounts	Yes, universal rack rear compatible, Salsa Post-Lock seat collar required, Salsa Wanderlust Rack recommended
Water Bottle Mounts	Frames up to 54.5cm: 2 in main triangle, frames 56cm and larger: 3 in main triangle, 1 under the down tube
Toptube Mounts	Yes, compatible with Salsa Toptube bag
Downtube Accessory Mounts	Yes, one pair
Stem Clamp	Ø28.6mm
Crown Race	Integrated SHIS 33, 45° angle
Front Spacing	100mm
Front Thru-Axle	M12 x 120L, TP = 1.5, TL = 12mm
Three Pack Mounts	One mount per fork leg
Fork Rack Mounts	165mm low-rider compatible, Salsa Down Under Rack recommended

GRAVEL

CUTTHROAT C X01 EAGLE AXS

QUICK VIEW

CUTTHROAT C X01 EAGLE AXS

税込￥1,100,000

BUILD KIT
FRAMESET
Frame	Cutthroat Carbon
Fork	Cutthroat Deluxe
Color	Yellow
Rear Shock	N/A
DRIVETRAIN
Front Derailleur	N/A
Rear Derailleur	SRAM X01 Eagle AXS
Cassette	SRAM XG-1295 10–52t, 12-speed
Chain	SRAM X01 Eagle
Crankset	SRAM X01 Eagle DUB, Boost, 36t
Shifter	SRAM Force eTap AXS
Brakes and Rotors	SRAM Force Hydraulic, SRAM CenterLine rotors (160 mm)
COMPONENTS
Headset	Cane Creek 40
Stem	Salsa Guide -OR- Zoom TDS-D507G, ±7 degrees
Handlebar	Zoom DR-AL-199BTFOV
Grips/Bar Tape	Anti-Slip Silicone Tape
Seatpost	TranzX JD-YSP38 dropper post
Saddle	WTB SL8 Medium Cromoly SL
WHEELS
Front Wheel	DT Swiss 370 15 x 110 mm hub, Whisky No.9 30W carbon rim, 28h
Rear Wheel	DT Swiss 370 (18t ratchet) 12 x 148 mm hub, Whisky No.9 30W carbon rim, 28h
Tires	Teravail Sparwood 29 x 2.2″, 60 tpi, tubeless compatible, Durable casing
WEIGHT
Complete Bike Weight	22 lb 4 oz (56 cm frame)

*仕様および価格は予告なく変更される場合があります。

FRAME SPECS
Design Wheel x Tire Size	29 x 2.25″ (29 x 2.4″ Max) (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
Susp Fork Length (Travel)	506 mm (100 mm Travel)
Rigid Fork Length	483 mm
Fork Offset	51 mm
Front Spacing	110 x 15 mm Thru-axle
Front Brake (Rotor)	Flat mount (160–180 mm), flat mount frame standard (35 mm thickness), 42 mm bolt length
Front Rack Mounts	Yes, lowrider compatible. Salsa Down Under rack recommended.
Fork Accessory Mounts	Yes, one set of Three-Pack mounts on each fork leg
Headset, Upper	IS52
Seatpost	27.2 mm
Seat Collar	32.0 mm
Dropper Compatible (Routing)	Yes, internal
Front Derailleur Type	Road, braze-on, 2x, bottom-pull
Bottom Bracket	Press Fit BB92, 41 x 92 mm
Crankset (Max & Min Ring)	1x MTN Boost: 40t Max; 2x RD Boost outer ring: 46–50t, inner ring: 30–36t Oval chainrings subtract 2t from max
Rear Brake (Rotor)	Flat mount (140–160 mm), flat mount frame standard (25mm Thickness), 32 mm bolt length
Rear Spacing	148 x 12 mm Thru-axle
Rear Axle Size	Ø12 x 174, TP=1.5, TL=20
Derailleur Hanger	QBP #FS2322
Rear Rack Mounts	Yes, Salsa Rack Lock seatpost collar required. Salsa Wanderlust Rack recommended. Salsa Bent Rack Struts (part #RK8030) required for installation on 58 cm and 60 cm frames. Not compatible with Salsa Wanderlust HD Rack
Rear Fender Mounts	n/a
Water Bottle Mounts	Frames up to 54cm: 2 in main triangle. Frames 56cm and larger: 3 in main triangle.
Under Downtube Mount	Yes, two pair.
Top Tube Mounts	Yes, compatible with Salsa Top Tube bag.
Internal Dropper Post Routing	1x mechanical drivetrain: Route the dropper post cable through the drive side of the down tube. Di2 drivetrains: Move the battery to the down tube, routing it through the head tube, then route the dropper post cable through the drive side of the down tube.
External Dropper Post Routing	1x and 2x mechanical and Di2 drivetrains: Route the dropper post cable through the dynamo rear light holes on the non-drive side of the top tube.

CUTTHROAT C GRX 810 2X

QUICK VIEW

CUTTHROAT C GRX 810 2X

税込￥660,000

BUILD KIT
FRAMESET
Frame	Cutthroat Carbon
Fork	Cutthroat
Color	Tan
Rear Shock	N/A
DRIVETRAIN
Front Derailleur	Shimano GRX RX810
Rear Derailleur	Shimano GRX RX810
Cassette	Shimano HG700 11–34t, 11-speed
Chain	Shimano HG601
Crankset	Race Face Aeffect-R, Easton 46/30t chainrings
Shifter	Shimano GRX RX810
Brakes and Rotors	Shimano GRX RX810, Shimano RT70 rotors (Center Lock, 160 mm)
COMPONENTS
Headset	Cane Creek 40
Stem	Salsa Guide
Handlebar	Zoom DR-AL-199BTFOV
Grips/Bar Tape	Anti-Slip Silicone Tape
Seatpost	Salsa Guide
Saddle	WTB SL8 Medium Steel SL
WHEELS
Front Wheel	Shimano Deore XT 15 x 110 mm hub, WTB ST i25 rim, 32h
Rear Wheel	Shimano Deore XT 12 x 148 mm hub, WTB ST i25 rim, 32h
Tires	Teravail Sparwood 29 x 2.2″, 60 tpi, tubeless compatible, Durable casing
WEIGHT
Complete Bike Weight	24 lb 3 oz (56 cm frame)

*仕様および価格は予告なく変更される場合があります。

FRAME SPECS
Design Wheel x Tire Size	29 x 2.25″ (29 x 2.4″ Max) (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
Susp Fork Length (Travel)	506 mm (100 mm Travel)
Rigid Fork Length	483 mm
Fork Offset	51 mm
Front Spacing	110 x 15 mm Thru-axle
Front Brake (Rotor)	Flat mount (160–180 mm), flat mount frame standard (35 mm thickness), 42 mm bolt length
Front Rack Mounts	Yes, lowrider compatible. Salsa Down Under rack recommended.
Fork Accessory Mounts	Yes, one set of Three-Pack mounts on each fork leg
Headset, Upper	IS52
Seatpost	27.2 mm
Seat Collar	32.0 mm
Dropper Compatible (Routing)	Yes, internal
Front Derailleur Type	Road, braze-on, 2x, bottom-pull
Bottom Bracket	Press Fit BB92, 41 x 92 mm
Crankset (Max & Min Ring)	1x MTN Boost: 40t Max; 2x RD Boost outer ring: 46–50t, inner ring: 30–36t Oval chainrings subtract 2t from max
Rear Brake (Rotor)	Flat mount (140–160 mm), flat mount frame standard (25mm Thickness), 32 mm bolt length
Rear Spacing	148 x 12 mm Thru-axle
Rear Axle Size	Ø12 x 174, TP=1.5, TL=20
Derailleur Hanger	QBP #FS2322
Rear Rack Mounts	Yes, Salsa Rack Lock seatpost collar required. Salsa Wanderlust Rack recommended. Salsa Bent Rack Struts (part #RK8030) required for installation on 58 cm and 60 cm frames. Not compatible with Salsa Wanderlust HD Rack
Rear Fender Mounts	n/a
Water Bottle Mounts	Frames up to 54cm: 2 in main triangle. Frames 56cm and larger: 3 in main triangle.
Under Downtube Mount	Yes, two pair.
Top Tube Mounts	Yes, compatible with Salsa Top Tube bag.
Internal Dropper Post Routing	1x mechanical drivetrain: Route the dropper post cable through the drive side of the down tube. Di2 drivetrains: Move the battery to the down tube, routing it through the head tube, then route the dropper post cable through the drive side of the down tube.
External Dropper Post Routing	1x and 2x mechanical and Di2 drivetrains: Route the dropper post cable through the dynamo rear light holes on the non-drive side of the top tube.

CUTTHROAT C GRX 600 1X

QUICK VIEW

CUTTHROAT C GRX 600 1X

税込￥499,950

BUILD KIT
FRAMESET
Frame	Cutthroat Carbon
Fork	Cutthroat
Color	Charcoal
Rear Shock	N/A
DRIVETRAIN
Front Derailleur	N/A
Rear Derailleur	Shimano GRX RX812
Cassette	Shimano M5100 11–42t, 11-speed
Chain	Shimano HG601
Crankset	Race Face Ride, 36t
Shifter	Shimano GRX RX600
Brakes and Rotors	Shimano GRX RX400, Shimano RT64 rotors (Center Lock, 160 mm)
COMPONENTS
Headset	Cane Creek 40
Stem	Salsa Guide
Handlebar	Zoom DR-AL-199BTFOV
Grips/Bar Tape	Anti-Slip Silicone Tape
Seatpost	Salsa Guide
Saddle	WTB SL8 Medium Steel SL
WHEELS
Front Wheel	Shimano MT400 15 x 110 mm hub -OR- Novatec D791SB-CL-B15, 15 x 110 mm hub, WTB ST i25 rim, 32h
Rear Wheel	Shimano MT400 12 x 148 mm hub -OR- Novatec D982TSB-CL-B12, 12 x 148 mm hub, WTB ST i25 rim, 32h
Tires	Teravail Sparwood 29 x 2.2″, 60 tpi, tubeless compatible, Durable casing
WEIGHT
Complete Bike Weight	24 lb 3 oz (56 cm frame)

*仕様および価格は予告なく変更される場合があります。

FRAME SPECS
Design Wheel x Tire Size	29 x 2.25″ (29 x 2.4″ Max) (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
Susp Fork Length (Travel)	506 mm (100 mm Travel)
Rigid Fork Length	483 mm
Fork Offset	51 mm
Front Spacing	110 x 15 mm Thru-axle
Front Brake (Rotor)	Flat mount (160–180 mm), flat mount frame standard (35 mm thickness), 42 mm bolt length
Front Rack Mounts	Yes, lowrider compatible. Salsa Down Under rack recommended.
Fork Accessory Mounts	Yes, one set of Three-Pack mounts on each fork leg
Headset, Upper	IS52
Headset, Lower	IS41
Seatpost	27.2 mm
Seat Collar	32.0 mm
Dropper Compatible (Routing)	Yes, internal
Front Derailleur Type	Road, braze-on, 2x, bottom-pull
Bottom Bracket	Press Fit BB92, 41 x 92 mm
Crankset (Max & Min Ring)	1x MTN Boost: 40t Max; 2x RD Boost outer ring: 46–50t, inner ring: 30–36t Oval chainrings subtract 2t from max
Rear Brake (Rotor)	Flat mount (140–160 mm), flat mount frame standard (25mm Thickness), 32 mm bolt length
Rear Spacing	148 x 12 mm Thru-axle
Rear Axle Size	Ø12 x 174, TP=1.5, TL=20
Derailleur Hanger	QBP #FS2322
Rear Rack Mounts	Yes, Salsa Rack Lock seatpost collar required. Salsa Wanderlust Rack recommended. Salsa Bent Rack Struts (part #RK8030) required for installation on 58 cm and 60 cm frames. Not compatible with Salsa Wanderlust HD Rack
Rear Fender Mounts	n/a
Water Bottle Mounts	Frames up to 54cm: 2 in main triangle. Frames 56cm and larger: 3 in main triangle.
Under Downtube Mount	Yes, two pair.
Top Tube Mounts	Yes, compatible with Salsa Top Tube bag.
Internal Dropper Post Routing	1x mechanical drivetrain: Route the dropper post cable through the drive side of the down tube. Di2 drivetrains: Move the battery to the down tube, routing it through the head tube, then route the dropper post cable through the drive side of the down tube.
External Dropper Post Routing	1x and 2x mechanical and Di2 drivetrains: Route the dropper post cable through the dynamo rear light holes on the non-drive side of the top tube.

WARBIRD CARBON GRX 810 2X

QUICK VIEW

WARBIRD CARBON GRX 810 2X

税込￥649,000

BUILD KIT
FRAMESET
Frame	Warbird Carbon
Fork	Waxwing
Color	Green
Rear Shock	N/A
DRIVETRAIN
Front Derailleur	Shimano GRX RX810
Rear Derailleur	Shimano GRX RX810
Cassette	Shimano HG700, 11–34t, 11-speed
Chain	Shimano HG601
Crankset	Shimano GRX RX810-2, 48/31t (GRX RX600, 46/30t on 49 cm bikes)
Shifter	Shimano GRX RX810
Brakes and Rotors	Shimano GRX RX810, Shimano RT70 rotors (Center Lock, 160 mm)
COMPONENTS
Headset	Cane Creek 40
Stem	Salsa Guide
Handlebar	Zoom DR-AL-199BTFOV
Grips/Bar Tape	Anti-Slip Silicone Tape
Seatpost	Salsa Guide
Saddle	WTB SL8 Medium Steel SL
WHEELS
Front Wheel	Shimano RS470 12 x 100 mm hub, WTB EZR i23 TCS rim, 28h
Rear Wheel	Shimano RS470 12 x 142 mm hub, WTB EZR i23 TCS rim, 28h
Tires	Teravail Cannonball 700c x 42 mm, tubeless compatible, Durable casing
WEIGHT
Complete Bike Weight	21 lb 3 oz (56 cm frame)

*Specification and pricing subject to change without notice.

FRAME SPECS
Max Tire OD	700c: 716mm / 650b: 696mm (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
Design Wheel/Tire Size	622 – 32 (700 x 32mm)
Alternate Wheel/Tire Size	622 – 32-45 (700c x 32–45mm / 1.2–1.8”) / 584 – 47-51 (650b x 47mm–51mm / 1.85–2.0”)
Suspension Fork Length (Travel)	436.7mm axle-to-crown (40mm travel)
Rigid Fork Length	405mm
Fork Offset	50mm
Headset-Upper	IS41
Headset-Lower	IS52
Seatpost	27.2mm
Seat Collar	32.0mm
Bottom Bracket	BB86 PressFit
Crankset	1x: 44t max; 2x: 52/36t max, 46/30t minimum
Rear Brake (Rotor)	Flat mount 140, 140–160mm, flat mount frame standard 20mm thickness, 27mm bolt length
Rear Spacing	142mm
Rear Axle	M12 x 167L, TP = 1.5, TL = 20mm
Derailleur Hanger	Hanger 465, QBP# FS2322
Fender Mounts	Yes, required fender hardware included
Rack Mounts	165 mm Low-rider compatible. Salsa Down Under rack recommended.
Water Bottle Mounts	Frames up to 54cm: 2 in main triangle, frames 56cm and larger: 3 in main triangle
Downtube Accessory Mount	Yes, one pair
Toptube Mounts	Yes, compatible with Salsa Toptube bag
Stem Clamp	Ø28.6mm
Crown Race	Integrated SHIS 40, 36° angle
Front Brake (Rotor)	Flat mount 160, flat mount rear standard, 35mm thickness, 42mm bolt length
Front Spacing	12 x 100 mm TA
Front Thru-Axle	M12 x 120L, TP = 1.5, TL = 12mm
Three-Pack Mounts	One mount per fork leg.
Front Axle	M12 x 120L, TP = 1.5, TL = 12 mm

WARBIRD CARBON GRX 600 1X

QUICK VIEW

WARBIRD CARBON GRX 600 1X

税込￥495,000

BUILD KIT
FRAMESET
Frame	Warbird Carbon
Fork	Waxwing
Color	Light Gray
Rear Shock	N/A
DRIVETRAIN
Front Derailleur	N/A
Rear Derailleur	Shimano GRX RX812
Cassette	Shimano M5100, 11–42t, 11-speed
Chain	Shimano HG601
Crankset	Shimano GRX RX600, 40t -OR- FSA Omega MegaExo, 40t
Shifter	Shimano GRX RX600
Brakes and Rotors	Shimano GRX RX400 brakes, Shimano RT64 rotors (Center Lock, 160 mm)
COMPONENTS
Headset	Cane Creek 40
Stem	Salsa Guide
Handlebar	Salsa Cowbell
Grips/Bar Tape	Anti-Slip Silicone handlebar tape
Seatpost	Salsa Guide
Saddle	WTB SL8 Medium Steel SL
WHEELS
Front Wheel	Shimano RS470 12 x 100 mm hub -OR- Novatec D981SB-CL-12 12 x 100 mm hub, WTB ST i23 TCS rim, 28h
Rear Wheel	Shimano RS470 12 x 142 mm hub -OR- Novatec D982TSB-CL-X12 12 x 142 mm hub, WTB ST i23 TCS rim, 28h
Tires	Teravail Cannonball 700c x 42 mm, tubeless compatible, Durable casing
WEIGHT
Complete Bike Weight	21 lb 8 oz (56 cm frame)

*Specification and pricing subject to change without notice.

FRAME SPECS
Max Tire OD	700c: 716mm / 650b: 696mm (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
Design Wheel/Tire Size	622 – 32 (700 x 32mm)
Alternate Wheel/Tire Size	622 – 32-45 (700c x 32–45mm / 1.2–1.8”) / 584 – 47-51 (650b x 47mm–51mm / 1.85–2.0”)
Suspension Fork Length (Travel)	436.7mm axle-to-crown (40mm travel)
Rigid Fork Length	405mm
Fork Offset	50mm
Headset-Upper	IS41
Headset-Lower	IS52
Seatpost	27.2mm
Seat Collar	32.0mm
Bottom Bracket	BB86 PressFit
Crankset	1x: 44t max; 2x: 52/36t max, 46/30t minimum
Rear Brake (Rotor)	Flat mount 140, 140–160mm, flat mount frame standard 20mm thickness, 27mm bolt length
Rear Spacing	142mm
Rear Axle	M12 x 167L, TP = 1.5, TL = 20mm
Derailleur Hanger	Hanger 465, QBP# FS2322
Fender Mounts	Yes, required fender hardware included
Rack Mounts	165 mm Low-rider compatible. Salsa Down Under rack recommended.
Water Bottle Mounts	Frames up to 54cm: 2 in main triangle, frames 56cm and larger: 3 in main triangle
Downtube Accessory Mount	Yes, one pair
Toptube Mounts	Yes, compatible with Salsa Toptube bag
Stem Clamp	Ø28.6mm
Crown Race	Integrated SHIS 40, 36° angle
Front Brake (Rotor)	Flat mount 160, flat mount rear standard, 35mm thickness, 42mm bolt length
Front Spacing	12 x 100 mm TA
Front Thru-Axle	M12 x 120L, TP = 1.5, TL = 12mm
Three-Pack Mounts	One mount per fork leg.
Front Axle	M12 x 120L, TP = 1.5, TL = 12 mm

JOURNEYER GRX 810 700C

QUICK VIEW

JOURNEYER GRX 810 700C

税込￥437,800

BUILD KIT
FRAMESET
Frame	Journeyer Drop-Bar Thru-Axle
Fork	Waxwing
Color	Forest Green
DRIVETRAIN
Front Derailleur	N/A
Rear Derailleur	Shimano GRX RX812
Cassette	Shimano M7000 11–42t, 11-speed
Chain	Shimano HG601
Crankset	Shimano GRX RX810, 40t on sizes 53 cm + (Shimano GRX RX600, 40t, 165mm arms on sizes 49 and 51 cm)
Shifter	Shimano GRX RX810-R/LA
Brakes and Rotors	Shimano GRX RX810 brakes, Shimano RT10 rotors (Center Lock, 160 mm)
COMPONENTS
Headset	FSA NO.42 ACB IS-2
Stem	Salsa Guide 31.8, 6-degree
Handlebar	Salsa Cowbell 3, 31.8
Grips/Bar Tape	Black Cork
Seatpost	Salsa Guide, 27.2 x 350 mm
Saddle	WTB Volt Medium, Steel, 142 x 265 mm
WHEELS
Front Wheel	Shimano Tiagra RS470 12 x 100 mm hub, WTB EZR i23 28h 700c rim
Rear Wheel	Shimano Tiagra RS470 12 x 142 mm hub, WTB EZR i23 28h 700c rim
Tires	Teravail Washburn, 700c x 38 mm, 60 tpi, Durable casing, tubeless ready

*仕様および価格は予告なく変更される場合があります。

FRAME SPECS

Design Wheel/Tire Size	700c x 38 mm
Alternate Wheel-Tire Sizes	650b x 47–50 mm; 700c x 32–50 mm
Rigid Fork Length	405 mm axle-to-crown
Fork Offset	50 mm
Headset-Upper	IS41
Headset-Lower	IS52
Crown Race	40 mm
Seatpost	27.2 mm
Seat Collar	32.0 mm
Dropper Compatible (Routing)	Yes, internal
Stem Clamp / Steerer Clamp Diameter	28.6 mm / 1 1/8
Front Derailleur Mount	31.8 mm OD, bottom pull
Front Derailleur Type	2x, bottom swing
Bottom Bracket	68 mm BSA
Crankset (Max Ring)	1x crankset: 42t max.; 2x crankset: 48/33t max.
Front Brake (Rotor)	Flat mount 160 frame standard (180 mm max.), 35 mm thickness, 42 mm bolt length
Rear Brake (Rotor)	Flat mount 140 frame standard (160 mm max.), 20 mm thickness, 27 mm bolt length
Front Spacing	100 mm
Front Axle	M12 x 120 TP = 1.5, TL = 12 mm thru-axle
Rear Spacing	142 mm
Rear Axle	M12 x 169 TP = 1.0, TL = 14 mm thru-axle
Derailleur Hanger	SRAM UDH
Downtube Accessory Mounts	Yes, One
TopTube Mounts	Yes
Rack Mounts	Rear: yes; Front: yes, low rider
Fender Mounts	Yes
Water Bottle Mounts	49 cm frame: 1 in main triangle; 51–56 cm frames: 2 in main triangle; 57–60 cm frames: 3 in main triangle
Three-Pack Mounts	47–53 cm frames: 1 on down tube; 55–60 cm frames: 1 on down tube + 1 on seat tube; All sizes: one per fork leg

JOURNEYER GRX 600 650B

QUICK VIEW

JOURNEYER GRX 600 650B

税込￥387,200

BUILD KIT
FRAMESET
Frame	Journeyer Drop-Bar Thru-Axle
Fork	Waxwing
Color	Lime
DRIVETRAIN
Front Derailleur	Shimano GRX RX810
Rear Derailleur	Shimano GRX RX810
Cassette	Shimano HG700, 11–34t, 11-speed
Chain	Shimano HG601
Crankset	Shimano GRX RX600, 46/30t
Shifter	Shimano GRX RX600
Brakes and Rotors	Shimano GRX RX400 brakes, Shimano RT10 rotors (Center Lock, 160 mm)
COMPONENTS
Headset	FSA NO.42 ACB IS-2
Stem	Salsa Guide 31.8, 6-degree
Handlebar	Salsa Cowbell 3, 31.8
Grips/Bar Tape	Black Cork
Seatpost	Salsa Guide, 27.2 x 350 mm
Saddle	WTB Volt Medium, Steel, 142 x 265 mm
WHEELS
Front Wheel	Shimano Tiagra RS470 12 x 100 mm hub, WTB ST i23 650b rim, 28h
Rear Wheel	Shimano Tiagra RS470 12 x 142 mm hub, WTB ST i23 650b rim, 28h
Tires	Teravail Washburn, 650b x 47 mm, 60 tpi, Durable casing, tubeless ready
WEIGHT
Complete Bike Weight	23 lb (56 cm, with pedals)

*仕様および価格は予告なく変更される場合があります。

FRAME SPECS

Design Wheel/Tire Size	650b x 47 mm
Alternate Wheel-Tire Sizes	650b x 47–50 mm; 700c x 32–50 mm
Rigid Fork Length	405 mm axle-to-crown
Fork Offset	50 mm
Headset-Upper	IS41
Headset-Lower	IS52
Crown Race	40 mm
Seatpost	27.2 mm
Seat Collar	32.0 mm
Dropper Compatible (Routing)	Yes, internal
Stem Clamp / Steerer Clamp Diameter	28.6 mm / 1 1/8
Front Derailleur Mount	31.8 mm OD, bottom pull
Front Derailleur Type	2x, bottom swing
Bottom Bracket	68 mm BSA
Crankset (Max Ring)	1x crankset: 42t max.; 2x crankset: 48/33t max.
Front Brake (Rotor)	Flat mount 160 frame standard (180 mm max.), 35 mm thickness, 42 mm bolt length
Rear Brake (Rotor)	Flat mount 140 frame standard (160 mm max.), 20 mm thickness, 27 mm bolt length
Front Spacing	100 mm
Front Axle	M12 x 120 TP = 1.5, TL = 12 mm thru-axle
Rear Spacing	142 mm
Rear Axle	M12 x 169 TP = 1.0, TL = 14 mm thru-axle
Derailleur Hanger	SRAM UDH
Downtube Accessory Mounts	Yes, One
TopTube Mounts	Yes
Rack Mounts	Rear: yes; Front: yes, low rider
Fender Mounts	Yes
Water Bottle Mounts	49 cm frame: 1 in main triangle; 51–56 cm frames: 2 in main triangle; 57–60 cm frames: 3 in main triangle
Three-Pack Mounts	47–53 cm frames: 1 on down tube; 55–60 cm frames: 1 on down tube + 1 on seat tube; All sizes: one per fork leg

JOURNEYER SORA 700C

QUICK VIEW

JOURNEYER SORA 700C

税込￥228,800

BUILD KIT
FRAMESET
Frame	Journeyer Drop-Bar Thru-Axle
Fork	Waxwing
Color	Black
DRIVETRAIN
Front Derailleur	Shimano Sora R3000
Rear Derailleur	Shimano Sora R3000, Medium Cage
Cassette	Shimano HG200, 11–34t, 9-speed
Chain	KMC X9
Crankset	Shimano MT210, 46/30t
Shifter	Shimano Sora R3000
Brakes and Rotors	Tektro MD-C550 brakes, Tektro TR160-22 rotors (6-bolt, 160 mm)
COMPONENTS
Headset	FSA NO.42 ACB IS-2
Stem	Salsa Guide 31.8, 6-degree
Handlebar	Salsa Cowbell 3, 31.8
Grips/Bar Tape	Black Cork
Seatpost	Salsa Guide, 27.2 x 350 mm
Saddle	WTB Volt Medium, Steel, 142 x 265 mm
WHEELS
Front Wheel	WTB Serra 12 x 100 mm hub, WTB ST i23 700c rim, 28h
Rear Wheel	WTB Serra HG10 12 x 142 mm hub, WTB ST i23 700c rim, 28h
Tires	Teravail Washburn, 700c x 38 mm, 30 tpi
WEIGHT
Complete Bike Weight	24 lb (56 cm, with pedals)

*仕様および価格は予告なく変更される場合があります。

FRAME SPECS
Design Wheel/Tire Size	700c x 38 mm
Alternate Wheel-Tire Sizes	700c x 32–50 mm; 650b x 47–50 mm
Rigid Fork Length	405 mm axle-to-crown
Fork Offset	50 mm
Headset-Upper	IS41
Headset-Lower	IS52
Crown Race	40 mm
Seatpost	27.2 mm
Seat Collar	32.0 mm
Dropper Compatible (Routing)	Yes, internal
Stem Clamp / Steerer Clamp Diameter	28.6 mm / 1 1/8
Front Derailleur Mount	31.8 mm OD, bottom pull
Front Derailleur Type	2x, bottom swing
Bottom Bracket	68 mm BSA
Crankset (Max Ring)	1x crankset: 42t max.; 2x crankset: 48/33t max.
Front Brake (Rotor)	Flat mount 160 frame standard (180 mm max.), 35 mm thickness, 42 mm bolt length
Rear Brake (Rotor)	Flat mount 140 frame standard (160 mm max.), 20 mm thickness, 27 mm bolt length
Front Spacing	100 mm
Front Axle	M12 x 120 TP = 1.5, TL = 12 mm thru-axle
Rear Spacing	142 mm
Rear Axle	M12 x 169 TP = 1.0, TL = 14 mm thru-axle
Derailleur Hanger	SRAM UDH
Downtube Accessory Mounts	Yes, One
TopTube Mounts	Yes
Rack Mounts	Rear: yes; Front: yes, low rider
Fender Mounts	Yes
Water Bottle Mounts	49 cm frame: 1 in main triangle; 51–56 cm frames: 2 in main triangle; 57–60 cm frames: 3 in main triangle
Three-Pack Mounts	47–53 cm frames: 1 on down tube; 55–60 cm frames: 1 on down tube + 1 on seat tube; All sizes: one per fork leg

JOURNEYER SORA 650B

QUICK VIEW

JOURNEYER SORA 650B

税込￥228,800

FRAMESET
Frame	Journeyer Drop-Bar Thru-Axle
Fork	Waxwing
Color	Green
DRIVETRAIN
Front Derailleur	Shimano Sora R3000
Rear Derailleur	Shimano Sora R3000, Medium Cage
Cassette	Shimano HG200, 11–34t, 9-speed
Chain	KMC X9
Crankset	Shimano MT210, 46/30t
Shifter	Shimano Sora R3000
Brakes and Rotors	Tektro MD-C550 brakes, Tektro TR160-22 rotors (6-bolt, 160 mm)
COMPONENTS
Headset	FSA NO.42 ACB IS-2
Stem	Salsa Guide 31.8, 6-degree
Handlebar	Salsa Cowbell 3, 31.8
Grips/Bar Tape	Black Cork
Seatpost	Salsa Guide, 27.2 x 350 mm
Saddle	WTB Volt Medium, Steel, 142 x 265 mm
WHEELS
Front Wheel	WTB Serra 12 x 100 mm hub, WTB ST i23 650b rim, 28h
Rear Wheel	WTB Serra HG10 12 x 142 mm hub, WTB ST i23 650b rim, 28h
Tires	Teravail Washburn, 650b x 47 mm, 30 tpi
WEIGHT
Complete Bike Weight	24 lb (56 cm, with pedals)

*仕様および価格は予告なく変更される場合があります。

Design Wheel/Tire Size	650b x 47 mm
Alternate Wheel-Tire Sizes	650b x 47–50 mm; 700c x 32–50 mm
Rigid Fork Length	405 mm axle-to-crown
Fork Offset	50 mm
Headset-Upper	IS41
Headset-Lower	IS52
Crown Race	40 mm
Seatpost	27.2 mm
Seat Collar	32.0 mm
Dropper Compatible (Routing)	Yes, internal
Stem Clamp / Steerer Clamp Diameter	28.6 mm / 1 1/8
Front Derailleur Mount	31.8 mm OD, bottom pull
Front Derailleur Type	2x, bottom swing
Bottom Bracket	68 mm BSA
Crankset (Max Ring)	1x crankset: 42t max.; 2x crankset: 48/33t max.
Front Brake (Rotor)	Flat mount 160 frame standard (180 mm max.), 35 mm thickness, 42 mm bolt length
Rear Brake (Rotor)	Flat mount 140 frame standard (160 mm max.), 20 mm thickness, 27 mm bolt length
Front Spacing	100 mm
Front Axle	M12 x 120 TP = 1.5, TL = 12 mm thru-axle
Rear Spacing	142 mm
Rear Axle	M12 x 169 TP = 1.0, TL = 14 mm thru-axle
Derailleur Hanger	SRAM UDH
Downtube Accessory Mounts	Yes, One
TopTube Mounts	Yes
Rack Mounts	Rear: yes; Front: yes, low rider
Fender Mounts	Yes
Water Bottle Mounts	49 cm frame: 1 in main triangle; 51–56 cm frames: 2 in main triangle; 57–60 cm frames: 3 in main triangle
Three-Pack Mounts	47–53 cm frames: 1 on down tube; 55–60 cm frames: 1 on down tube + 1 on seat tube; All sizes: one per fork leg

JOURNEYER CLARIS 700C

QUICK VIEW

JOURNEYER CLARIS 700C

税込￥175,780

BUILD KIT
FRAMESET
Frame	Journeyer Drop-Bar Quick-Release
Fork	Fantail
Color	Tan
DRIVETRAIN
Front Derailleur	Shimano Claris R2000
Rear Derailleur	Shimano Claris R2000, Medium Cage
Cassette	Shimano HG31 11–34t, 8 speed
Chain	KMC X8
Crankset	Shimano TY501 46/30t, Shimano UN101 68 x 122.5 mm bottom bracket
Shifter	Shimano Claris R2000
Brakes and Rotors	Tektro MD-C310, Shimano RT10 (Center Lock, 160 mm)
COMPONENTS
Headset	FSA NO.42 ACB IS-2
Stem	Salsa Guide 31.8, 6-degree
Handlebar	Salsa Cowbell 3, 31.8
Grips/Bar Tape	Black Cork
Seatpost	Salsa Guide 27.2 x 350 mm, 12 mm offset
Saddle	WTB Volt Medium, Steel, 142 x 265 mm
WHEELS
Front Wheel	Shimano TX505 9 x 100 mm QR hub, WTB ST i23 700c rim, 32h
Rear Wheel	Shimano TX505-8 10 x 135 mm QR hub, WTB ST i23 700c rim, 32h
Tires	Teravail Washburn, 700c x 38 mm, 30 tpi

*仕様および価格は予告なく変更される場合があります。

FRAME SPECS
Design Wheel/Tire Size	700c x 38 mm
Alternate Wheel-Tire Sizes	700c x 32–50 mm; 650b x 47–50 mm
Rigid Fork Length	405 mm axle-to-crown
Fork Offset	50 mm
Headset-Upper	IS41
Headset-Lower	IS52
Crown Race	40 mm
Seatpost	27.2 mm
Seat Collar	32.0 mm
Dropper Compatible (Routing)	Yes, internal
Stem Clamp / Steerer Clamp Diameter	28.6 mm / 1 1/8
Front Derailleur Mount	31.8 mm OD, bottom pull
Front Derailleur Type	2x, bottom swing
Bottom Bracket	68 mm BSA
Crankset (Max Ring)	1x crankset: 42t max.; 2x crankset: 48/33t max.
Front Brake (Rotor)	Flat mount 140 fork standard (160 mm max.)
Rear Brake (Rotor)	Flat mount 140 frame standard (160 mm max.), 20 mm thickness, 27 mm bolt length
Front Axle	9 x 100 mm quick release
Rear Spacing	135 mm
Rear Axle	10 x 135 mm quick release
Derailleur Hanger	Salsa 959
Downtube Accessory Mounts	Yes, One
TopTube Mounts	Yes
Rack Mounts	Rear: yes; Front: yes, low rider
Fender Mounts	Yes
Water Bottle Mounts	49 cm frame: 1 in main triangle; 51–56 cm frames: 2 in main triangle; 57–60 cm frames: 3 in main triangle
Three-Pack Mounts	47–53 cm frames: 1 on down tube; 55–60 cm frames: 1 on down tube + 1 on seat tube; All sizes: one per fork leg

JOURNEYER FLAT BAR DEORE 700C

QUICK VIEW

JOURNEYER FLAT BAR DEORE 700C

税込￥192,500

BUILD KIT
FRAMESET
Frame	Journeyer Flat-Bar Quick-Release
Fork	Fantail Deluxe
Color	Ash
DRIVETRAIN
Front Derailleur	N/A
Rear Derailleur	Shimano Deore M5120 SGS, 10/11-speed
Cassette	Shimano Deore M4100, 11–46t, 10-speed
Chain	Shimano HG54
Crankset	Omega MegaExo 40t, FSA Road MegaExo bottom bracket
Shifter	Shimano Deore M4100
Brakes and Rotors	Tektro HD-R280, TR-160-22 (6-bolt, 160 mm)
COMPONENTS
Headset	FSA NO.42 ACB IS-2
Stem	Salsa Guide 31.8, 6-degree
Handlebar	Salsa Salt Flat 31.8, 700 mm
Grips/Bar Tape	Salsa File Tread
Seatpost	Promax SP-2016 27.2x350mm, 12 mm offset
Saddle	WTB Volt Medium, Steel, 142 x 265 mm
WHEELS
Front Wheel	WTB Serra 12 x 100 mm TA hub, WTB ST i23 700c rim, 28h
Rear Wheel	WTB Serra 10 x 135 mm QR hub, WTB ST i23 700c rim, 28h
Tires	Teravail Washburn 700c x 38 mm, 30 tpi, Wire Bead
WEIGHT
Complete Bike Weight	25lbs (MD, with pedals)

*仕様および価格は予告なく変更される場合があります。

FRAME SPECS
Design Wheel/Tire Size	700c x 38 mm
Alternate Wheel-Tire Sizes	700c x 32–50 mm; 650b x 47–50 mm
Rigid Fork Length	405 mm axle-to-crown
Fork Offset	50 mm
Headset-Upper	IS41
Headset-Lower	IS52
Crown Race	40 mm
Seatpost	27.2 mm
Seat Collar	Yes, internal
Stem Clamp / Steerer Clamp Diameter	28.6 mm / 1 1/8
Front Derailleur Mount	31.8 mm OD, bottom pull
Front Derailleur Type	2x, bottom swing
Bottom Bracket	68 mm BSA
Crankset (Max Ring)	1x crankset: 42t max.; 2x crankset: 48/33t max.
Front Brake (Rotor)	Flat mount 140 fork standard (160 mm max.)
Rear Brake (Rotor)	Flat mount 140 frame standard (160 mm max.), 20 mm thickness, 27 mm bolt length
Front Spacing	100 mm
Front Axle	M12 x 120 TP = 1.5, TL = 12 mm thru-axle
Rear Spacing	135 mm
Rear Axle	10 x 135 mm quick release
Derailleur Hanger	Salsa 959
Downtube Accessory Mounts	Yes, One
TopTube Mounts	Yes
Rack Mounts	Rear: yes; Front: yes, low rider
Fender Mounts	Yes
Water Bottle Mounts	XS frame: 1 in main triangle; SM frame: 2 in main triangle; MD, LG, and XL frames: 3 in main triangle
Three-Pack Mounts	XS and SM frames: 1 on down tube; MD, LG, and XL frames: 1 on down tube + 1 on seat tube; All sizes: one per fork leg

JOURNEYER FLAT BAR ALTUS 650B

QUICK VIEW

JOURNEYER FLAT BAR ALTUS 650B

税込￥140,800

BUILD KIT
FRAMESET
Frame	Journeyer Flat-Bar Quick-Release
Fork	Fantail
Color	Red
DRIVETRAIN
Front Derailleur	Shimano Acera T3000-2-TS3
Rear Derailleur	Shimano Altus M370-L SGS
Cassette	Shimano M200, 11–34t, 9 speed
Chain	KMC Z9
Crankset	<strong>Shimano MT210 46/30t, Shimano MT500 bottom bracket -OR- FSA VERO PRO ML019 46 S.B Black 46/30t 165L</strong>
Shifter	Shimano Altus M2010
Brakes and Rotors	Tektro MD-U310 with RS360A lever, Shimano RT10 (160 mm)
COMPONENTS
Headset	FSA NO.42 ACB IS-2
Stem	Salsa Guide 31.8, 6-degree
Handlebar	Salsa Salt Flat 31.8, 700 mm
Grips/Bar Tape	Salsa File Tread
Seatpost	Salsa Guide 27.2 x 350 mm, 12 mm offset
Saddle	WTB Volt Medium, Steel, 142 x 265 mm
WHEELS
Front Wheel	Shimano TX505 9 x 100 mm QR hub, WTB ST i23 650b rim, 32h
Rear Wheel	Shimano TX505-8 10 x 135 mm QR hub, WTB ST i23 650b rim, 32h
Tires	Teravail Washburn 650b x 47 mm, 30 tpi, Wire Bead

*仕様および価格は予告なく変更される場合があります。

FRAME SPECS
Design Wheel/Tire Size	650b x 47 mm
Alternate Wheel-Tire Sizes	650b x 47–50 mm; 700c x 32–50 mm
Rigid Fork Length	405 mm axle-to-crown
Fork Offset	50 mm
Headset-Upper	IS52
Crown Race	40 mm
Seatpost	27.2 mm
Seat Collar	32.0 mm
Dropper Compatible (Routing)	Yes, internal
Stem Clamp / Steerer Clamp Diameter	28.6 mm / 1 1/8
Front Derailleur Mount	31.8 mm OD, bottom pull
Front Derailleur Type	2x, bottom swing
Bottom Bracket	68 mm BSA
Crankset (Max Ring)	1x crankset: 42t max.; 2x crankset: 48/33t max.
Front Brake (Rotor)	Flat mount 140 fork standard (160 mm max.)
Rear Brake (Rotor)	Flat mount 140 frame standard (160 mm max.), 20 mm thickness, 27 mm bolt length
Front Spacing	100 mm
Front Axle	9 x 100 mm quick release
Rear Spacing	135 mm
Rear Axle	10 x 135 mm quick release
Derailleur Hanger	Salsa 959
Downtube Accessory Mounts	Yes, One
TopTube Mounts	Yes
Rack Mounts	Rear: yes; Front: yes, low rider
Fender Mounts	Yes
Water Bottle Mounts	XS frame: 1 in main triangle; SM frame: 2 in main triangle; MD, LG, and XL frames: 3 in main triangle
Three-Pack Mounts	XS and SM frames: 1 on down tube; MD, LG, and XL frames: 1 on down tube + 1 on seat tube; All sizes: one per fork leg

STORMCHASER SINGLE SPEED

QUICK VIEW

STORMCHASER SINGLE SPEED

税込￥300,300

BUILD KIT
FRAMESET
Frame	Stormchaser Aluminum
Fork	Stormchaser Carbon
Color	Silver
Rear Shock	N/A
DRIVETRAIN
Front Derailleur	N/A
Rear Derailleur	N/A
Cassette	17t and 18t cogs with spacer kit
Chain	KMC Z1 Anti-Rust
Crankset	Race Face Ride, 38t
Shifter	N/A
Brakes & Rotors	TRP RRL levers, TRP Spyre-C Flat Mount brakes, Shimano RT30 rotors (160 mm)
COMPONENTS
Headset (Upper/Lower)	FSA No.42 ACB
Stem	Salsa Guide
Handlebar	Salsa Cowchipper
Grips/Bar Tape	Anti-Slip Gel handlebar tape
Seatpost	Salsa Guide, 18 mm offset
Saddle	WTB Volt Medium Steel
WHEELS
Front Wheel	Shimano RS470 12 x 100 mm hub, WTB ST i23 700c TCS rim, 28h
Rear Wheel	Shimano RS470 12 x 142 mm hub, WTB ST i23 700c TCS rim, 28h
Tires	Teravail Rutland, 700c x 42 mm, Durable casing
WEIGHT
Complete Bike Weight	21lbs for size 56cm

*仕様および価格は予告なく変更される場合があります。

FRAME SPECS
Design Wheel/Tire Sizes	700c x 42 mm
Alternate Wheel/Tire Sizes	700c x 32–50 mm; 650b x 47–50 mm
Suspension Fork Length (Travel)	N/A
Rigid Fork Length	420 mm
Fork Offset	51 mm
Headset, Upper	IS41
Headset, Lower	IS52
Seatpost	27.2 mm
Seatpost Collar	32.0 mm
Dropper Compatible (Routing)	Yes (internal)
Front Derailleur Clamp	N/A
Front Derailleur Type	N/A
Bottom Bracket	73 mm BSA, threaded
Crankset (Max Ring – Single Speed)	1x crankset, 40t max, Race Face/Easton 51 mm chainline, single speed only
Crankset (Max Ring – Geared)	1x crankset only, 38t max, 49 mm MTN chainline, 168 Q-factor min.
Front Brake (Rotor)	Flat mount frame standard, 35 mm thickness, 42 mm bolt length (160 mm rotor only)
Rear Brake (Rotor)	Flat mount frame standard, 20 mm thickness, 27 mm bolt length (140–160 mm rotor)
Rear Spacing	12 x 142 mm TA
Rear Axle Size	M12 x 167L, TP = 1.5, TL = 20 mm (NOTE, DOES NOT FIT SALSA DEABOLT W/ LEVER. DEADBOLT UL TOOLED AXLE ONLY)
Derailleur Hanger	Hanger 465, QBP# FS2322 (Requires geared Alternator Flat Mount Plate, QBP# FS0719, and Hanger Axle/Stud Kit, QBP# FS1181)
Rear Rack Mounts	Yes, universal rack rear compatible. Salsa Post-Lock seat collar required. Salsa Wanderlust Rack recommended.
Fender Mounts	Yes, required fender hardware included.
Max Tire Size with Fenders	700c x 47 mm
Water Bottle Mounts	Frames up to 56 cm: 2 in main triangle. Frames 57.5 cm and larger: 3 in main triangle.
Downtube Accessory Mounts	One
Top Tube Mounts	Yes, compatible with Salsa EXP Series Top Tube bag.
Stem Clamp	28.6 mm
Crown Race	Integrated SHIS 40, 36° Angle
Front Spacing	12 x 100 mm TA
Front Axle	M12 x 120L, TP = 1.5, TL = 12 mm
Three-Pack Mounts	One mount per fork leg.
Rack Mounts	165 mm Low-rider compatible. Salsa Down Under rack recommended.

TOURING

MARRAKESH

QUICK VIEW

FATBIKE

BEARGREASE C X01 EAGLE

QUICK VIEW

BEARGREASE C X01 EAGLE

税込￥932,800

BUILD KIT
FRAMESET
Frame	Beargrease Carbon v2
Fork	Kingpin Deluxe
Color	Red/Teal
Rear Shock	N/A
DRIVETRAIN
Front Derailleur	N/A
Rear Derailleur	SRAM X01 Eagle
Cassette	SRAM XG-1295 Eagle, 10–52t, 12 speed
Chain	SRAM GX Eagle
Crankset	TRUVATIV STYLO C Eagle Fat5 DUB, 30t
Shifter	SRAM X01 Eagle
Brakes & Rotors	SRAM G2 RSC brakes, SRAM CenterLine rotors (6-bolt, 160 mm)
COMPONENTS
Headset (Upper/Lower)	Cane Creek 40
Stem	Salsa Guide Trail, 35.0 mm clamp
Handlebar	Salsa Guide 35.0 Carbon
Grips/Bar Tape	Salsa File Tread Lock-On
Seatpost	Salsa Guide Carbon
Saddle	WTB Volt Cromoly SL Medium
WHEELS
Front Wheel	DT Swiss 350 15 x 150 mm hub, WHISKY No.9 76W rim
Rear Wheel	DT Swiss 350 12 x 197 mm hub, WHISKY No.9 76W rim
Tires	45NRTH Vanhelga, 27.5 x 4.0″ 120 TPI, Tubeless-Ready, Folding
WEIGHT
Complete Bike Weight	26 lbs 3 oz for Large

*Specification and pricing subject to change without notice.

FRAME SPECS
Design Wheel/Tire Size	27.5 x 3.8″ on an 82mm rim
Alternate Wheel/ Tire Size	26 x 3.8–4.6″ on up to a 100mm rim / 27.5 x 3.0-4.0 on up to a 82mm rim / 29 x 2.25–3.0
Susp Fork Length	511mm (100mm)
Rigid Fork Length	483–486mm
Fork Offset	50–51mm
Headset-Upper	IS41
Headset-Lower	IS52
Seatpost	ø30.9mm
Seat Collar	ø35.4mm
Dropper Compatible	Yes, internal (stealth)
Front Derailleur Type	Not compatible
Bottom Bracket	100mm BSA threaded
Crankset (Max Ring)	Fat bike 75 chainline, 1x only (32t)
Rear Brake (Rotor)	74mm post (160–180mm)
Rear Spacing	197 x 12mm thru-axle
Rear Axle	ø12 x 220L, TP= 1.5, TL = 20
Derailleur Hanger	FS2322
Bottle Mount Pairs	XS = 1, SM–XL = 2
Under Downtube Mount Pairs	XS–XL = 1
Top Toptube Mount Pairs	XS–XL = 1
Rear Rack Mounts, Lower	Yes, use Salsa Alternator Rack 170/177
Rear Rack Mounts, Upper	No, use Rack-Lock
Rear Fender Mounts	No
Optional Accessories	Split Pivot Top Cap Tool for Hanger
Fork Design Wheel/Tire Size	26 x 3.8–4.8
Fork Alternate Wheel/Tire Sizes	26 x 3.8-4.6, 27.5 x 3.0–4.0″, 29 x 2.25–3.0
Axle to Crown	483mm
Offset	51mm
Steerer Tube Size	28.6mm
Steerer Style	Tapered
Crown Seat Diameter	40mm
Front Brake (Rotor)	74mm post (160–203mm)
Front Spacing	150 x 15mm thru-axle
Front Axle Size	ø15 x 198L, TP=1.5, TL=9
Front Rack Mounts	165mm Low Rider
Front Fender Mounts	Yes, shared with rack
Accessory Mounts	Varies by fork spec, consult bike or frameset spec for fork spec and fork features

MUKLUK DEORE 11

QUICK VIEW

MUKLUK DEORE 11

税込￥335,500

BUILD KIT
FRAMESET
Frame	Mukluk Aluminum
Fork	Bearpaw
Color	Black
Rear Shock	N/A
DRIVETRAIN
Front Derailleur	N/A
Rear Derailleur	Shimano Deore M5100
Cassette	Shimano Deore M5100, 11–51t, 11-speed
Chain	KMC X11 EPT Anti-Rust
Crankset	Samox Direct Mount, 30t
Shifter	Shimano Deore M5100
Brakes and Rotors	SRAM Level brakes, SRAM CenterLine rotors (160 mm, 6-bolt)
COMPONENTS
Headset	FSA Orbit 1.5E NO.57E-T
Stem	Salsa Guide Trail, 35.0 mm clamp
Handlebar	RaceFace Chester 35 20mm rise, 780mm
Grips/Bar Tape	Salsa File Tread Lock-On
Seatpost	Salsa Guide
Saddle	WTB Volt Steel Medium 142x265mm
WHEELS
Front Wheel	SUNRinglé SRC 15 x 150 mm hub, SUNRinglé Mulefüt SL 80 mm rim
Rear Wheel	SUNRinglé SRC 12 x 197 mm hub, SUNRinglé Mulefüt SL 80 mm rim
Tires	45NRTH Dillinger 5, 26 x 4.6″ 60 TPI, Tubeless-Ready, Folding, Tan Wall, Custom Studdable
WEIGHT
Complete Bike Weight	33lbs for Medium

*Specification and pricing subject to change without notice.

FRAME SPECS
Design Wheel/Tire Size	26 x 4.33″ on up to 100mm rim
Alternative Wheel/Tire Sizes	26 x 3.8–4.8″ on up to 100mm rim; 27.5 x 3.0–4.0″; 29 x 2.3–3.0
Rigid Fork Length	483–486mm
Suspension Fork Length (Travel)	511mm (100mm)
Fork Offset	50–51mm
Headset-Upper	IS41
Headset-Lower	IS52
Seatpost	31.6mm
Seat Collar	35.0mm
Dropper Compatible (Routing)	Yes, internal
Front Derailleur Type	Compact 2x top-pull only
Front Derailleur Mount	High direct-mount (54mm offset) via removable bracket (included)
Bottom Bracket	100mm, threaded
Crankset (Max Ring)	75mm chainline fat bike cranks only 2x: 36/24t max; 1x: 32t max
Rear Brake (Rotor)	51mm standard (160–180mm rotors). Must use 160mm rear IS adapter with +20mm post mount adapter for 180mm rotor
Rear Spacing	197 x 12mm thru-axle
Rear Axle Size	12 x 229L, TP = 1.5, TL = 20
Derailleur Hanger	DS Thru Axle FS1374, NDS Thru Axle FS1382, SS Thru Axle FS1376, QR DS FS1312, QR NDS FS1313, QR SS FS1318
Bottle Mounts	2 per frame
Accessory Mounts	2 per frame
Stem Clamp	Ø28.6mm
Crown Race	Ø40mm
Front Brake (Rotor)	74mm post mount (160–180mm)
Front Spacing	150 x 15mm thru-axle
Front Thru-Axle	15 x 198L, TP = 1.5, TL = 9
Fork Bottle Mounts	2 Three-Pack bosses per fork

PARTS

フレーム

18 BEARGREASE CARBON FRAME FORK

QUICK VIEW

BLACKTHORN ALLOY FRAMESET

QUICK VIEW

TIMBERJACK FRAME

QUICK VIEW

TIMBERJACK TI FRAME

QUICK VIEW

CUTTHROAT

QUICK VIEW

CUTTHROAT

税込￥341,000

BUILD KIT
FRAMESET
Frame	Cutthroat Carbon V2
Fork	Cutthroat Carbon Deluxe V2
Color	Raw Carbon
Rear Shock	n/a
COMPONENTS
Headset	Cane Creek 40
WHEELS
Front Wheel	Deadbolt Ultralight Thru-Axle included
Rear Wheel	Deadbolt Ultralight Thru-Axle included
WEIGHT
Frameset Weight	TBD

*仕様および価格は予告なく変更される場合があります。

FRAME SPECS
Design Wheel x Tire Size	29 x 2.25″ (29 x 2.4″ Max) (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
Susp Fork Length (Travel)	506 mm (100 mm Travel)
Rigid Fork Length	483 mm
Fork Offset	51 mm
Front Spacing	110 x 15 mm Thru-axle
Front Brake (Rotor)	Flat mount (160–180 mm), flat mount frame standard (35 mm thickness), 42 mm bolt length
Front Rack Mounts	Yes, lowrider compatible. Salsa Down Under rack recommended.
Fork Accessory Mounts	Yes, one set of Three-Pack mounts on each fork leg
Headset, Upper	IS52
Seatpost	27.2 mm
Seat Collar	32.0 mm
Dropper Compatible (Routing)	Yes, internal
Front Derailleur Type	Road, braze-on, 2x, bottom-pull
Bottom Bracket	Press Fit BB92, 41 x 92 mm
Crankset (Max & Min Ring)	1x MTN Boost: 40t Max; 2x RD Boost outer ring: 46–50t, inner ring: 30–36t Oval chainrings subtract 2t from max
Rear Brake (Rotor)	Flat mount (140–160 mm), flat mount frame standard (25mm Thickness), 32 mm bolt length
Rear Spacing	148 x 12 mm Thru-axle
Rear Axle Size	Ø12 x 174, TP=1.5, TL=20
Derailleur Hanger	QBP #FS2322
Rear Rack Mounts	Yes, Salsa Rack Lock seatpost collar required. Salsa Wanderlust Rack recommended. Salsa Bent Rack Struts (part #RK8030) required for installation on 58 cm and 60 cm frames. Not compatible with Salsa Wanderlust HD Rack
Rear Fender Mounts	n/a
Water Bottle Mounts	Frames up to 54cm: 2 in main triangle. Frames 56cm and larger: 3 in main triangle.
Under Downtube Mount	Yes, two pair.
Top Tube Mounts	Yes, compatible with Salsa Top Tube bag.
Internal Dropper Post Routing	1x mechanical drivetrain: Route the dropper post cable through the drive side of the down tube. Di2 drivetrains: Move the battery to the down tube, routing it through the head tube, then route the dropper post cable through the drive side of the down tube.
External Dropper Post Routing	1x and 2x mechanical and Di2 drivetrains:Route the dropper post cable through the dynamo rear light holes on the non-drive side of the top

WARBIRD CARBON FRAMESET

QUICK VIEW

WARROAD CARBON FRAMESET

QUICK VIEW

MARRAKESH DROP BAR FRAME FORK

QUICK VIEW

VAYA FRAME FORK

QUICK VIEW

FARGO FRAME FORK

QUICK VIEW

FARGO TI FRAMESET

QUICK VIEW

FARGO TI FRAMESET

税込￥536,800

BUILD KIT
FRAMESET
Frame Fargo 3/2.5 seamless triple-butted Titanium
Fork Firestarter 110 Deluxe
Color Raw
COMPONENTS
Headset FSA Orbit ITA
Seatpost Salsa Lip-Lock seat post collar
WHEELS

Front Wheel Deadbolt UL thru axle
Rear Wheel Deadbolt UL thru axle
WEIGHT

Weight 6 lbs 2 oz (includes fork, headset, front/rear thru axles, seat collar, alternator plates)

*仕様および価格は予告なく変更される場合があります。

FRAME SPECS
Design Wheel/Tire Size
29 x 2.4
Alternative Wheel/Tire Size 27.5 x 3.0″ / 27.5 x 2.2″ with fender / 29 x 3.0″ (Small through X-Large) / 29 x 3.0″ (Small through X-Large)
Suspension Fork Length (Travel) 501–511mm (100 mm)
Rigid Fork Length 483–486mm
Fork Offset 45-51mm, Firestarter Carbon Boost (15 x 110 mm) fork features 51mm offset
Front Brake (Rotor) 180mm maximum rotor size
Headset-Upper ZS44
Headset-Lower EC44
Seatpost 27.2mm
Seat Collar 32mm
Front Derailleur Mount 148mm rear spacing: high direct-mount (29mm offset) Problem Solvers Bracket (FS1328) / 142mm rear spacing: high direct-mount (26.5mm offset) via 34.9mm clamp Problem Solvers Bracket (FS1323)
Bottom Bracket 73mm BSA, threaded
Crankset (Max Ring) 1x crankset: 36t max / Boost and 34t non-boost or 46t / Gates Belt Drive sprocket / 2x crankset: 42/28t max Boost and Non-Boost
Rear Brake (Rotor) 51mm I.S. (160–180mm)
Rear Spacing 148mm or 142mm thru-axle / 135mm QR with Alternator Reduction Plates
Rear Axle Size 148mm rear spaced: 12 x 180L, TP = 1.5**, TL = 20 / 142mm rear spaced: 12 x 174L, TP = 1.5**, TL = 20 / 135mm rear spaced: quick release / 142 & 135mm spacing require the use of Salsa Alternator Reduction plates (FS2360) **Pre-2022 Fargo models use Alternator plates and thru-axles with 1.75 TP (thread pitch). Both 1.5 and 1.75 TP plates are compatible with the Fargo frame. Ensure TP of plate and axle match before installing.
Derailleur Hanger QR = FS1312; TA = FS1385; SS = FS1318; SSTA = FS1375; L Rohloff = FS1371; TA Kit = FS1370
Frameset Weight 6 lb, 4 oz for size Large w/ fork and Lip-Lock

STORMCHASER

QUICK VIEW

STORMCHASER

税込￥211,200

BUILD KIT
FRAMESET
Frame	Stormchaser Aluminum
Fork	Stormchaser Carbon
Color	Black
COMPONENTS
Headset (Upper/Lower)	FSA No.42 ACB
Seatpost	Salsa Lip-Lock 32.0 mm seatpost collar
WHEELS
Front Axle	Salsa Deadbolt UL M12 x 120 mm thru-axle
Rear Axle	Salsa Deadbolt UL M12 x 167 mm thru-axle
WEIGHT
Frameset Weight	5lbs 12oz. for size 56cm, includes fork, headset, and axles

*仕様および価格は予告なく変更される場合があります。

FRAME SPECS
Design Wheel/Tire Sizes	700c x 42 mm
Alternate Wheel/Tire Sizes	700c x 32–50 mm; 650b x 47–50 mm
Suspension Fork Length (Travel)	N/A
Rigid Fork Length	420 mm
Fork Offset	51 mm
Headset, Upper	IS41
Headset, Lower	IS52
Seatpost	27.2 mm
Seatpost Collar	32.0 mm
Dropper Compatible (Routing)	Yes (internal)
Front Derailleur Clamp	N/A
Front Derailleur Type	N/A
Bottom Bracket	73 mm BSA, threaded
Crankset (Max Ring – Single Speed)	1x crankset, 40t max, Race Face/Easton 51 mm chainline, single speed only
Crankset (Max Ring – Geared)	1x crankset only, 38t max, 49 mm MTN chainline, 168 Q-factor min.
Front Brake (Rotor)	Flat mount frame standard, 35 mm thickness, 42 mm bolt length (160 mm rotor only)
Rear Brake (Rotor)	Flat mount frame standard, 20 mm thickness, 27 mm bolt length (140–160 mm rotor)
Rear Spacing	12 x 142 mm TA
Rear Axle Size	M12 x 167L, TP = 1.5, TL = 20 mm (NOTE, DOES NOT FIT SALSA DEABOLT W/ LEVER. DEADBOLT UL TOOLED AXLE ONLY)
Derailleur Hanger	Hanger 465, QBP# FS2322 (Requires geared Alternator Flat Mount Plate, QBP# FS0719, and Hanger Axle/Stud Kit, QBP# FS1181)
Rear Rack Mounts	Yes, universal rack rear compatible. Salsa Post-Lock seat collar required. Salsa Wanderlust Rack recommended.
Fender Mounts	Yes, required fender hardware included.
Max Tire Size with Fenders	700c x 47 mm
Water Bottle Mounts	Frames up to 56 cm: 2 in main triangle. Frames 57.5 cm and larger: 3 in main triangle.
Downtube Accessory Mounts	One
Top Tube Mounts	Yes, compatible with Salsa EXP Series Top Tube bag.
Stem Clamp	28.6 mm
Crown Race	Integrated SHIS 40, 36° Angle
Front Spacing	12 x 100 mm TA
Front Axle	M12 x 120L, TP = 1.5, TL = 12 mm
Three-Pack Mounts	One mount per fork leg.
Rack Mounts	165 mm Low-rider compatible. Salsa Down Under rack recommended.

2013 SALSA COLOSSAL 2 F/F BLUE
QUICK VIEW

2013 SALSA COLOSSAL 2 F/F BLUE

税込￥143,000

Wheelsize : 700c
Tire clearance : Clearance for up to 700c x 28mm tire
Fork : ENVE RD Disc Carbon, tapered
Headset-Upper : 1-1/8″ zero stack (ZS44/28.6)
Headset-Lower : 44mm external cup, tapered (EC44/40)
Seatpost : 27.2mm
Seat Collar : 30.0mm, Salsa Lip-Lock included
Front Derailleur : 28.6mm clamp, bottom pull
Bottom Bracket : PF30, 68mm
Crankset : Fits a double crankset, up to a 39t inner, and 54t outer
Front Brake : 74mm post-mount standard, minimum rotor size 140mm, maximum rotor size 160mm
Rear Brake : 51mm I.S., fits 140mm or 160mm rotors only
Front Spacing : 100 x 9mm QR
Rear Spacing : 135 x 10mm QR
Bottle Mounts 2 per frame 51/53/55 cm; 3 per frame 56/58/60cm
Derailleur Hanger : FS2310
Cable Routing Full brake housing under toptube. Derailleur cables along downtube
Frame Weight 51cm: 2120g,55cm: 2260g, 56cm: 2340g, 58cm: 2420g
Fork Weight w/Uncut Steerer 438g uncut (0.97 lb)
Color Bomb Pop Blue/Orange

フォーク

FIRESTARTER FORK
QUICK VIEW

FIRESTARTER FORK

税込￥20,350

Steerer Length 300mm(Steel)
Rake 45mm
Axle To Crown 483mm
Front Axle 9X100(Steel)
CROMOTO GRANDE 29″ 15MM TAPER FORK
QUICK VIEW
CROMOTO GRANDE 29″ 15MM TAPER FORK

税込￥35,200
- Axle to Crown Length: 483 mm
- Brake Mount (Fork): IS Disc Brake 160
- Crown Race: 40(1.5)
- Defined Color: Black
- Front Axle: 15mm Thru x 100mm
- Material: Chromoly Steel
- Offset: 45 mm
- Wheel Mount Center Offset (mm): 0
- Steerer Tube Length (mm): 260 mm
- Weight: 1080 g
- Wheel Size: 29″
BEARPAW FORK
QUICK VIEW

BEARPAW FORK

税込￥62,700

Steerer Length 260mm
Rake 51mm
Axle To Crown 483mm
Front Axle 15x150mm
KINGPIN DELUXE CARBON FORK
QUICK VIEW
KINGPIN DELUXE CARBON FORK

税込￥71,280
- High modulus carbon fiber construction
- Tapered 1-1/8” to 1-½” steerer tube
- Axle to Crown Length: 483mm
- Fork Rake: 51mm
- 150 x 15mm thru axle
- 160 minimum rotor size; 203mm maximum rotor size
- 26 x 5” maximum wheel/tire fit
- Dual sets of Three-Pack mounts on each fork leg for Anything Cages or water bottles
- Mid-blade mounts for low rider racks
- Internal routing for 150 boost dynamo hubs
FIRESTARTER 110 DELUXE CARBON FORK
QUICK VIEW
FIRESTARTER 110 DELUXE CARBON FORK

税込￥82,280
- High modulus carbon fiber construction
- Tapered 1-1/8” to 1-½” steerer tube
- Axle to Crown: 483mm
- Fork Rake: 51mm
- 110 x 15mm thru axle
- 160mm minimum rotor size; 180mm maximum rotor size
- 27.5 x 2.8-3.0” or 29 x 2.2-3.0” tire fit
- Dual sets of Three-Pack mounts on each fork leg for Anything Cages or water bottles
- Mid-blade mounts for low rider racks
- Internal routing for 110 boost dynamo hubs
- Fender mounts (compatible with 29 x 2.2” tire maximum)
CROMOTO GRANDE 29’ER FORK
QUICK VIEW
CROMOTO GRANDE 29’ER FORK

税込￥18,480

Salsa Cro Moto Grande Fork 29″.
- Disc only 29″ rigid fork
- Suspension corrected for 80mm travel fork
- Salsa Classico CroMoly
- Forward-facing, stainless steel dropouts
- 1-1/8″ threadless steerer (260mm)
- 468mm axle to crown
- 45mm rake
- ISO disc tabs
- Tire clearance = 90mm
- Fender eyelets
- 1080g with full-length steerer tube

ハンドルバー

RUSTLER RISER BAR
QUICK VIEW
RUSTLER RISER BAR

税込￥7,040
- Bar Clamp Diameter (mm): 31.8 mm
- Defined Color: Black
- Color: Black
- Rise: 20 mm
- Back Sweep (deg): 11 deg
- Upsweep: 6
- Material: Aluminum
- Lightweight and strong 6061-T6 alloy construction with bead-blasted finish
- Graduated lines for easy trimming
- 31.8mm clamp diameter with 93mm width for use with Salsa Anything Cradle and aerobars
- Signature 11 deg back, and 6 deg up sweep with 20mm rise
- Note: Rustler bars are not compatible with bar ends
RUSTLER DELUXE RISER BAR
QUICK VIEW
RUSTLER DELUXE RISER BAR

税込￥12,650
- Bar Clamp Diameter (mm): 31.8 mm
- Defined Color: Black
- Color: Black
- Rise: 20 mm
- Back Sweep (deg): 11 deg
- Upsweep: 6
- Material: Aluminum
- Lightweight and strong 7050-T76 series alloy construction with polished finish
- Graduated lines for easy trimming
- 31.8mm clamp diameter with 93mm width for use with Salsa Anything Cradle and aerobars
- Signature 11 deg back, and 6 deg up sweep with 20mm rise
- Note: Rustler bars are not compatible with bar ends
RUSTLER 2 BAR
QUICK VIEW

RUSTLER 2 BAR

税込￥9,130

Material AL-7050 Aluminum
Width 750mm
Rise 15mm
Sweep 11°Backsweep, 6°Upsweep
Handle-Clamp 31.8mm (93mm wide clamp area)
Control Mouting Area 215mm
Weight N/A
RUSTLER CARBON BAR
QUICK VIEW

RUSTLER CARBON BAR

税込￥26,950

Material Carbon
Width 740mm
Rise 15mm
Sweep 9°Backsweep, 4°Upsweep
Handle-Clamp 31.8mm (80mm wide clamp area)
Control Mouting Area 231mm
Weight N/A
SALT FLAT BAR
QUICK VIEW
SALT FLAT BAR

税込￥7,040
- Bar Clamp Diameter (mm): 31.8 mm
- Defined Color: Black
- Color: Black
- Rise: 0 mm
- Back Sweep (deg): 11 deg
- Upsweep: 6
- Material: Aluminum
- Lightweight and strong 6061-T6 alloy construction with bead-blasted finish
- Graduated lines for easy trimming
- 31.8mm clamp diameter with 100mm width for use with Salsa Anything Cradle and aerobars
- Signature 11 deg back, and 6 deg up sweep with zero rise
- Note: Salt Flat bars are not compatible with bar ends
SALT FLAT DELUXE BAR
QUICK VIEW
SALT FLAT DELUXE BAR

税込￥11,550
- Bar Clamp Diameter (mm): 31.8 mm
- Defined Color: Black
- Color: Black
- Rise: 0 mm
- Back Sweep (deg): 11 deg
- Upsweep: 6
- Material: Aluminum
- Lightweight and strong 7050-T76 series alloy construction with polished finish
- Graduated lines for easy trimming
- 31.8mm clamp diameter with 100mm width for use with Salsa Anything Cradle and aerobars
- Signature 11 deg back, and 6 deg up sweep with zero rise
- Note: Salt Flat bars are not compatible with bar ends
SALT FLAT CARBON BAR
QUICK VIEW
SALT FLAT CARBON BAR

税込￥26,950
- Bar Clamp Diameter (mm): 31.8 mm
- Defined Color: Black
- Color: Carbon
- Rise: 0 mm
- Back Sweep (deg): 11 deg
- Upsweep: 6
- Material: Carbon
- Unidirectional carbon fiber construction
- Graduated lines for easy trimming
- 31.8mm clamp diameter with 140mm width for use with Salsa Anything Cradle and aerobars
- Signature 11 deg back, and 6 deg up sweep with zero rise
- Note: Salt Flat bars are not compatible with bar ends
BEND BAR DELUXE
QUICK VIEW
BEND BAR DELUXE

税込￥11,880
- Bar Clamp Diameter (mm): 31.8 mm
- Defined Color: Black
- Color: Black
- Rise: 0 mm
- Upsweep: 5
- Material: Aluminum
- Constructed using double-butted, AL-7050-T76 aluminum
- Bar sweeps forward, then back, to preserve stem length
- 5° upsweep allows adjustment to suit personal preference
- Bar can be flip-flopped to run up or down
- Graduated ends for easy trimming
- Bead-blast black finish

WOODCHIPPER DROP BAR 31.8

QUICK VIEW

グリップ / バーテープ

GEL CORK TAPE
QUICK VIEW

GEL CORK TAPE

税込￥3,410
GLYPH TAPE
QUICK VIEW

GLYPH TAPE

税込￥3,850

Long wearing
Extra length for wider bars
Anti-slip gel backing
Patterned with symbols of the good life
BACKCOUNTRY GRIP
QUICK VIEW

BACKCOUNTRY GRIP

税込￥1,540

Size 31x134mm
FAT FOAM LOCK-ON GRIPS
QUICK VIEW

FAT FOAM LOCK-ON GRIPS

税込￥2,750

33mm diameter
132mm length
Single-sided, open-end lock-on collar
35 grams per grip (including open-end lock-on collar)
BACKCOUNTRY LOCK-ON GRIP
QUICK VIEW

BACKCOUNTRY LOCK-ON GRIP

税込￥3,080

Size 31x134mm
Weight 52g (pair)

ステム

GUIDE STEM
QUICK VIEW

GUIDE STEM

税込￥5,390

Material AL-6061-T6 Aluminum
Length 70, 80, 90, 100, 110, 120mm
Angle 75/105°, 65/115°
Handle-Clamp 31.8mm
Weight N/A

GUIDE TRAIL STEM

QUICK VIEW

シフター / シフターマウント

HIGH DIRECT MOUNT FD COVER
QUICK VIEW

HIGH DIRECT MOUNT FD COVER

税込￥2,200

シートクランプ

LIP-LOCK
QUICK VIEW

LIP-LOCK

税込￥2,860

Weight 34g
NEW POST-LOCK
QUICK VIEW

NEW POST-LOCK

税込￥3,520

Seatpost’s Diameter 27.2mm, 31.6mm
Max Torque 3 – 5 N-m
Mount’s width 34mm
Weight 44g
NEW RACK-LOCK
QUICK VIEW

NEW RACK-LOCK

税込￥3,850

素材 6061 Aluminum
Weight 44g (30mm)
FLIP-LOCK
QUICK VIEW

FLIP-LOCK

税込￥4,620

Weight 44g

ホイール / クイックリリース

TITANIUM FLIP-OFF SKEWER

QUICK VIEW

FLIP-OFF SKEWER

QUICK VIEW

SKEWER SPRING
QUICK VIEW

SKEWER SPRING

税込￥935

ハブ

FAT CONVERSION 150 FRONT HUB
QUICK VIEW

FAT CONVERSION 150 FRONT HUB

税込￥20,350

Hub/Brake Compatibility 6-Bolt Disc
Front Axle Type 15 x 150mm Thru-Axle
Front Hub Spacing 150 mm
Rotor/Brake Spacing Standard Front
Flange Diameter 58mm
Left Center to Flange 43mm
Right Center to Flange 44mm
こちら をクリック下さい。　　
ENABLER FRONT HUB
QUICK VIEW

ENABLER FRONT HUB

税込￥20,350

Hub/Brake Compatibility 6-Bolt Disc
Hub Spacing 135 mm
Weight 226g (skewer無）, 291g (skewer付）
こちら をクリック下さい。

ハブスモールパーツ

DEADBOLT ULTRALIGHTE THRU-AXLE
QUICK VIEW

DEADBOLT ULTRALIGHTE THRU-AXLE

税込￥5,060

Material 7000 series aluminum (CNC-machined)
Color Black
Weight 36
DEADBOLT THRU-AXLE
QUICK VIEW

DEADBOLT THRU-AXLE

税込￥6,380

Material 7000 series aluminum (CNC-machined)
Color Black
Weight 62
MR18307 SEALED CARTRIDGE BEARING
QUICK VIEW

MR18307 SEALED CARTRIDGE BEARING

税込￥1,870

内径 18mm
外径 30mm
厚さ 7mm
FRONT CONVERSION HUB END CAPS
QUICK VIEW

FRONT CONVERSION HUB END CAPS

税込￥3,080

こちら をクリック下さい。

スモールパーツ

ALTERNATOR SMALL PARTS
QUICK VIEW

ALTERNATOR SMALL PARTS

税込￥1,320
SALSA SINGLE FRAME PLUGS DROPPER ROUTING 5P
QUICK VIEW

SALSA SINGLE FRAME PLUGS DROPPER ROUTING 5P

税込￥770

ドロッパールーティング用フレームプラグアソートパック。

・穴あり x3

・穴なし x2

ディレイラーハンガー

ALTERNATOR PLATE
QUICK VIEW

ALTERNATOR PLATE

税込￥4,070

ALTERNATOR 2.0

QUICK VIEW

ALTERNATOR 2.0

税込￥4,070

FS2352:
Salsa Alternator 2.0 Dropout Plate Right Adjustable Thru-Axle TP1.75
Thru-axle tread pitch = 1.75
Allows for the rear axle location to be adjusted through a ~17mm range relative to the bottom bracket axle
Note: This part number only includes a single Alternator 2.0 plate. Plates must be paired with the appropriate hardware kit

FS2353:
Salsa Alternator 2.0 Dropout Plate Right Adjustable Thru-Axle TP1.5
Thru-axle tread pitch = 1.5
Allows for the rear axle location to be adjusted through a ~17mm range relative to the bottom bracket axle
Note: This part number only includes a single Alternator 2.0 plate. Plates must be paired with the appropriate hardware kit

FS2354:
Salsa Alternator 2.0 Dropout Plate Right Fixed Position Thru-Axle TP1.75
Thru-axle tread pitch = 1.75
Allows for the rear axle location to be adjusted through a ~17mm range relative to the bottom bracket axle via two fixed position options
Note: This part number only includes a single Alternator 2.0 plate. Plates must be paired with the appropriate hardware kit

FS2355:
Salsa Alternator 2.0 Dropout Plate Right Fixed Position Thru-Axle TP1.5
Thru-axle tread pitch = 1.5
Allows for the rear axle location to be adjusted through a ~17mm range relative to the bottom bracket axle via two fixed position options
Note: This part number only includes a single Alternator 2.0 plate. Plates must be paired with the appropriate hardware kit

FS2356:
Salsa Alternator 2.0 Dropout Plate Left Adjustable Thru-Axle
Allows for the rear axle location to be adjusted through a ~17mm range relative to the bottom bracket axle
Note: This part number only includes a single Alternator 2.0 plate. Plates must be paired with the appropriate hardware kit

FS2357:
Salsa Alternator 2.0 Dropout Plate Left Fixed Position Thru-Axle
Allows for the rear axle location to be adjusted through a ~17mm range relative to the bottom bracket axle via two fixed position options
Note: This part number only includes a single Alternator 2.0 plate. Plates must be paired with the appropriate hardware kit

GEAR

ボトル / ボトルケージ

SIDE ENTRY WATER BOTTLE CAGE
QUICK VIEW

SIDE ENTRY WATER BOTTLE CAGE

税込￥1,980

Materials 6463 T5 Aluminum

Weight 43g
ANYTHING CAGE HD WITH EXP RUBBER STRAPS
QUICK VIEW

ANYTHING CAGE HD WITH EXP RUBBER STRAPS

税込￥5,610

キャリア / バスケット

EXP SERIES ANYTHING CRADLE FRONT POUCH

QUICK VIEW

ANYTHING CAGE BAG（2021）
QUICK VIEW

ANYTHING CAGE BAG（2021）

税込￥5,170

EXP SERIES DRY BAG

QUICK VIEW

EXP SERIES ANYTHING CRADLE PLUS DRY BAG

QUICK VIEW

EXP SERIES ANYTHING CRADLE

QUICK VIEW

EXP SERIES ANYTHING CRADLE STRAPS

QUICK VIEW

DOWN UNDER RACK
QUICK VIEW

DOWN UNDER RACK

税込￥8,800

Material Tubular 6061-T6 aluminum construction
Maximum recommended Load 15 kg
こちら をクリック下さい。
DOWN UNDER HD RACK
QUICK VIEW

DOWN UNDER HD RACK

税込￥14,300

Material Tubular 4130 CroMoly construction
Maximum recommended Load 25 kg
ALTERNATOR RACK
QUICK VIEW

ALTERNATOR RACK

税込￥16,500

Material Tubular 6061-T6 aluminum construction
Rear End Spacing 135mm, 170mm, 190mm
Deck Size 135x325mm
Maximum recommended Load 15 kg
Weight 765g
こちら をクリック下さい。
ALTERNATOR RACK 135 LOW DECK
QUICK VIEW

ALTERNATOR RACK 135 LOW DECK

税込￥17,380
WANDERLUST RACK
QUICK VIEW

WANDERLUST RACK

税込￥13,200

Material Tubular 6061-T6 aluminum construction
Wheel Size 26” or 700c
Maximum recommended Load 15 kg
Weight 1044g
こちら をクリック下さい。
WANDERLUST HD RACK
QUICK VIEW

WANDERLUST HD RACK

税込￥18,700

Material Tubular 4130 CroMoly construction
Wheel Size 26” or 700c
Maximum recommended Load 25 kg
Weight N/A
こちら をクリック下さい。
RACK SMALL PARTS
QUICK VIEW

RACK SMALL PARTS

税込￥1,320

RK8018 Long Rack Struts 8 x 370mm Black
RK8030 Bent Rack Struts 45°8mm Black
RK8031 Lower Mount Kit
RK8032 8mm Strut Mount Kit

雑誌

THE BIKEPACKER’S GUIDE
QUICK VIEW

THE BIKEPACKER’S GUIDE

税込￥1,650

バッグ

ANYTHING CAGE HD WITH EXP RUBBER STRAPS
QUICK VIEW

ANYTHING CAGE HD WITH EXP RUBBER STRAPS

税込￥5,610
EXP-R Series Fireweed Handlebar Bag
QUICK VIEW
EXP-R Series Fireweed Handlebar Bag

税込￥9,460
- ハンドルバーの前面または下に取り付け可能
- 付属のスペーサーにより、スマートなケーブル配線が可能
- 安定感あるテーパードデザイン
- bluesign®️1000Dコーデュラナイロンボディ
- 片手で操作可能
- 必需品にすばやくアクセスできる4方向ストレッチメッシュのフロントポケットとサイドポケット
- 耐久性のあるジッパー
- TPUコーティングされたウェビングストラップ2本とバンジーコードヘッドチューブアタッチメント1本(付属)を備えたマウント
- 長さ8”×高さ5.5”x幅4”/2.8L
EXP-R Series Trillium Top Tube Bag
QUICK VIEW
EXP-R Series Trillium Top Tube Bag

税込￥6,380
- 互換性のあるサルサバイクとの直接取り付けが可能(Direct Mount Thumb Screw付属)
- すべてのサルサバイクと非サルサバイクに対応、面ファスナー付属
- bluesign®️1000Dコーデュラナイロンボディ
- 片手で操作可能
- 必需品にすばやくアクセスできる4方向ストレッチメッシュの外部ポケット
- ライダーとの接触を避ける前後幅が異なるテーパードデザイン
- 2つのサイズ(大と小)で利用可能
- Large:(1.13L)寸法:長さ283mm/高さ100mm（メーカー値）
- Small:(0.7L)寸法:長さ209mm/高さ92mm（メーカー値）
EXP-R Series Bag Bundle
QUICK VIEW
EXP-R Series Bag Bundle

税込￥25,300
- Campion Frame Bag、Fireweed Handlebar Bag、Trillium Top Tube Bag(Small)のセット
- バッグ本体はbluesign®️1000Dコーデュラナイロン製
- すべての取り付けストラップとTrillium Top Tube Bag(Small)にはDirect Mount Thumb Screwが含まれています
EXP-R Series Cattail Rear Top Tube Bag
QUICK VIEW
EXP-R Series Cattail Rear Top Tube Bag

税込￥4,730
- ボディはbluesign®️1000Dコーデュラナイロン製
- 片手で操作可能
- 面ファスナーストラップ3本付きマウント(付属)
- 長さ6 “×高さ5 “×幅 1～3 / 4 “
- 容量:0.95L
EXP-R Series Campion Frame Bag
QUICK VIEW
EXP-R Series Campion Frame Bag

税込￥11,110
- フレームサイズに合わせて、前後を入れ替えできる
- ボディはbluesign®1000Dコーデュラナイロン製
- 片手で操作可能
- ドライブ側に大きな容積、非ドライブ側スラッシュポケット
- 必需品にすばやくアクセスできる4方向ストレッチメッシュの外部ポケット
- 耐久性のあるジッパーに保護レインフラップ
- TPUコーティングされたウェビングストラップ3本付きマウント(付属)
- トップチューブ11.3”/ ダウンチューブ7.8”
- 容量:1.67L
EXP Series Cholla Half-Frame Bag
QUICK VIEW
EXP Series Cholla Half-Frame Bag

税込￥15,620
- 互換性のあるサルサバイクとの直接取り付けが可能(Direct Mount Thumb Screw付属)
- すべてのサルサバイクと非サルサバイクに対応、面ファスナー付属
- 6つのサイズ展開で、小さなフレームから大きなフレームまでをカバー
- bluesign®️1000Dコーデュラナイロンボディ
- bluesign®️400Dナイロン裏地
- 耐久性のあるジッパー
- カットソー構造
- ドライブ側に大きな容積、非ドライブ側スラッシュポケット
- 2本のボトル用を取り付け可能にする設計
- SIZE1:トップ14.5″/ボトム8.9″/リア1.5″/1L
- SIZE2:トップ15.7″/ボトム10.7″/リア2.1″/1.3L
- SIZE3:トップ16.8″/ボトム11.9″/リア2.8″/1.7L
- SIZE4:トップ18.4″/ボトム13.3″/リア3.5″/2L
- SIZE5:トップ18.9″/ボトム14.1″/リア3.5″/2.1L
- SIZE6:トップ20.5″/ボトム14.9″/リア3.7″/2.9L
EXP Series Agave Pannier
QUICK VIEW
EXP Series Agave Pannier

税込￥16,500
- 防水コーティングされた400Dナイロン
- 圧着防水構造
- RixenとKaulのハードウェアで安定したフィット感を実現
- フィット感を調節できるハードウェアシムが付属
- 4方向ストレッチメッシュアウターポケット
- 視認性のための反射性サイドパッチ
- ヒールストライクを避けるように設計されています
- 容量：12.5L
- 単品販売
EXP Series Saguaro Dry Bag
QUICK VIEW
EXP Series Saguaro Dry Bag

税込￥7,150
- 210Dナイロン防水素材
- 圧着構造
- エア抜きバルブ
- ミディアム(9リットル)とラージ(14リットル)の2つのサイズがあります
- Saguaro Seat Bag Holsterで使用するために設計されています

EXP SERIES ANYTHING CRADLE FRONT POUCH

QUICK VIEW

EXP SERIES DRY BAG

QUICK VIEW

EXP ANYTHING CRADLE TOPLOAD DRY BAG
QUICK VIEW

EXP ANYTHING CRADLE TOPLOAD DRY BAG

税込￥9,680

EXP SERIES ANYTHING CRADLE PLUS DRY BAG

QUICK VIEW

EXP SERIES ANYTHING CRADLE

QUICK VIEW

EXP SERIES DIRECT MOUNT TOPTUBE BAG
QUICK VIEW

EXP SERIES DIRECT MOUNT TOPTUBE BAG

税込￥10,780

長さ：190ｍｍ

幅：上部30ｍｍ、底部50ｍｍ

高さ：前面80ｍｍ、後面55ｍｍ

容量：1.1リットル

重量：72ｇ（ボルトなど付属品を含まない）

素材：400Dナイロン（TPUラミネートとPUコーティングで耐久性を向上）

締め付けトルク：2-3Ｎｍ

EXP SERIES TOPTUBE BAG

QUICK VIEW

EXP SERIES HALF PACK BAG

QUICK VIEW

EXP SERIES SEATPACK

QUICK VIEW

EXP Series Hardtail Framepack

QUICK VIEW

EXP Series Fat Hardtail Framepack

QUICK VIEW

EXP SERIES ANYTHING CRADLE STRAPS

QUICK VIEW

APPAREL

グローブ

DAW PATROL HANDUP GLOVES
QUICK VIEW

DAW PATROL HANDUP GLOVES

税込￥5,720
TEAM POLYTONE HANDUP GLOVES
QUICK VIEW

TEAM POLYTONE HANDUP GLOVES

税込￥5,720

キャップ / ニットキャップ

OUTBACK HAT
QUICK VIEW

OUTBACK HAT

税込￥5,720
DAWN PATROL HAT
QUICK VIEW

DAWN PATROL HAT

税込￥4,620
BLOCK HAT
QUICK VIEW

BLOCK HAT

税込￥5,720
PLANET WILD HAT
QUICK VIEW

PLANET WILD HAT

税込￥4,620
LATITUDE CYCLING CAP
QUICK VIEW

LATITUDE CYCLING CAP

税込￥4,620
TEAM POLYTONE CYCLING CAP
QUICK VIEW

TEAM POLYTONE CYCLING CAP

税込￥4,620
GRAVEL STORIES CYCLING CAP
QUICK VIEW

GRAVEL STORIES CYCLING CAP

税込￥4,158

Tシャツ

MEN’S BLOCK T SHIRT
QUICK VIEW

MEN’S BLOCK T SHIRT

税込￥4,950
MEN’S MEANDER T-SHIRT
QUICK VIEW

MEN’S MEANDER T-SHIRT

税込￥3,630
WOMEN’S MEANDER T-SHIRT
QUICK VIEW

WOMEN’S MEANDER T-SHIRT

税込￥3,630
MEN’S GRAVEL ICONS T-SHIRT
QUICK VIEW

MEN’S GRAVEL ICONS T-SHIRT

税込￥3,630
WOMEN’S GRAVEL ICONS T-SHIRT
QUICK VIEW

WOMEN’S GRAVEL ICONS T-SHIRT

税込￥3,630
MEN’S SUMMIT T-SHIRT
QUICK VIEW

MEN’S SUMMIT T-SHIRT

税込￥3,630
WOMEN’S SUMMIT T-SHIRT
QUICK VIEW

WOMEN’S SUMMIT T-SHIRT

税込￥3,630
MEN’S PEPPER GLOBE GALAXY T-SHIRT
QUICK VIEW

MEN’S PEPPER GLOBE GALAXY T-SHIRT

税込￥3,850
WOMEN’S PEPPER GLOBE GALAXY T-SHIRT
QUICK VIEW

WOMEN’S PEPPER GLOBE GALAXY T-SHIRT

税込￥3,850
BIKEPACKING DREAMS T-SHIRT
QUICK VIEW

BIKEPACKING DREAMS T-SHIRT

税込￥4,400
KID’S PLANET WILD T SHIRT
QUICK VIEW

KID’S PLANET WILD T SHIRT

税込￥4,180
MEN’S PLANE WILD T SHIRT
QUICK VIEW

MEN’S PLANE WILD T SHIRT

税込￥4,950
UNISEX CASSIDY 3/4 SLEEVE TEE
QUICK VIEW

UNISEX CASSIDY 3/4 SLEEVE TEE

税込￥4,048
OUTBACK UNISEX 3/4 TEE
QUICK VIEW

OUTBACK UNISEX 3/4 TEE

税込￥5,720

シャツ

DEVOUR MEN’S S/S JERSEY ORG FADES
QUICK VIEW

DEVOUR MEN’S S/S JERSEY ORG FADES

税込￥9,900
Tundra Buds Unisex Long Sleeve T-shirt
QUICK VIEW

Tundra Buds Unisex Long Sleeve T-shirt

税込￥5,478

カジュアルシャツ

FOR THE LOVE OF DIRT BASEBALL SHIRT
QUICK VIEW

FOR THE LOVE OF DIRT BASEBALL SHIRT

税込￥4,950

ベスト

MEN’S TEAM POLYTONE VEST
QUICK VIEW

MEN’S TEAM POLYTONE VEST

税込￥31,900

レーシングジャージ / パンツ

MEN’TEAM POLYTONE LONG SLEEVE JERSEY
QUICK VIEW

MEN’TEAM POLYTONE LONG SLEEVE JERSEY

税込￥31,900
TEAM POLYTONE WOMEN’S LONG SLEEVE JERSE
QUICK VIEW

TEAM POLYTONE WOMEN’S LONG SLEEVE JERSE

税込￥31,900
MILD KIT JERSY GREEN MEN’S
QUICK VIEW

MILD KIT JERSY GREEN MEN’S

税込￥15,609
LATITUDE MEN’S JERSEY
QUICK VIEW

LATITUDE MEN’S JERSEY

税込￥15,609
LATITUDE WOMEN’S JERSY
QUICK VIEW

LATITUDE WOMEN’S JERSY

税込￥15,609
GRAVEL STORY JERSEY MEN’S RED/BL
QUICK VIEW

GRAVEL STORY JERSEY MEN’S RED/BL

税込￥15,609
GRAVEL STORY JERSEY MEN’S WH/BK
QUICK VIEW

GRAVEL STORY JERSEY MEN’S WH/BK

税込￥15,609
GRAVEL STORY JERSEY WOMEN’S WH/BK
QUICK VIEW

GRAVEL STORY JERSEY WOMEN’S WH/BK

税込￥15,609
GRAVEL STORY BIB SHORT MEN’S BLUE
QUICK VIEW

GRAVEL STORY BIB SHORT MEN’S BLUE

税込￥20,878
GRAVEL STORY BIB SHORT MEN’S WHITE
QUICK VIEW

GRAVEL STORY BIB SHORT MEN’S WHITE

税込￥20,878
GRAVEL STORY BIB SHORT WOMEN’S WHITE
QUICK VIEW

GRAVEL STORY BIB SHORT WOMEN’S WHITE

税込￥20,878

ソックス

TEAM POLYTONE SOCKS
QUICK VIEW

TEAM POLYTONE SOCKS

税込￥3,300
LATITUDE SOCKS
QUICK VIEW

LATITUDE SOCKS

税込￥3,300

FRAME SPECS
Design Wheel/ Tire Size	700 x 40mm max w/ fenders
Alternate Wheel/ Tire Size	700 x 50.8mm w/o fenders
Rigid Fork Length	415mm
Fork Offset	55mm
Headset-Upper	EC44
Headset-Lower	EC44
Seatpost	27.2mm
Seat Collar	30.0mm
Front Derailleur Type	Bottom pull
Front Derailleur Mount	Band clamp (Ø31.8mm)
Bottom Bracket	68mm BSA, threaded
Crankset	Mountain touring triple: 48/38/26t; any mountain 2x or 1x option available
Rear Brake (Rotor)	51mm I.S. mount, (160–180mm)
Rear Spacing	135 x 10mm QR
Derailleur Hanger	QR = FS1312 (driveside)/ FS1313 (non-driveside), L Rohloff = FS1371
Bottle Mounts	3
Stem Clamp	Ø28.6mm
Crown Race	Ø30mm
Front Brake (Rotor)	51mm standard, (160–180mm)
Front Spacing	100 x 9mm QR
Rack/Bottle Mounts	3-Pack boss set on each leg and 165mm standard low rider boss set on each leg (Cannot be used simultaneously)

Design Wheel/Tire Size	26 x 4.0″ on 82mm rim
Alternative Wheel/Tire Sizes	26 x 3.8-4.6″ on up to 100mm rim (1x drivetrain only) 27.5 x 3.0-4.0″ on up to 80mm rim 29 x 2.25-3.0″
Suspension Fork Length (Travel)	501-511 mm (100 mm)
Rigid Fork Length	483-486 mm
Fork Offset	50-51 mm
Headset – Upper	IS41
Headset – Lower	IS52
Seatpost	27.2 mm
Seat Collar	35.0 mm
Front Derailleur Type	Compact 2x, top-pull only
Front Derailleur Mount	High direct mount (43.5 mm offset) via ø35 mm clamp Problem Solvers (FS2324)
Bottom Bracket	PressFit 41 x 121 mm
Crankset	2x: 36/24t max fatbike version, 1x: 32t max fatbike version
Rear Brake (Rotor)	74 mm post (140 – 160 mm)
Rear Spacing	177 x 12 mm thru-axle
Rear Thru-Axle	12 x 208L, TP = 1.5, TL = 20
Derailleur Hanger	FS2323
Bottles	SM = 1, MD-XL = 2
Stem Clamp	ø28.6 mm
Crown Race	ø40 mm
Front Brake (Rotor)	74 mm post mount (160-180 mm)
Front Spacing	150 x 15 mm thru-axle
Front Thru-Axle	15 x 198L, TP = 1.5, TL = 9

Frameset
Frame	Blackthorn Aluminum
Color	Brushed Raw Aluminum
Rear Shock	RockShox Super Deluxe Select+
Seat Post Collar	Salsa Lip-Lock seat collar, 35.4mm
Rear Thru-Axle	Salsa Deadbolt rear thru axle, 12 x 197 mm

Size	SM	MD	LG	XL
Stem Length	50mm	50mm	50mm	50mm
Crank Length	170mm	170mm	175mm	175mm
Handlebar Width	see build kit	see build kit	see build kit	see build kit
Seatpost Offset	0mm	0mm	0mm	0mm

Design Wheel/Tire Sizes	29 x 1.9–2.6″
Alternate Wheel/Tire Sizes	27.5 x 2.8–3.0″
Suspension Fork Length (Travel)	140–160 mm
Fork Offset	42–51 mm
Rear Shock Size	210 x 52.5 mm
Shock Mount, Fore	Ø8 x 30mm
Shock Mount, Aft	No Bushing, Ø15
Pivot Kit(s)	1215, 1585, 1587, 1589, 1590, 1592, 1594
Bearings	17287 (Qty 4), 6801 (Qty 6)
Headset, Upper	ZS44
Headset, Lower	ZS56
Seatpost	30.9 mm
Max Post Insertion	SM = 195 mm, MD = 220 mm, LG = 245 mm, XL = 270 mm
Seatpost Collar	35.4 mm
Dropper Compatible (Routing)	Yes (internal)
Front Derailleur Clamp	N/A
Front Derailleur Type	N/A
Bottom Bracket	73 mm BSA, threaded
Crankset (Max Ring)	Super Boost 157, 55–57 mm chainline (34t)
Rear Brake (Rotor)	74 mm post mount (180–203 mm)
Rear Spacing	157 x 12 mm TA
Rear Axle Size	12 x 197 mm, TP = 1.75, TL = 20 mm
Derailleur Hanger	FS2322
Front Triangle Bottle Mounts	1
Top Tube Mounts	Yes, compatible with Salsa EXP Series Direct Mount Top Tube Bag.

Design Wheel/Tire Size	27.5 x 3.0″ max. (at 427mm rear center)
Alternative Wheel/Tire Size	29 x 2.6 max. (at 427 rear center)
Rigid Fork Length	483–502mm
Fork Offset	42–51mm
Headset-Upper	ZS44
Headset-Lower	AL: ZS56, Ti: EC44
Seatpost	AL: 30.9mm, Ti: 31.6mm
Seat Collar	35.0mm
Dropper Compatible (Routing)	Yes
Front Derailleur Mount	148mm rear spaced: high direct mount (29mm offset) via 34.9mm clamp Problem Solvers Bracket (FS1328) 142mm rear spaced: high direct mount (26.5mm offset) via 34.9mm clamp Problem Solvers bracket (FS1323)
Bottom Bracket	73mm BSA, threaded
Crankset (Max Ring)	1x crankset: 32t max. Boost or 30t max. Non-Boost, 2x crankset: 36/24t max. Boost and 36/24t Non-Boost
Rear Brake (Rotor)	51mm I.S., (160–180mm)
Rear Spacing	148mm; 142/135mm capable w/ Alternator Reduction Plates (FS2360)
Rear Axle Size	12 x 180L, TP = 1.75, TL = 20
Derailleur Hanger	QR = FS1312; TA = FS1373; SS = FS1318; SSTA = FS1375; L Rohloff = FS1371; TA Kit = FS1370
Rack Mounts	Yes w/ Alternator Rack System
Fender Mounts	No
Stem Clamp	28.6mm
Crown Race	40mm
Front Brake (Rotor)	N/A
Front Spacing	N/A

Design Wheel/Tire Size	27.5 x 3.0″ max (at 427mm rear center)
Alternative Wheel/Tire Size	29 x 2.6″ max (at 437mm rear center)
Suspension Fork Length (Travel)	511–541mm (100–130mm)
Rigid Fork Length	483–502mm
Fork Offset	45–51mm
Headset-Upper	ZS44
Headset-Lower	EC44
Seatpost	31.6mm
Seat Collar	35mm
Dropper Compatible (Routing)	Yes
Front Derailleur Mount	148mm rear spacing: high direct mount (29mm offset) Problem Solvers Bracket (FS1328) 142mm rear spacing: high direct mount (26.5mm offset) via 34.9mm clamp Problem Solvers Bracket (FS1323)
Bottom Bracket	73mm BSA, threaded
Crankset (Max Ring)	1x crankset: 32t max. BOOST or 30t max. Non-BOOST, 2x crankset: 36/24t max. BOOST
Rear Brake (Rotor)	51mm I.S., (160–180mm)
Rear Spacing	148mm or 142mm thru-axle 135mm QR with Alternator Reduction Plates
Rear Axle Size	148mm rear spacing: 12 x 180L, TP = 1.75, TL = 20 142mm rear spacing: 12 x 174L, TP = 1.75, TL = 20 135mm rear spacing: quick-release
Derailleur Hanger	QR = FS1312 TA = FS1374 SS = FS1318 SSTA = FS1375 Rohloff = FS1371 TA Kit = FS1370
Rack Mounts	Yes, via Alternator Rack System
Fender Mounts	No
Frame Weight	4 lb, 10 oz for Medium size w/ Lip-Lock

Frame Specs
Design Wheel/Tire Size	700x40mm max. w/ fenders
Alternative Wheel/Tire Sizes	700×50.8mm max. w/o fenders
Fork Length	415mm
Fork Offset	55mm
Headset-Upper	EC44
Headset-Lower	EC44/30
Seatpost	27.2mm
Seat Collar	30.0mm
Front Derailleur Type	Bottom-pull
Front Derailleur Mount	Band clamp (31.8mm)
Bottom Bracket	68mm BSA, threaded
Crankset	Mountain touring triple: 48/38/26t; any mountain 2x or 1x option available
Rear Brake (Rotor)	51mm I.S. mount, (160-180mm)
Rear Spacing	135x10mm quick-release
Derailleur Hanger	QR=FS1372, L Rohloff=FS1371
Bottle Mounts	3
Stem Clamp	28.6mm
Crown Race	30mm
Front Brake	51mm standard, (160-180mm)
Front Spacing	100x9mm QR
Front Thru-Axle	15 x 125L, TP = 1.5, TL = 12
Rack/Bottle Mounts	Three-Pack boss set each leg and 165mm standard low-rider boss set each leg (cannot be used simultaneously)

FRAME SPEC
Design Wheel/Tire Size	700c x 50mm w/o fenders
Alternative Wheel/Tire Sizes	700c x 45mm w/ fenders
Fork Length	405mm
Fork Offset	50mm
Headset – Upper	ZS44
Headset – Lower	EC44
Seatpost	27.2mm
Seat Collar	30mm

Front Derailleur Mount	Band clamp, 28.6mm, bottom pull

Bottom Bracket	68mm BSA, threaded

Crankset (Max Ring)	1x crankset: 46t max, 2x crankset: 53/39t max, 3x crankset: 53/39/30t max

Rear Brake (Rotor)	51mm standard, (140–160mm)

Rear Spacing	135mm
Rear Axle Size	10 x 135mm QR
Derailleur Hanger	FS2310
Rack Mounts	Yes
Fender Mounts	Yes, only compatible with QR fenders
Stem Clamp	28.6mm
Crown Race	40mm 36° Integrated Crown Race
Front Brake (Rotor)	Flat Mount 160, Flat Mount Rear Standard 35mm Thickness, 42mm Bolt Length
Front Spacing	100mm
Front Axle	Steel fork: quick release Carbon fork: thru-axle, M12 x 125 L, TP=1.5, TL=20mm
Bottle Mounts	3

FRAME SPEC
Design Wheel/Tire Size	29 x 2.4″
Alternative Wheel/Tire Sizes	27.5 x 3.0″, 29 x 2.4″ w/ fender (29 x 3.0″ only compatible on SM–XL frame sizes)
Suspension Fork Length (Travel)	501–511mm (100mm)
Rigid Fork Length	483–486mm
Fork Offset	45–51mm
Headset – Upper	ZS44
Headset – Lower	EC44
Seatpost	27.2mm
Seat Collar	Steel: 30mm Ti: 32mm

Front Derailleur Mount	148mm rear spaced: high direct mount (29mm offset) Problem Solvers Bracket (FS1328) 142mm rear spaced: high direct mount (26.5mm offset) via 28.6mm clamp Problem Solvers Bracket (FS1326)

Bottom Bracket	73mm BSA, threaded

Crankset (Max Ring)	1x crankset: 36t max Boost & 34t non-Boost or 46t Gates Belt Drive Sprocket, 2x crankset: 42/28t max Boost & Non-Boost

Rear Brake (Rotor)	51mm I.S. (160–180mm)

Rear Spacing	148 or 142mm thru-axle 135mm QR w/ Alternator reduction plates

Rear Axle Size	148mm rear spaced: 12 x 180L, TP = 1.75, TL = 20 142mm rear spaced: 12 x 174L, TP = 1.75, TL = 20 135mm rear spaced: quick release 142 & 135mm spacing require the use of Salsa Alternator Reduction plates (FS2360}

Derailleur Hanger	QR = FS1312; TA = FS1374; SS = FS1318; SSTA = FS1375; L Rohloff = FS1371; TA Kit = FS1370

Fender Mounts	Yes
Rack Mounts	Yes
Bottle Mounts	XS = 2, S–L = 3
Stem Clamp	28.6mm
Crown Race	40mm
Front Brake (Rotor)	74mm post mount (160–180mm)
Front Spacing	110 x 15mm thru-axle
Front Axle	ø15 x 135, TP=1.5, TL=12
Bottle Mounts	4 (3-Pack config)

FRAME SPECS
Design Wheel/Tire Size	29 x 2.4
Alternative Wheel/Tire Size	27.5 x 3.0″ / 27.5 x 2.2″ with fender / 29 x 3.0″ (Small through X-Large) / 29 x 3.0″ (Small through X-Large)
Suspension Fork Length (Travel)	501–511mm (100 mm)
Rigid Fork Length	483–486mm
Fork Offset	45-51mm, Firestarter Carbon Boost (15 x 110 mm) fork features 51mm offset
Front Brake (Rotor)	180mm maximum rotor size
Headset-Upper	ZS44
Headset-Lower	EC44
Seatpost	27.2mm
Seat Collar	32mm
Front Derailleur Mount	148mm rear spacing: high direct-mount (29mm offset) Problem Solvers Bracket (FS1328) / 142mm rear spacing: high direct-mount (26.5mm offset) via 34.9mm clamp Problem Solvers Bracket (FS1323)
Bottom Bracket	73mm BSA, threaded
Crankset (Max Ring)	1x crankset: 36t max / Boost and 34t non-boost or 46t / Gates Belt Drive sprocket / 2x crankset: 42/28t max Boost and Non-Boost
Rear Brake (Rotor)	51mm I.S. (160–180mm)
Rear Spacing	148mm or 142mm thru-axle / 135mm QR with Alternator Reduction Plates
Rear Axle Size	148mm rear spaced: 12 x 180L, TP = 1.5, TL = 20 / 142mm rear spaced: 12 x 174L, TP = 1.5, TL = 20 / 135mm rear spaced: quick release / 142 & 135mm spacing require the use of Salsa Alternator Reduction plates (FS2360) **Pre-2022 Fargo models use Alternator plates and thru-axles with 1.75 TP (thread pitch). Both 1.5 and 1.75 TP plates are compatible with the Fargo frame. Ensure TP of plate and axle match before installing.
Derailleur Hanger	QR = FS1312; TA = FS1385; SS = FS1318; SSTA = FS1375; L Rohloff = FS1371; TA Kit = FS1370
Frameset Weight	6 lb, 4 oz for size Large w/ fork and Lip-Lock

Bar Clamp Diameter (mm)	31.8 mm
Bar Drop (mm)	114mm
Bar Reach (mm)	56mm
Bar Top Style	Round
Drop Bend Style	Compact
Accessory Mount Diameter	31.8
Material	Aluminum
Weight	357g
Width Measurement	Center
Clip-on Compatible	Yes

Lightweight and strong 6061-T6 alloy construction with bead-blasted finish

Ergonomic design works well with integrated road shift/brake levers or bar-end shifters

31.8mm clamp diameter with 120mm width for use with Salsa Anything Cradle and aerobars

25 deg flare and 38 deg drop angles

Material	AL-6061-T6 Aluminum
Length	70, 80, 90, 100, 110, 120mm
Angle	75/105°, 65/115°
Handle-Clamp	31.8mm
Weight	N/A

3D-forged for increased strength, then CNC-machined
4-bolt faceplate design
Bead-blasted, then anodized, finish

Bar Clamp Diameter	31.8mm
Color	Black
Defined Color	Black
Material	AL-6061-T6 Aluminum
Length	40mm, 50mm, 60mm, 70mm, 80mm
Stem Angle (deg)	+3 deg , -3 deg
S.H.I.S. Stem Clamp Diameter	28.6mm
Stack Height	46mm
Weight	132g

Beautifully machined and hand friendly More than just eye candy, they’re hand candy, as well 6061-machined lever with stainless steel pivot and laser-etched logo

All shafts are 5mm in diameter Rear skewers fit either 130 or 135mm spaced hubs 40g for front, 44g for rear

Material	7000 series aluminum (CNC-machined)
Color	Black
Weight	36

FS2352: Salsa Alternator 2.0 Dropout Plate Right Adjustable Thru-Axle TP1.75
Thru-axle tread pitch = 1.75 Allows for the rear axle location to be adjusted through a ~17mm range relative to the bottom bracket axle Note: This part number only includes a single Alternator 2.0 plate. Plates must be paired with the appropriate hardware kit

FS2353: Salsa Alternator 2.0 Dropout Plate Right Adjustable Thru-Axle TP1.5
Thru-axle tread pitch = 1.5 Allows for the rear axle location to be adjusted through a ~17mm range relative to the bottom bracket axle Note: This part number only includes a single Alternator 2.0 plate. Plates must be paired with the appropriate hardware kit

FS2354: Salsa Alternator 2.0 Dropout Plate Right Fixed Position Thru-Axle TP1.75
Thru-axle tread pitch = 1.75 Allows for the rear axle location to be adjusted through a ~17mm range relative to the bottom bracket axle via two fixed position options Note: This part number only includes a single Alternator 2.0 plate. Plates must be paired with the appropriate hardware kit

FS2355: Salsa Alternator 2.0 Dropout Plate Right Fixed Position Thru-Axle TP1.5
Thru-axle tread pitch = 1.5 Allows for the rear axle location to be adjusted through a ~17mm range relative to the bottom bracket axle via two fixed position options Note: This part number only includes a single Alternator 2.0 plate. Plates must be paired with the appropriate hardware kit

FS2356: Salsa Alternator 2.0 Dropout Plate Left Adjustable Thru-Axle
Allows for the rear axle location to be adjusted through a ~17mm range relative to the bottom bracket axle Note: This part number only includes a single Alternator 2.0 plate. Plates must be paired with the appropriate hardware kit

FS2357: Salsa Alternator 2.0 Dropout Plate Left Fixed Position Thru-Axle
Allows for the rear axle location to be adjusted through a ~17mm range relative to the bottom bracket axle via two fixed position options Note: This part number only includes a single Alternator 2.0 plate. Plates must be paired with the appropriate hardware kit

Materials	500D Nylon with TPU lamination and PU coating, 1000D Polyester with dual sided TPU lamination, Duraflex hardware, #5 YKK waterproof zipper, nylon webbing
Construction Methods	Fully welded-in construction
Dimensions	Length- 250mm, Width- 150mm, Height- 50mm
Weight	160g
Volume	1.7L

EXP Series Anything Cradle Front Pouch The Exp Series Anything Cradle Front Pouch adds easy accessibility to the kinds of gear you rely on throughout the day on a bikepacking adventure. Fully welded-in construction for day in, day out abuse, and a buckle attachment design that fully integrates with our EXP Series Anything Cradle and EXP Series Dry Bag.
Features Designed for use with our EXP Series Anything Cradle and EXP Series Dry Bag system Extremely weather resistant welded-in design

Materials	420D Nylon with TPU lamination and PU coating
Construction Methods	Fully welded-in construction
Dimensions	Length- 850mm, Diameter-200mm
Weight	220g
Volume	15L

Features Slots and hook and loop for easy installation, Slots for straps to keep bag from moving sided to side when installed Waterproof welded-in design

Materials	Nylon 6/6 composite cradle, 6061 forged aluminum arms
Construction Methods	Injection-molded cradle and forged arms
Weight	420g with hardware, Max. Load Weight – 8 lbs (3.7 kgs)

EXP Series Anything Cradle, Straps, and Dry Bag The Anything Cradle is designed to be a superior solution to the dry bag and strap or handlebar rolls that folks have been accepting for years. The placement of the Anything Cradle holds your gear away from your bars. This creates room for cables and housing without fear of kinking, stressing, or otherwise damaging them. Your cockpit is free to remain adjusted as you prefer.
Features Modular system, use our EXP Series Dry Bags for the perfect carrying system or your own dry bag with a ladder strap system Works with or without front pouch “Ladder Lock” 3-slot strap weave design that eliminates straps from slipping Extremely versatile

FOLLOW US新商品やイベントなど最新情報をチェック！

EXP Series Anything Cradle with Straps The Anything Cradle is designed to be a superior solution to the dry bag and strap or handlebar rolls that folks have been accepting for years. The placement of the Anything Cradle holds your gear away from your bars. This creates room for cables and housing without fear of kinking, stressing, or otherwise damaging them. Your cockpit is free to remain adjusted as you prefer.
Features Modular system, use our EXP Series Dry Bags for the perfect carrying system or your own dry bag with a ladder strap system Works with or without front pouch “Ladder Lock” 3-slot strap weave design that eliminates straps from slipping Extremely versatile

Materials	Nylon 6/6 composite cradle, 6061 forged aluminum arms
Construction Methods	Injection-molded cradle and forged arms
Weight	420g with hardware, Max. Load Weight – 8 lbs (3.7 kgs)

EXP Series Anything Cradle Front Straps Anything Cradle Straps are the perfect width for our Anything Cradle, but can also be used to strap stuff down on racks or wherever the heck you want to strap stuff. They cinch tight but easily release tension with a push of the buckle. Carry a couple with you for your planned or unplanned strapping needs.

Materials	25mm nylon webbing, Duraflex hardware

Materials	25mm nylon webbing, Duraflex hardware

Features Anything Cradle Straps are the perfect width for our Anything Cradle, but can also be used to strap stuff down on racks or wherever the heck you want to strap stuff. They cinch tight but easily release tension with a push of the buckle. Carry a couple with you for your planned or unplanned strapping needs.

Total Volume	XL:275 in3
Weight	XL:370g
Number of Compartments	3
Waterproof	No

Drive side compartment for larger items

Non-drive side compartment with mesh pockets for organization of smaller items

Sewn in zipper for long-lasting durability with easy to use Salsa loop zipper pulls

Daisy chains and removable hook and loop straps allow for nearly universal fit

Opening in front of pack for hydration bladder or a light battery cord

Elastic cord on top for easy access to small items like food or a cue sheet

Weight	380g
Volume	6-14L

The EXP Series Seat pack keeps gear high, centered, and in line with you and your bike. Much like a dry bag or stuff sack, the EXP Series Seat pack fits a wide range of load sizes, and dutifully carries anything you need on your next two-wheeled mission.

Water-resistant welded construction with waterproof fabrics Roll type closure and air purging valve that allows for managing overall volume Stretch cord storage on top Durable 1000D material strategically placed in high wear areas

The EXP Series Framepack creates storage capacity in the main triangle of your frame, keeping weight centered, and gear out of the way of off-road obstacles. It’s built with extremely durable fabric and zippers, and the result will see you through many miles, and many adventures.

Weather resistant with fully welded-in #10 YKK waterproof zippers Internal hook and loop divider for separating gear and managing storage Exit port along downtube for use with water bladder or lights Non-driveside flat pocket for storage of maps, tools, phones, wallet, etc. Tapered at the front and along the bottom for maximum carrying capacity

The EXP Series Fat Framepack creates storage capacity in the main triangle of your frame, keeping weight centered, and gear out of the way of off-road obstacles. It’s built with extremely durable fabric and zippers, and the result will see you through many miles, and many adventures.

Weather resistant with fully welded-in #10 YKK waterproof zippers Internal hook and loop divider for separating gear and managing storage Exit port along downtube for use with water bladder or lights Non-driveside flat pocket for storage of maps, tools, phones, wallet, etc. Tapered at the front and along the bottom for maximum carrying capacity

Components
Headset	FSA Orbit NO.57E 1.5 ZS
Stem	Salsa Guide 31.8, 60 mm
Handlebar	Salsa Salt Flat 31.8, 750 mm width XS–SM; Salsa Rustler 31.8, 800 mm width M–XL
Grips	Salsa File Tread
Seatpost	TranzX YSP18PLQ 100 x 361 mm XS–SM; 130 x 425 mm MD–XL
Saddle	WTB Volt Medium, Steel, 142 x 265 mm

Weight
Complete Bike Weight	32 lb 10 oz (with tubes, no pedals) for Medium

Component Sizing
Size	XS	SM	MD	LG	XL
Stem Length	60mm	60mm	60mm	60mm	60mm
Crank Length	170mm	170mm	175mm	175mm	175mm
Handlebar Width	750mm	750mm	800mm	800mm	800mm
Seatpost Offset	0mm	0mm	0mm	0mm	0mm

Frameset
Frame	Vaya Triple-butted CroMoly Steel
Fork	Waxwing
Color	Black
Rear Shock	N/A
