BIKES

MTB

KRAMPUS

QUICK VIEW

KRAMPUS SUS　

QUICK VIEW

WEDNESDAY

QUICK VIEW

LOWSIDE

QUICK VIEW

OGRE

QUICK VIEW

KARATE MONKEY SUS 27.5

QUICK VIEW

KARATE MONKEY 27.5

QUICK VIEW

BRIDGE CLUB 27.5

QUICK VIEW

ICE CREAM TRUCK

QUICK VIEW

ICE CREAM TRUCK

税込￥412,500

Frame
Surly Ice Cream Truck, 100% Surly 4130 Chromoly steel.

Fork Surly Ice Cream Truck, 1-1/8″ straight steerer with tapered straight blade.

Seatpost Clamp Stainless 33.1 collar, Black

Headset
Cane Creek

Brakes SRAM DB Level TL Hydraulic or Tektro Gemini Hydraulic

Rotors 180F/160R

Shifter Shimano SLX SL-M7100

Stem Kalloy 31.8

Handlebar Salsa Rustler 31.8

Saddle Selle Italia

Seatpost
Kalloy 30.9mm

Crankset
Race Face Aeffect or Ride, 30t

Bottom Bracket Race Face

Front Derailleur N/A

Rear Derailleur Shimano SLX RD-M7100 12-Speed

Cog or cogset Shimano SLX 10-51t, 12-speed

Chain KMC X12

Front Hub
Novatec 150x15mm

Rear Hub OE 197x12mm, Shimano Microspline

Rims Surly My Other Brother Daryl Rims, 32h

Tires Surly Bud & Lou, 26 x 4.8″, 120tpi, tubeless ready

Frame Construction 4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated

Fork Construction 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated

Rear Dropout Configuration Horizontal slotted with optional vertical dumpout

Rear Hub Spacing 12 x 197mm (Surly axle included)10 x 190mm with Surly 10/12 Adapter Washers (not included)

Front Hub Spacing 15 x 150mm (Surly axle included)

Rear Brake Disc – 51mm I.S. (203mm max rotor)

Front Brake Disc – 51mm I.S. (203mm max rotor)

Head Tube Ø44mm

Steerer Tube Ø28.6mm (1-1/8″)

Crown Race Ø30mm (1-1/8″)

Stock Headset Upper (S.H.I.S.) ZS44/28.6

Stock Headset Lower (S.H.I.S.) EC44/30

Seat Collar Ø33.1mm

Seatpost Ø30.9mm

Front Derailleur (Clamp) High direct mount top-pull (Ø34.9mm) 55mm offset adapter (not included)

Max Chainring (CL)[3] 1x (Fat bike 190): 34T [6]2x (Surly OD): 22/36T

Bottom Bracket 100mm threaded (1.37″ x 24TPI)

Tire Clearance Frame [1]/[2] 26 x 5.1″ (rear axle position),26 x 4.8″ (front axle position),29 x 3.0″

Tire Clearance Fork [1] 26 x 5.25″, 29 x 3.0″

Rigid Fork Spec 483 x 47mm

Max Suspension Fork Length [4] 571 x 51mm (Fatbike 140mm)

Bottle Mounts Frame 1 Standard (XS – M), 2 Standard (L – XXL)

Bottle Mounts Fork 2 Three-Pack

Rack Mounts Frame Yes (upper and lower threaded)

Rack Mounts Fork Yes (upper, lower, and mid-blade threaded)

Fender Mounts Frame Yes

Fender Mounts Fork N/A

Other Features Internal dropper post routing compatible

GRAPPLER

QUICK VIEW

BRIDGE CLUB 700C

QUICK VIEW

ROAD

MIDNIGHT SPECIAL

QUICK VIEW

CROSS

PREAMBLE FLAT BAR

QUICK VIEW

PREAMBLE DROP BAR

QUICK VIEW

GRAVEL

MIDNIGHT SPECIAL

QUICK VIEW

FATBIKE

WEDNESDAY

QUICK VIEW

TOURING

WEDNESDAY

QUICK VIEW

OGRE

QUICK VIEW

BRIDGE CLUB 27.5

QUICK VIEW

BRIDGE CLUB 700C

QUICK VIEW

DISC TRUCKER 26″/700C

QUICK VIEW

OTHER

BIG DUMMY

QUICK VIEW

PARTS

フォーク

KRAMPUS/KARATE MONKEY 29″ THRU AXLE FORK

QUICK VIEW

KRAMPUS 29+ FORK BOSS MODEL

QUICK VIEW

OGRE 29″ FORK

QUICK VIEW

ECR 27.5+ FORK

QUICK VIEW

ECR 29+ FORK

QUICK VIEW

TROLL & BIG DUMMY 26″ FORK

QUICK VIEW

ICE CREAM TRUCK FORK

QUICK VIEW

WEDNESDAY FORK

QUICK VIEW

LONG HAUL TRUCKER 26″ FORK

QUICK VIEW

LONG HAUL TRUCKER 700C FORK

QUICK VIEW

DISC TRUCKER 26″ FORK

QUICK VIEW

DISC TRUCKER 700C FORK

QUICK VIEW

PACK RAT 26″ FORK

QUICK VIEW

PACK RAT 650B FORK

QUICK VIEW

MIDNIGHT SPECIAL 650B FORK

QUICK VIEW

CROSS-CHECK 700C FORK

QUICK VIEW

STRAGGLER 650B FORK

QUICK VIEW

STRAGGLER 700C FORK

QUICK VIEW

STEAMROLLER 700C FORK

QUICK VIEW

ハンドルバー

Corner Bar
QUICK VIEW

Corner Bar

税込￥18,700

Material: Chromoly
Clamp Diameter: 25.4mm
Brake Lever Compatibility: Mountain 22.2mm
Drop Bar Equivalent Width:
Drop Bar Flare: 41.4 degrees
Bar Drop: 94mm
Sweep Angle: 65.2 degree
SUNRISE HANDLEBAR
QUICK VIEW

SUNRISE HANDLEBAR

税込￥12,650

Material: CroMoly steel
Clamp diameter: 22.2mm; Includes shims for 31.8mm clamp
Width: 820mm; Can be cut to 720mm
Rise: 83mm
Sweep Angle: 14.7 degree backsweep, 6.7 degree upsweep
Weight: 778g (including shims)

TRUCK STOP BAR

QUICK VIEW

TERMINAL HANDLEBAR
QUICK VIEW

TERMINAL HANDLEBAR

税込￥14,850

Back Sweep 34 °

Bar Clamp Diameter 31.8 mm

Color Silver, Black

Weight 400 g

Lever Compatability Mountain 22.2 mm

Material Aluminum

Rise 40 mm

Width 735 mm
MOLOKO BAR
QUICK VIEW

MOLOKO BAR

税込￥17,380

Material: CroMoly steel

Clamp diameter: 31.8mm

Width: 735mm; Cut marks for 685mm

Rise: 27mm

Sweep Angle: 34 degrees

Weight: 709g
CHEATER BAR
QUICK VIEW

CHEATER BAR

税込￥18,480

Material: Cromoly steel
Clamp diameter: 31.8mm
Width: 780mm
Rise: 0mm
Sweep Angle: 11 degrees
Color: Clear Coat Silver , E.D. coated Black
Weight: 400g
OPEN BAR
QUICK VIEW

OPEN BAR

税込￥9,295

Clamp 25.4mm
Width 666mm
Angle 53°
Rise 0mm, 40mm

ブレーキ本体

TROLL/OGRE REAR DISC ADAPTER
QUICK VIEW

TROLL/OGRE REAR DISC ADAPTER

税込￥1,925

Brake Caliper Mount 74mm Post
Rotor Diameter Rear 160mm
Frame Mount 51mm IS Rear

ブレーキケーブル

STAINLESS CABLE HANGER
QUICK VIEW

STAINLESS CABLE HANGER

税込￥1,925

Material Stainless Steel
Weight N/A

スプロケット

NARROW WIDE X-SYNC RING
QUICK VIEW

NARROW WIDE X-SYNC RING

税込￥13,750

Material 304 Stainless Steel
Chainring BCD 58mm
STAINLESS STEEL CHAINRING
QUICK VIEW

STAINLESS STEEL CHAINRING

税込￥6,578

Material 304 grade stainless steel
BCD 94ｍｍ, 104mm, 110mm (6-8speed), 110mm, 130mm (6-9speed)

ボトムブラケット

O.D. ENDURO BOTTOM BRACKET
QUICK VIEW

O.D. ENDURO BOTTOM BRACKET

税込￥10,780

BB Shell Width Regular 73mm, Regular 100mm (Pugsley/frames offset for 4 tires), Moonlander 100mm (Moonlander/frames offset for 5 tires), Ice Cream Truck 132mm (Ice Cream Truck)
O.D. CRANK ENDURO BB CUP
QUICK VIEW

O.D. CRANK ENDURO BB CUP

税込￥10,780

チェーンテンショナー

HURDY GURDY
QUICK VIEW

HURDY GURDY

税込￥6,380

Material Investment cast of stainless steel
こちら をクリック下さい。

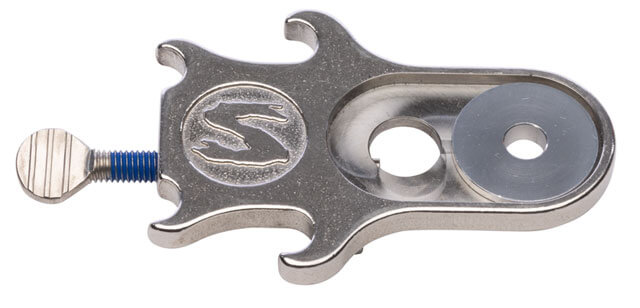

TUGGNUT CHAIN TENSIONER
QUICK VIEW

TUGGNUT CHAIN TENSIONER

税込￥5,478
TUGGNUT SS THUMB SCREW
QUICK VIEW

TUGGNUT SS THUMB SCREW

税込￥990
TUGGNUT QR ADAPTER
QUICK VIEW

TUGGNUT QR ADAPTER

税込￥550
SINGLEATOR SPRING
QUICK VIEW

SINGLEATOR SPRING

税込￥715
1X1 SINGLEATOR
QUICK VIEW

1X1 SINGLEATOR

税込￥9,295
SINGLEATOR UPGRADE KIT
QUICK VIEW

SINGLEATOR UPGRADE KIT

税込￥2,200

シートクランプ

NEW STAINLESS SEATCLAMP
QUICK VIEW

NEW STAINLESS SEATCLAMP

税込￥3,850

Material Stainless Steel

ハブ

ULTRA NEW NON-DISC HUBS
QUICK VIEW

ULTRA NEW NON-DISC HUBS

税込￥11,880

Hub Spacing 100mm
Axle Bolt-on & Q-R (compatible)
Axle 9x1mm
Brake Rim Brake
Right Center to Flange 32.5mm
Left Center to Flange 32.5mm
Right Flange Diameter 54mm
Left Flange Diameter 54mm
Weight N/A
Hub Spacing 135mm, 130mm, 120mm
Axle Bolt-on & Q-R (compatible)
Axle 10x1mm
Brake Rim Brake
Right Center to Flange 38.5mm (135mm), 31.5mm (130mm), 30mm (120mm)
Left Center to Flange 38.5mm (135mm), 33mm (130mm), 30mm (120mm)
Right Flange Diameter 54mm
Left Flange Diameter 54mm
Weight N/A
ULTRA NEW DISC HUBS
QUICK VIEW
ULTRA NEW DISC HUBS

税込￥15,730
- Front
- Hub Drilling: 32 or 36
- Hub/Brake Compatibility: 6-Bolt Disc
- Color: Black
- Spoke Interface: J-Bend
- Front Axle: QR x 100mm
- Center to Flange, Left: 22.8
- Center to Flange, Right: 32.2
- Flange Diameter, Right: 58
- Defined Color: Black
- Flange Diameter, Left: 58
- Weight: 280
- Rear
- Skewer Included: No
- Hub Drilling: 32
- Bearing Type: Sealed Cartridge
- Center to Flange, Right: 38.5
- Color: Black
- Hub/Brake Compatibility: 6-Bolt Disc
- Cassette Body Type: Threaded Standard 1.37″ x 24tpi
- Spoke Interface: J-Bend
- Center to Flange, Left: 34
- Flange Diameter, Right: 58
- Defined Color: Black
- Flange Diameter, Left: 58
- Rear Axle: 10×1 Threaded x 135mm
- Weight: 376

フリーホイール / コグ

TRACK COGS
QUICK VIEW

TRACK COGS

税込￥6,578

Tooth Thickness 3/32″, 1/8″
CASSETTE COGS
QUICK VIEW

CASSETTE COGS

税込￥6,578
TRACK LOCKRINGS
QUICK VIEW

TRACK LOCKRINGS

税込￥2,805
SINGLE SPEED SPACER KIT
QUICK VIEW

SINGLE SPEED SPACER KIT

税込￥8,415

タイヤ

EXTRA TERRESTRIAL 26 x 46 60tpi TIRE

QUICK VIEW

EXTRA TERRESTRIAL 700 x 41C 60tpi TIRE　　

QUICK VIEW

EDNA 26×4.3″ FATBIKE TIRE 60tpi

QUICK VIEW

KNARD TIRE 27.5 x 3.0″ 60 TPI
QUICK VIEW

KNARD TIRE 27.5 x 3.0″ 60 TPI

税込￥16,500

Color: Black

Defined Color: Black

Intended Use: Mountain

ISO Diameter: 584㎜ / 650b / 27.5″

Labeled Size: 27.5 x 3.0

Tire Bead: Folding

Tire Diameter: 27.5+

Tire Type: Clincher

TPI: 60
EXTRA TERRESTRIAL 29×2.5″ 60TPI TIRE
QUICK VIEW

EXTRA TERRESTRIAL 29×2.5″ 60TPI TIRE

税込￥13,750
EXTRA TERRESTRIAL 26×2.5″ 60TPI TIRE
QUICK VIEW

EXTRA TERRESTRIAL 26×2.5″ 60TPI TIRE

税込￥13,750

Flat Protection: Tread and Sidewall

ISO Diameter: 559 / 26″ mtn

ISO Width (mm): 64 mm

Intended Use: Mountain

Labeled Size: 26 x 2.5

PSI: 60

TPI: 60

Tire Bead: Folding

Tire Diameter: 26″

Tire Type: Tubeless Compatible
DIRT WIZARD TIRE
QUICK VIEW

DIRT WIZARD TIRE

税込￥13,750

【29″x3″ 】

ISO Diameter: 622 / road / 29″

ISO Width (mm): 70 mm

Labeled Size: 29 x 3

TPI: 60/120

Tire Bead: Folding

Tire Diameter: 29″

Tire Type: Tubeless Compatible

【27.5″×3″】

ISO Diameter: 584 / 650b / 27.5″

ISO Width (mm): 75 mm

Labeled Size: 27.5 x 3.0

PSI: 30

TPI: 60

Tire Bead: Folding

Tire Diameter: 27.5″

Tire Type: Tubeless Compatible

【26″x2.75″】

ISO Diameter: 559 / 26″ mtn

ISO Width (mm): 70 mm

Labeled Size: 26 x 2.75

PSI: 30

TPI: 120

Tire Bead: Folding

Tire Diameter: 26″

Tire Type: Clincher
KNARD TIRE
QUICK VIEW

KNARD TIRE

ISO Width 74mm (29”x3”), 94mm (26”x3.8”), 41mm (700cx41), 43mm (650bx41)
ISO Diameter 622 / 29” road (29”x3”), 559 / 26”mtb (26”x3.8”), 622 / 29” road (700cx41), 584 / 27.5” (650bx41)
推奨リム幅 50mm（29”), 50-100mm (26”), 23-30mm (700c), 23-30mm (650b)
BUD TIRE
QUICK VIEW

BUD TIRE

税込￥22,550

Beat Seat Diameter 559mm (fits rims 65-100mm)
Tire Bead 120tpi Kevlar
Weight 1.58kg

(TUBELESS READY)
LOU TIRE
QUICK VIEW

LOU TIRE

税込￥22,550

Beat Seat Diameter 559mm (fits rims 65-100mm)
Tire Bead 120tpi Kevlar
Weight 1.58kg

(TUBELESS READY)
NATE 26×3.8″
QUICK VIEW

NATE 26×3.8″

ETRTO 559mm (fits rims 50 100mm wide)
ISO Width 94 mm
ISO Diameter 559 / 26″ mtn
Tire Bead Folding
Weight 1395g (60tpi), 1350g (120tpi)

チューブ

PLUS AND FATBIKE TUBE
QUICK VIEW

PLUS AND FATBIKE TUBE

税込￥3,300

ISO Diameter: 559 / 26″ mtn

ISO Width (mm): 76 mm , 77 mm , 78 mm , 79 mm , 80 mm , 81 mm , 82 mm , 83 mm , 84 mm , 85 mm , 86 mm , 87 mm , 88 mm , 89 mm , 90 mm , 91 mm , 92 mm , 93 mm , 94 mm , 95 mm , 96 mm , 97 mm , 98 mm , 99 mm , 100 mm

Labeled Size: 26 x 3.0 – 4.8

Tube Compound: Butyl

Valve: Presta Short 32-40mm

Weight: 310 g
29X3 TUBE
QUICK VIEW

29X3 TUBE

税込￥3,300

Valve Presta （仏）

Valve Length Short 32-40mm

Weight: 390 g

ISO Diameter: 622 / Road / 29″

チューブレス

TUBELESS KIT
QUICK VIEW

TUBELESS KIT

税込￥4,730

ディレイラーハンガー

MDS DROPOUTS
QUICK VIEW

MDS DROPOUTS

税込￥5,060
STRAGGLER FRAME DROPOUT SCREWS
QUICK VIEW

STRAGGLER FRAME DROPOUT SCREWS

税込￥1,320
CROSS CHECK FRAME DROPOUT SCREWS
QUICK VIEW

CROSS CHECK FRAME DROPOUT SCREWS

税込￥1,320

スモールパーツ

BILL&TED HITCH MOUNT NUTS
QUICK VIEW

BILL&TED HITCH MOUNT NUTS

税込￥6,600
MONKEY NUTS V2.0
QUICK VIEW

MONKEY NUTS V2.0

税込￥3,740

GEAR

キャリア / バスケット

DECK PAD
QUICK VIEW

DECK PAD

税込￥4,840
DECK BAR
QUICK VIEW

DECK BAR

税込￥14,740
REAR DISC RACK STANDARD
QUICK VIEW

REAR DISC RACK STANDARD

税込￥25,080

Maximum Wheel Size 29+
Requires Eyelets Yes
Disc Brake Compatible Yes
Color Black
Weight Limit 30kg
Weight 1606 g
Tube Diameter 10mm
Platform Dimensions 35 x 15cm
Material 4130 CroMoly
REAR DISC RACK WIDE
QUICK VIEW

REAR DISC RACK WIDE

税込￥25,080

Maximum Wheel Size 26″ Fatbike
Requires Eyelets Yes
Disc Brake Compatible Yes
Color Black
Weight Limit 30kg
Weight 1699 g
Tube Diameter 10mm
Platform Dimensions 35 x 20cm
Material: 4130 CroMoly
KID CORRAL
QUICK VIEW

KID CORRAL

税込￥48,180
TV TRAY RACK PLATFORM
QUICK VIEW

TV TRAY RACK PLATFORM

税込￥12,100

Weight Limit 13.61 kg

Color Black

Material 6061-TB Aluminum

Weight 650 g
PETITE PORTEUR HOUSE BAG
QUICK VIEW

PETITE PORTEUR HOUSE BAG
ADJUNCT PERSONAL EFFECTS MOLOKO HANDLEBAR BAG
QUICK VIEW

ADJUNCT PERSONAL EFFECTS MOLOKO HANDLEBAR BAG

Attachment Method: Straps
Waterproof: No
Color: Black
Weight: 161 g
Primary Material: 1050D Nylon with urethane coating
24-PACK RACK
QUICK VIEW

24-PACK RACK

税込￥29,150

Weight Limit: 13.6 KG
Finish: ED Coating + Powdercoat
Rack Material: Tubular 4130 Cromoly
Platform Dimensions: 270 x 400mm
8-PACK RACK
QUICK VIEW

8-PACK RACK

税込￥24,750

Weight Limit: 13.6 KG
Finish: ED Coating + Powdercoat
Rack Material: Tubular 4130 Cromoly
Platform Dimensions: 270 x 160mm
NICE RACK HARDWARE SMALL PARTS
QUICK VIEW

NICE RACK HARDWARE SMALL PARTS
NICE RACK
QUICK VIEW

NICE RACK

税込￥20,350

Pannier support area 781平方cm (121平方inch) per side
Rack width 178mm outside to outside
Weight 1.34 kg (2.95 lb) with all the bolts and hardware as set up on a Long Haul Trucker
Height Adjustable to accomodate 26” to 29” wheels
Tubing diameter 10mm
Tubing material 100% 4130 cro-moly tubing, two thicknesses throughout rack
Hardware All stainless steel bolts, nuts, washers and attachment plates, aluminum spacers
Load weight limit 32 kg (70 lbs)
Pannier support area 616平方cm (95平方inch) per side
Rack width 160mm (6.3inch) outside to outside
Weight 1.11 kg (2.45 lb.) with all hardware and bolts
Height Adjustable to accomodate 26”, 700c and 29” wheels
Tubing diameter 10mm
Tubing material 100% 4130 cro-moly tubing, three thicknesses throughout rack
Hardware All stainless steel bolts, washers, tubing pieces and castings
Load weight limit 36 kg (80 lbs)

ツール

WHEEL BUILDING TOOL
QUICK VIEW

WHEEL BUILDING TOOL

税込￥1,925
JETHRO TULE
QUICK VIEW

JETHRO TULE

税込￥4,620
SINGLEATOR TOOL
QUICK VIEW

SINGLEATOR TOOL

税込￥1,925

バッグ

PETITE PORTEUR HOUSE BAG 2.0
QUICK VIEW

PETITE PORTEUR HOUSE BAG 2.0

税込￥15,180
PORTEUR HOUSE 2.0
QUICK VIEW

PORTEUR HOUSE 2.0

税込￥18,150
LITTLE DUMMY BAG
QUICK VIEW

LITTLE DUMMY BAG

税込￥13,750

https://www.instagram.com/reel/Cj25Gj1LlZx/

APPAREL

キャップ / ニットキャップ

WOOL CYCLING CAP
QUICK VIEW

WOOL CYCLING CAP

税込￥6,380

Tシャツ

LOGO TEE
QUICK VIEW

LOGO TEE

税込￥5,280

Frameset
Frame

Fork

Seatpost Clamp	Stainless 33.1 collar, Black

Components
Headset	Cane Creek

Brakes	SRAM Avid BB5 Mechanical, 160mm rotors front & rear

Brake Levers	SRAM Avid FR-5

Shifter	SRAM SX Eagle 12-spd

Stem	Kalloy 31.8

Handlebar	OE 31.8mm

Saddle	WTB Volt

Seatpost	Kalloy 30.9

Grip/Tape	Kalloy 30.9

Drivetrain
Crankset	SRAM NX Eagle DUB

Bottom Bracket	SRAM DUB

Front Derailleur	n/a

Rear Derailleur	SRAM SX Eagle

Cog or cogset	SRAM Eagle 11-50t

Chain	SRAM SX Eagle 12-spd

Wheels
Front hub	Novatec 15 x 150mm, 32h, 6-bolt

Rear hub	Novatec 12 x 177mm, 32h, 6-bolt

Rims	Surly My Other Brother Darryl

Tires	Surly Nate 26 x 3.8˝, 60tpi, tubeless ready

※バイクの仕様は変更されることがあります。

Frameset
Frame
Fork
Seatpost Clamp	Surly Stainless 33.1mm clamp
Components
Headset	Cane Creek
Brakes	Tektro Hydro M275/276
Brake Levers	Tektro
Rotors	Tektro 160/160mm
Shifters	N/A
Stem	Sunday Freeze top load 22.2mm clamp
Handlebar	Surly Sunrise
Grip/Tape	Velo Black
Saddle	Selle Italia Black
Seatpost	2 Bolt, 30.9mm
Drivetrain
Crankset	SRAM NX 32t
Bottom Bracket	SRAM PS
Front Derailleur	N/A
Rear derailleur	N/A
Cog or cogset	Surly 17t w/ spacer kit
Chain	KMC X10
Wheels
Front Hub	Novatec 15×110
Rear Hub	Novatec 12×148
Rims	WTB ST i35 TCS
Tires	Maxxis Rekon+ 27.5×2.8 60tpi
※バイクの仕様は変更される場合があります

Frameset
Frame	100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated

Fork	100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated

Seatpost Clamp	Surly Stainless 30.0

Components
Headset	Cane Creek

Brakes	Avid BB5

Brake Levers	Tektro FR5

Rotors	160F/160R

Shifters	Microshift SL-M9605 Trail Pro

Stem	Kalloy 31.8

Handlebar	Salsa Bend

Grip/Tape	Velo Black

Saddle	WTB Volt

Seatpost	ProMax 27.2×300


Drivetrain
Crankset	SRAM NX 32t

Bottom Bracket	SRAM Powerspline

Front Derailleur	N/A

Rear Derailleur	Microshift RD-M6205 with Clutch

Cog or cogset	OE 10-spd 11-48t

Chain	KMC X10

Wheels
Front Hub	Novatec 9×100 QR, 6-bolt disc

Rear Hub	Novatec 12×142 QR, 6-bolt disc

Rims	WTB i29

Tires	Surly ExtraTerrestrial 29×2.5″ 60tpi, Tubeless Ready

※バイクの仕様は変更されることがあります。

[1] タイヤとリムの組み合わせにより、クリアランスは異なります。
[2] ドライブトレインの構成によっては、タイヤクリアランスがフレームではなくチェーンによって制限される場合があります。
[3] 記載されているチェーンリングのクリアランスは最悪のケースを想定したものです。部品や構成によってクリアランスは大きく異なります。
[4] サスペンションフォークの長さは、フルエクステンション時（サグ時ではありません）のものです。
[5] サスペンションフォークのタイヤクリアランスについては、フォークメーカーのウェブサイトを参照してください。

Frame	100% Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork	100% Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Seatpost Clamp	Surly Stainless 33.1
Headset	Cane Creek 40
Brakes	Tektro Mira MD-C400
Brake Levers	AdventX Dual Control Levers
Rotors	Tektro 180/160
Shifters	Microshift SB-M100, AdventX Dual Control Levers
Stem	Promax DA-296, 31.8 or Kalloy AS-007
Handlebar	Salsa Cowchipper 31.8
Grip/Tape	Cork Black
Saddle	WTB Volt 142
Seatpost	TransX YSP15, 30.9, 100mm travel
Crankset	Samox 2PCS Boost 32t
Bottom Bracket	Samox BSA 24
Front Derailleur	N/A
Rear Derailleur	Microshift M6205
Cog or cogset	Microshift 11-48t
Chain	KMC X10 Econo Black or NP/BLK
Front Hub	Novatec 15x110mm, 32h
Rear Hub	Novatec 12x148mm, 32h
Rims	WTB ST i40 TCS
Tires	Teravail Ehline, 27.5 x 2.5″, 60tpi

Frame	Surly Bridge Club
Fork	Surly Bridge Club
Seat Post Clamp	Surly Stainless 30.0
Headset	Cane Creek
Brakes	Tektro Hydro HD-M275/276
Rotors	160F/160R
Shifter	Shimano Deore SL-M5100-R
Stem	Promax, 31.8mm
Handlebar	Salsa Bend
Grip/Tape	Velo Black
Saddle	WTB Volt
Seatpost	Promax, 27.2mm
Crankset	Shimano Deore FC-M100, 32t
Front Derailleur	N/A
Rear Derailleur	Shimano Deore RD-M5100, Shadow Plus
Cog or cogset	Shimano Deore 11-speed, 11-51t
Chain	KMC X11
Front Hub	Novatec 9×100, 6-bolt disc
Rear Hub	Novatec 10×141, 6-bolt disc, 11-spd
Rims	WTB ST i29 TCS
Tires	WTB Trail Boss 27.5 x 2.4″, 27tpi, Tubeless Ready

Frame	Surly Ice Cream Truck, 100% Surly 4130 Chromoly steel.
Fork	Surly Ice Cream Truck, 1-1/8″ straight steerer with tapered straight blade.
Seatpost Clamp	Stainless 33.1 collar, Black
Headset	Cane Creek
Brakes	SRAM DB Level TL Hydraulic or Tektro Gemini Hydraulic
Rotors	180F/160R
Shifter	Shimano SLX SL-M7100
Stem	Kalloy 31.8
Handlebar	Salsa Rustler 31.8
Saddle	Selle Italia
Seatpost	Kalloy 30.9mm
Crankset	Race Face Aeffect or Ride, 30t
Bottom Bracket	Race Face
Front Derailleur	N/A
Rear Derailleur	Shimano SLX RD-M7100 12-Speed
Cog or cogset	Shimano SLX 10-51t, 12-speed
Chain	KMC X12
Front Hub	Novatec 150x15mm
Rear Hub	OE 197x12mm, Shimano Microspline
Rims	Surly My Other Brother Daryl Rims, 32h
Tires	Surly Bud & Lou, 26 x 4.8″, 120tpi, tubeless ready

Frame Construction	4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated
Fork Construction	4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
Rear Dropout Configuration	Horizontal slotted with optional vertical dumpout
Rear Hub Spacing	12 x 197mm (Surly axle included)10 x 190mm with Surly 10/12 Adapter Washers (not included)
Front Hub Spacing	15 x 150mm (Surly axle included)
Rear Brake	Disc – 51mm I.S. (203mm max rotor)
Front Brake	Disc – 51mm I.S. (203mm max rotor)
Head Tube	Ø44mm
Steerer Tube	Ø28.6mm (1-1/8″)
Crown Race	Ø30mm (1-1/8″)
Stock Headset Upper (S.H.I.S.)	ZS44/28.6
Stock Headset Lower (S.H.I.S.)	EC44/30
Seat Collar	Ø33.1mm
Seatpost	Ø30.9mm
Front Derailleur (Clamp)	High direct mount top-pull (Ø34.9mm) 55mm offset adapter (not included)
Max Chainring (CL)[3]	1x (Fat bike 190): 34T [6]2x (Surly OD): 22/36T
Bottom Bracket	100mm threaded (1.37″ x 24TPI)
Tire Clearance Frame [1]/[2]	26 x 5.1″ (rear axle position),26 x 4.8″ (front axle position),29 x 3.0″
Tire Clearance Fork [1]	26 x 5.25″, 29 x 3.0″
Rigid Fork Spec	483 x 47mm
Max Suspension Fork Length [4]	571 x 51mm (Fatbike 140mm)
Bottle Mounts Frame	1 Standard (XS – M), 2 Standard (L – XXL)
Bottle Mounts Fork	2 Three-Pack
Rack Mounts Frame	Yes (upper and lower threaded)
Rack Mounts Fork	Yes (upper, lower, and mid-blade threaded)
Fender Mounts Frame	Yes
Fender Mounts Fork	N/A
Other Features	Internal dropper post routing compatible

Frame	Surly Preamble, 100% Chromoly steel tubing, E.D. coated
Fork	Surly Preamble, 100% Chromoly steel fork, Disc Only
Seatpost Clamp	Surly Stainless 30.0
Components
Headset	VP 1-1/8″ Threadless
Brakes	Avid BB5 Mechanical
Brake levers	Avid FR-5
Rotors	SRAM 160mm F/R
Shifters	microSHIFT Acolyte Xpress
Stem	Kalloy 31.8
Handlebar	Kalloy, 35mm rise, 9-degree backsweep
Grip/Tape	Black Rubber
Saddle	Selle Italia X-Base
Seatpost	Kalloy 27.2 x 300mm
Drivetrain
Crankset	Samox, 3-piece, 40t
Bottom Bracket	JIS 68 x 124.5mm
Front derailleur	N/A
Rear derailleur	microSHIFT RD-M5185M
Cog or cogset	microSHIFT 12-42t, 8-speed
Chain	KMC Z8.3
Wheels
Front hub	Novatec, 6-bolt disc, 32h, QR
Rear hub	Novatec, 6-bolt disc, 32h, QR
Rims	21mm, 32h
Tires	Kenda Kwik Tendril 700c x 35mm (MD/LG/XL) & Kenda Standard 650b x 1.35 (XS/SM)

※バイクの仕様は変更されることがあります。

Frameset
Sizes	26″ wheel 42–56cm, 700c wheel 56–64cm
Frame	Surly Long Haul Trucker, 100% Surly 4130 CroMoly steel.
Fork	Surly Long Haul Trucker, 4130 CroMoly, lugged and brazed.
Seatpost Clamp	Surly Stainless, 30.0mm (Surly stainless included)

Components
Headset	Cane Creek 40, 1-1/8″
Brakes	TRP Spyre C, 160mm rotors
Brake Levers	Shimano Sora
Shifters	Shimano Sora 3×9
Stem	Promax 31.8 4 bolt
Handlebar	Surly Truckstop Bar
Grip/Tape	Black Cork
Saddle	WTB Volt Sport
Seatpost	ProMax 27.2 350L non-offset (42-50), offset (52-64)

Drivetrain
Crankset	Shimano Alivio 48x36x26t
Bottom Bracket	Shimano SM-BB52
Front Derailleur	Shimano Sora R3030
Rear Derailleur	Shimano Alivio M4000 SGS
Cog or Cassette	Shimano Alivio, 11-34t, 9 speed
Chain	KMC X9

Wheels
Front Hub	Novatec 12×100, 6 bolt, 36H
Rear Hub	Novatec 12×142, 6 bolt, 36H
Rims (26″)	Alex Adventurer 2
Rims (700c)	Alex Adventurer 2
Tires (26″) 42–62cm	Surly ExtraTerrestrial 26 x 46
Tires (700c)	Surly ExtraTerrestrial 700 x 41

Axle to Crown Length	483 mm

Brake Mount (Fork)	IS Disc Brake 160mm

Color	Black

Crown Race	30mm

Defined Color	Black

Front Axle	15mm Thru x 110mm

Material	Chromoly Steel

Offset	47 mm

Wheel Mount Center Offset	0mm

S.H.I.S. Stem Clamp Diameter	28.6mm

Steerer Type	Straight

Steerer Tube Length	260 mm

Weight	1180 g

Wheel Size	27.5+, 29+, 29″

Rotor Size (Fork)	180mm

Maximum Tire Clearance (Fork)	84mm

Axle to Crown Length	447 mm

Brake Mount (Fork)	Canti Studs , IS Disc Brake 160mm

Color	Black

Crown Race	30mm

Defined Color	Black

Front Axle	9mm x 100mm

Material	Chromoly Steel

Offset	43 mm

Wheel Mount Center Offset	0 mm

S.H.I.S. Stem Clamp Diameter	28.6 mm

Steerer Type	Straight

Steerer Tube Length	285 mm

Weight	1240 g

Wheel Size	29″ , 27.5+

Rotor Size (Fork)	180 mm

Maximum Tire Clearance (Fork)	27.5 x 3″, 29 x 2.5″

Axle to Crown Length	468 mm

Brake Mount (Fork)	IS Disc Brake 160 mm

Color	Black

Crown Race	30 mm

Defined Color	Black

Front Axle	9mm x 100mm

Material	Chromoly Steel

Offset	47 mm

S.H.I.S. Stem Clamp Diameter	28.6 mm

Steerer Type	Straight

Steerer Tube Length	260 mm

Weight	1406 g

Wheel Size	29+

Rotor Size (Fork)	160 mm

Maximum Tire Clearance (Fork)	3″

Axle to Crown Length	420 mm

Brake Mount (Fork)	IS Disc Brake 160 mm , Canti Studs

Color	Black

Crown Race	30 mm

Defined Color	Black

Front Axle	9mm x 100mm

Material	Chromoly Steel

Offset	40 mm

S.H.I.S. Stem Clamp Diameter	28.6 mm

Steerer Type	Straight

Steerer Tube Length	310 mm

Weight	1192 g

Wheel Size	26″

Rotor Size (Fork)	180 mm

Maximum Tire Clearance (Fork)	3″

Axle to Crown Length	376 mm

Brake Mount (Fork)	Canti Studs

Color	Black

Crown Race	30mm

Defined Color	Black

Front Axle	9mm QR x 100mm

Material	Chromoly Steel

Offset	45 mm

S.H.I.S. Stem Clamp Diameter	28.6mm

Steerer Type	Straight

Steerer Tube Length	400 mm

Weight	970 g

Wheel Size	26″

Maximum Tire Clearance (Fork)	2.1″

Axle to Crown Length	390 mm

Brake Mount (Fork)	Canti Studs

Color	Black

Crown Race	30mm

Defined Color	Black

Front Axle	9mm QR x 100mm

Material	Chromoly Steel

Offset	45 mm

S.H.I.S. Stem Clamp Diameter	28.6mm

Steerer Type	Straight

Steerer Tube Length	350 mm

Weight	1043 g

Wheel Size	700c

Maximum Tire Clearance (Fork)	45mm

Axle to Crown Length	370 mm

Brake Mount (Fork)	Canti Studs

Color	Black

Crown Race	30mm

Defined Color	Black

Front Axle	9mm QR x 100mm

Material	Chromoly Steel

Offset	44 mm

S.H.I.S. Stem Clamp Diameter	28.6mm

Steerer Type	Straight

Steerer Tube Length	350 mm

Weight	1150 g

Wheel Size	26″

Maximum Tire Clearance (Fork)	26 x 2.0″

Axle to Crown Length	380 mm

Brake Mount (Fork)	IS Disc Brake 160mm

Color	Black

Crown Race	30mm

Defined Color	Black

Front Axle	9mm QR x 100mm

Material	Chromoly Steel

Offset	44 mm

S.H.I.S. Stem Clamp Diameter	28.6mm

Steerer Type	Straight

Steerer Tube Length	360 mm

Weight	1134 g

Wheel Size	650b

Rotor Size (Fork)	160mm

Maximum Tire Clearance (Fork)	50mm

Axle to Crown Length	375 mm

Brake Mount (Fork)	Mid Reach Caliper (47mm – 57mm)

Color	Black

Crown Race	30mm

Defined Color	Black

Front Axle	9mm QR x 100mm

Material	Chromoly Steel

Offset	38 mm

S.H.I.S. Stem Clamp Diameter	28.6mm

Steerer Type	Straight

Steerer Tube Length (mm)	300 mm

Weight	848 g

Wheel Size	700c

Maximum Tire Clearance (Fork)	38mm

Bar Clamp Diameter	31.8 mm
Bar Drop	115 mm
Bar Reach	74 mm
Rise	30 mm
Sweep Angle	12 degrees
Bar Top Style	Round
Color	E.D. CoatedBlack
Material	Aluminum
Width	42, 45, 48 cm

Back Sweep	34 °
Bar Clamp Diameter	31.8 mm
Color	Silver, Black
Weight	400 g
Lever Compatability	Mountain 22.2 mm
Material	Aluminum
Rise	40 mm
Width	735 mm

Color	Black
Defined Color	Black
Intended Use	Touring-Hybrid , Gravel
ISO Diameter	559 / 26″ mtn
ISO Width	46 mm
Labeled Size	26 x 46
Tire Bead	Folding
Tire Diameter	26″
Tire Type	Tubeless Ready Clincher
Weight	890g
TPI	60
Flat Protection	Tread and Sidewall

FOLLOW US新商品やイベントなど最新情報をチェック！

Maximum Wheel Size	29+
Requires Eyelets	Yes
Disc Brake Compatible	Yes
Color	Black
Weight Limit	30kg
Weight	1606 g
Tube Diameter	10mm
Platform Dimensions	35 x 15cm
Material	4130 CroMoly

Maximum Wheel Size	26″ Fatbike
Requires Eyelets	Yes
Disc Brake Compatible	Yes
Color	Black
Weight Limit	30kg
Weight	1699 g
Tube Diameter	10mm
Platform Dimensions	35 x 20cm
Material:	4130 CroMoly

Weight Limit	13.61 kg
Color	Black
Material	6061-TB Aluminum
Weight	650 g
